Control Valve Lower Body: Components

Apply ATF to all components before installation.

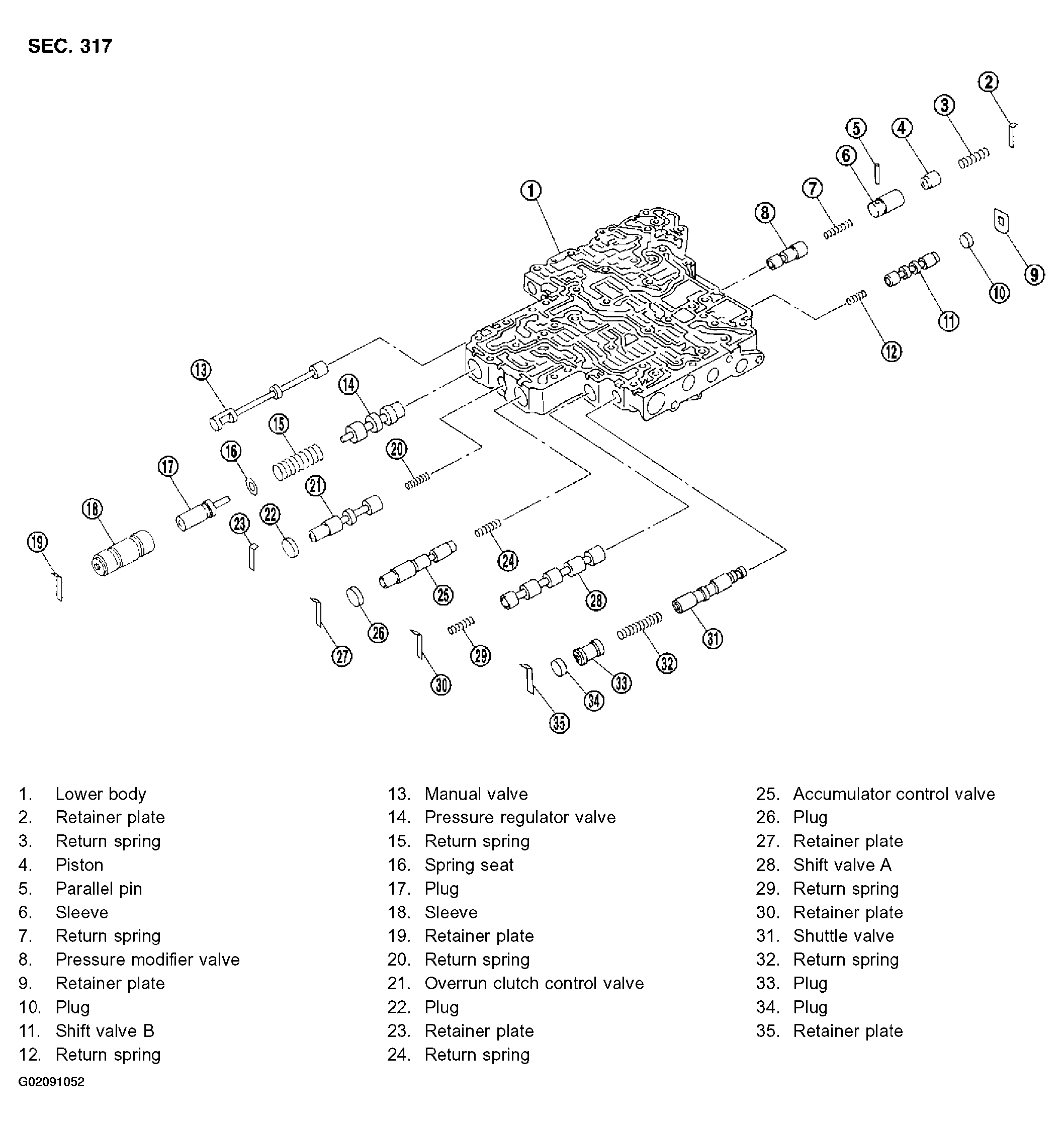

Fig 1: Exploded View Of Control Valve Lower Body Component
G02091052Courtesy of NISSAN MOTOR CO., U.S.A.
