Control Valve Assembly: Components

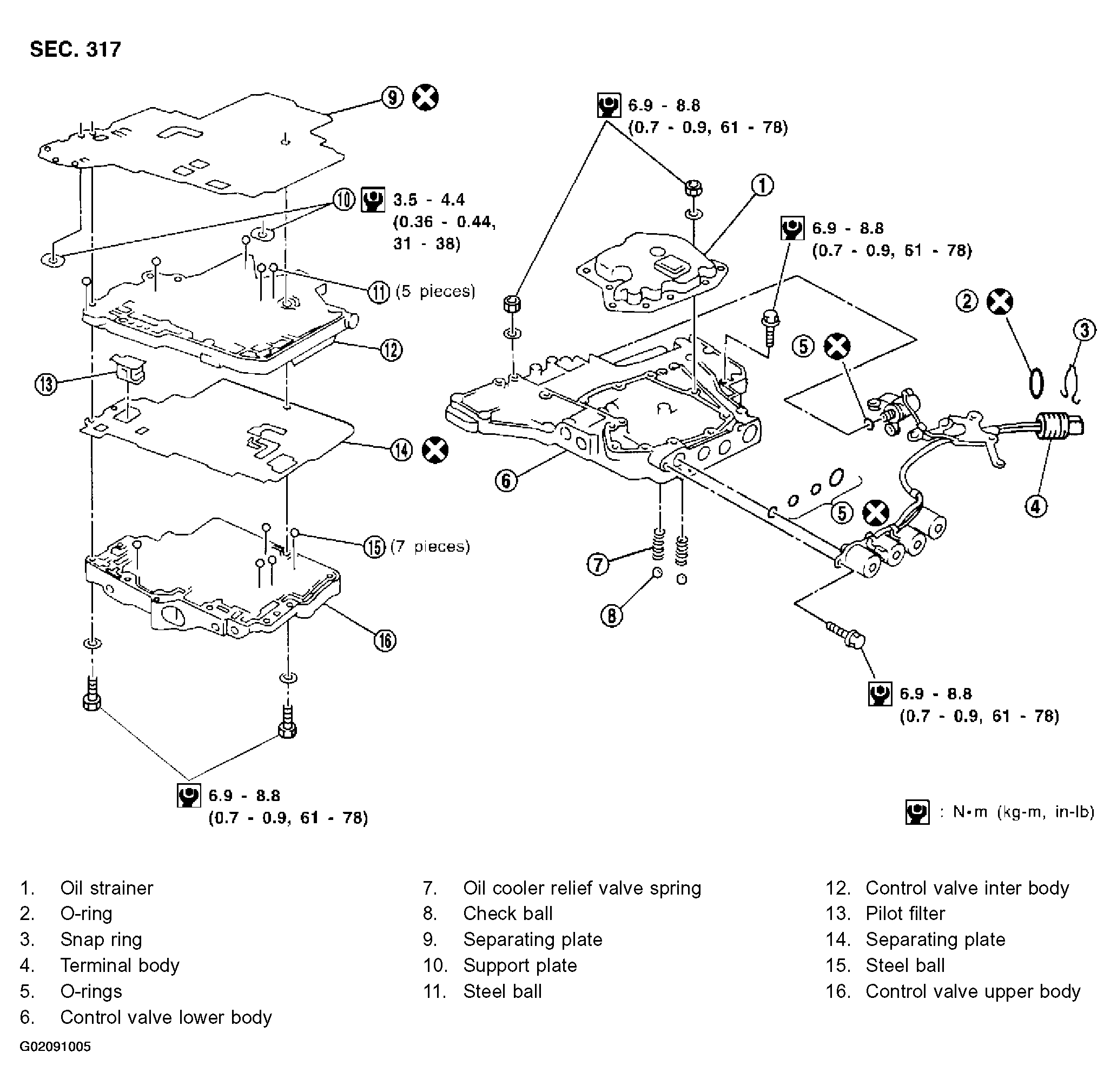

Fig 1: Exploded View Of Control Valve Assembly Components
G02091005Courtesy of NISSAN MOTOR CO., U.S.A.
