D Position

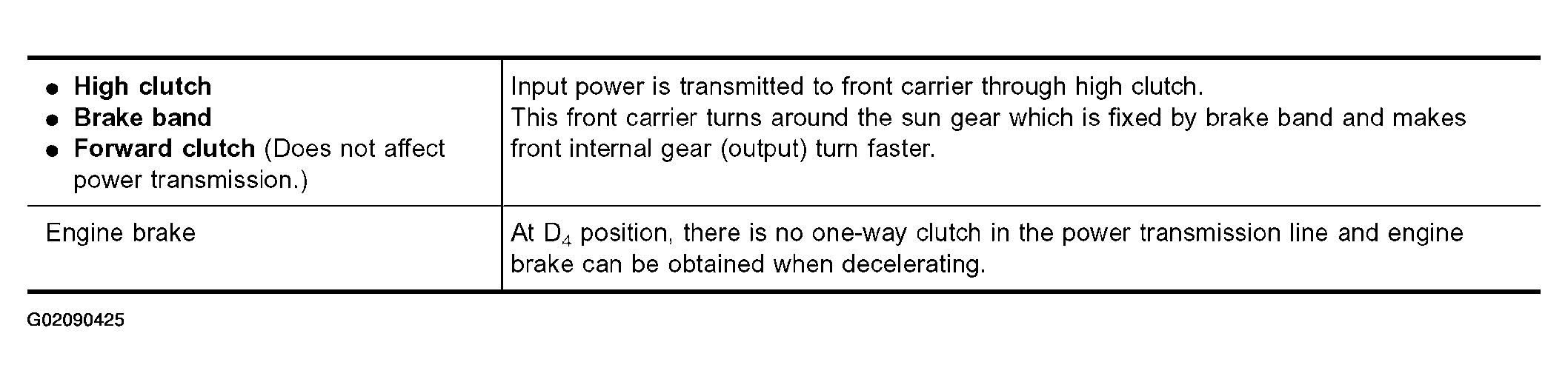

Fig 1: Identifying D4 Position Table
G02090425Courtesy of NISSAN MOTOR CO., U.S.A.

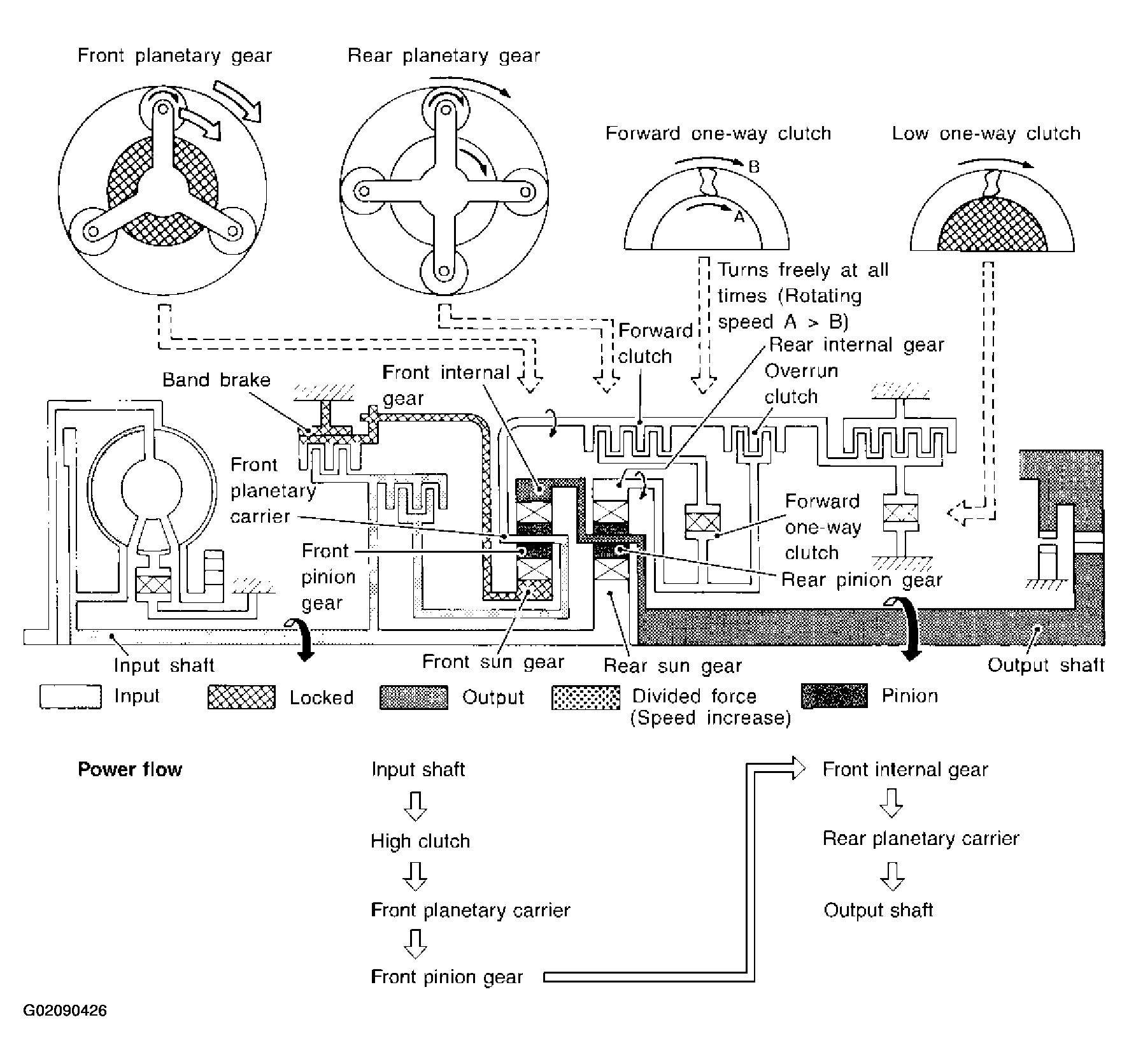

Fig 2: Identifying D4 Position Assembly
G02090426Courtesy of NISSAN MOTOR CO., U.S.A.
