Engine Control Harness

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

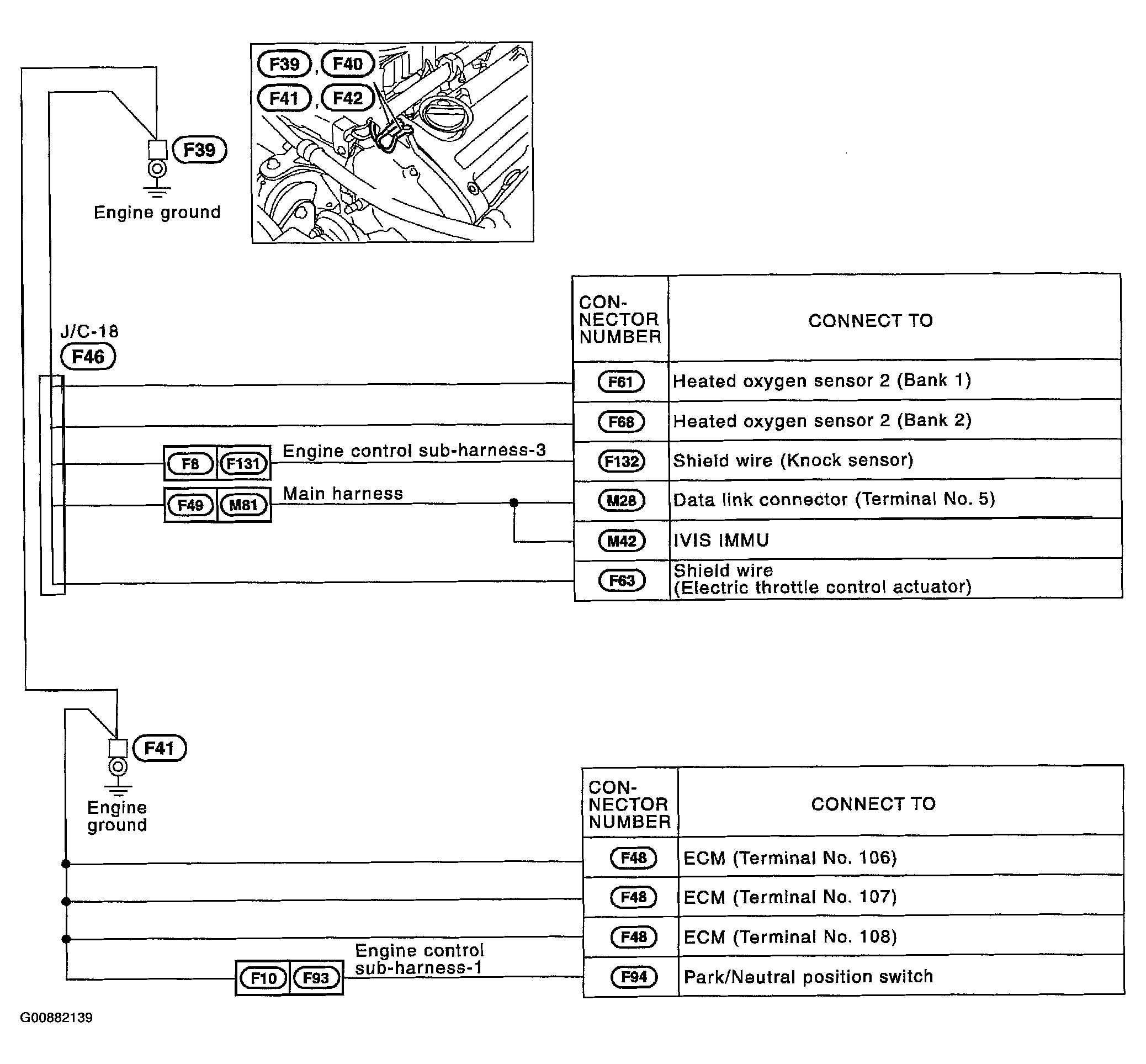

Fig 1: Identifying Engine Control Harness Connectors Ground Distribution Points (1 of 2)
G00882139Courtesy of NISSAN MOTOR CO., U.S.A.

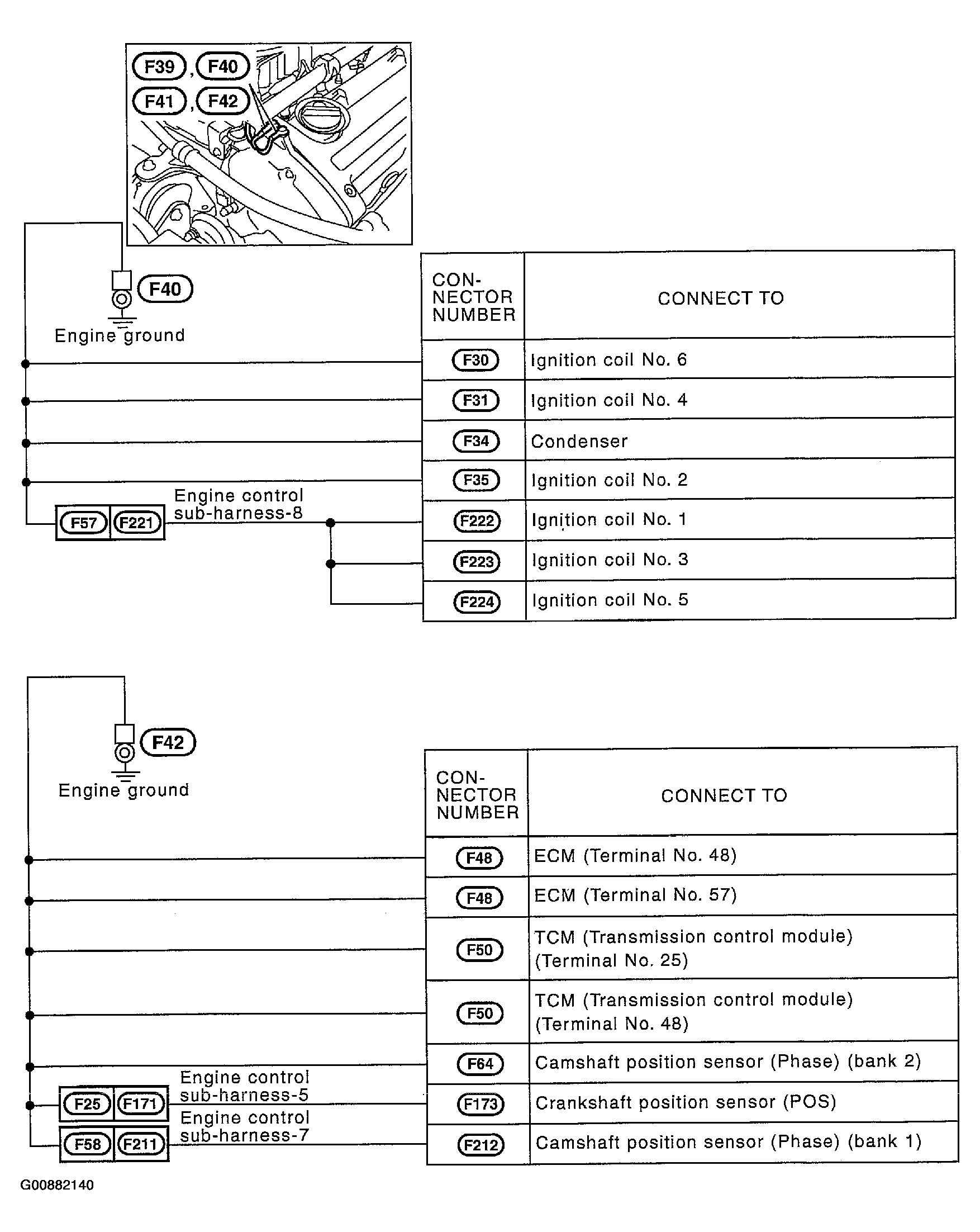

Fig 2: Identifying Engine Control Harness Connectors Ground Distribution Points (2 of 2)
G00882140Courtesy of NISSAN MOTOR CO., U.S.A.
