Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Engine Lubrication System
>>
Service Data And Specifications (SDS)
>>
Oil Pump
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Oil Pump

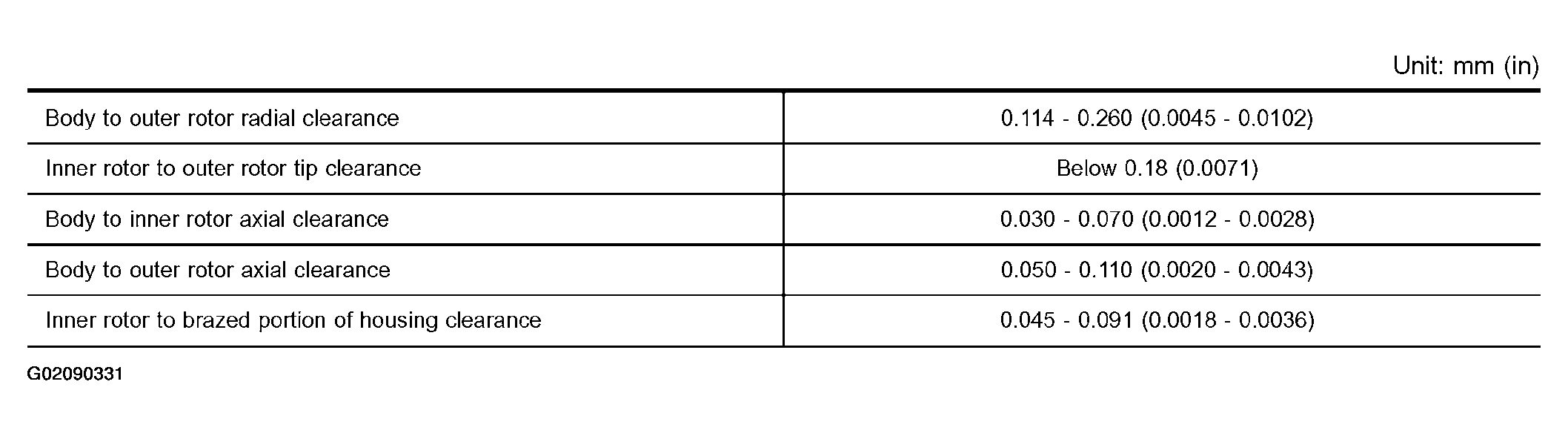

Fig 1: Oil Pump Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
