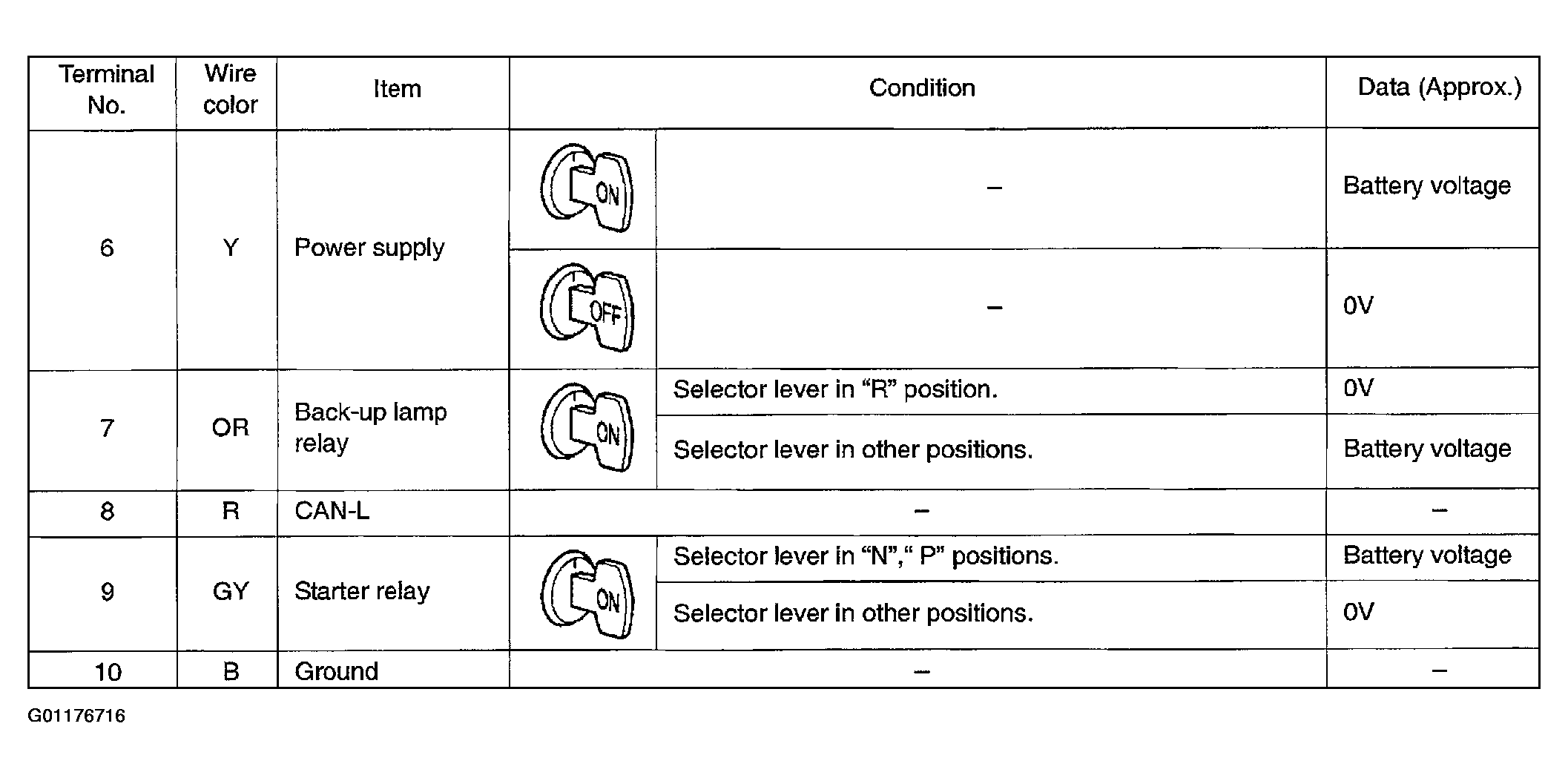

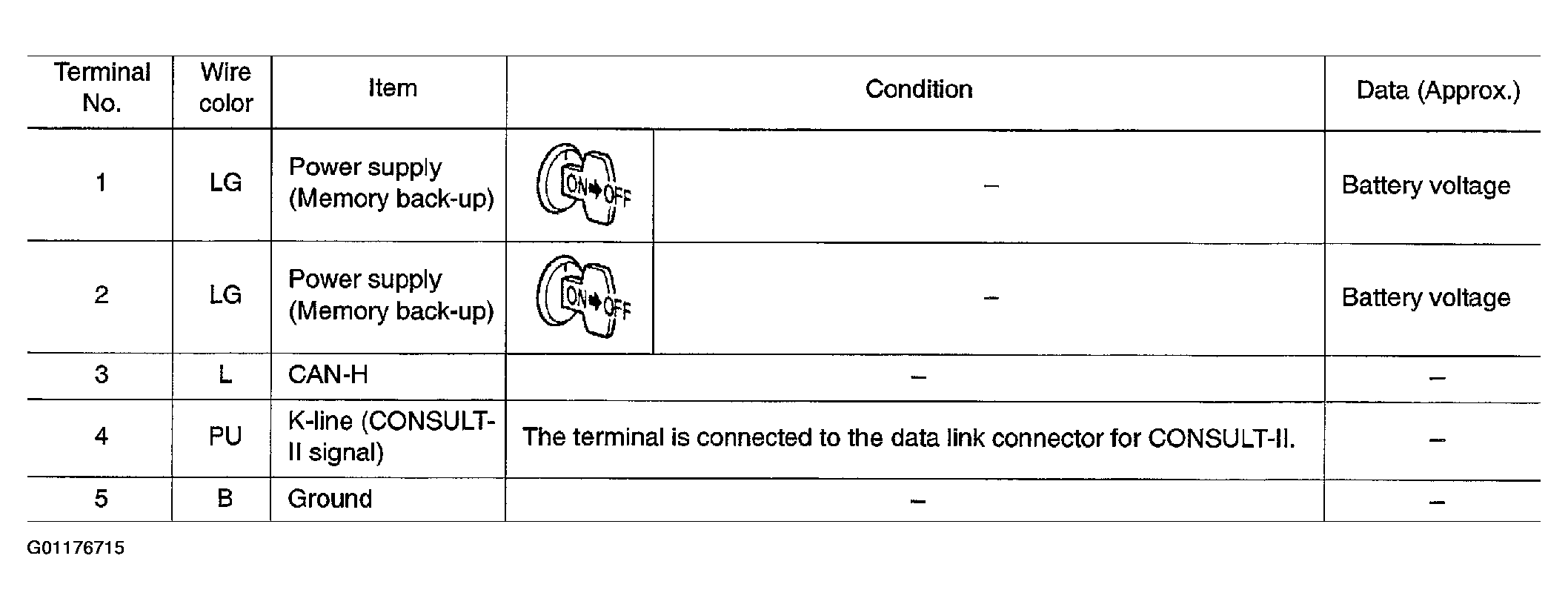

TCM Inspection Table
Data are reference values and are measured between each terminal and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
