Control Device Removal & Installation: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Remove knob cover below select lever downward.
  3. Pull lock pin out of select lever knob.

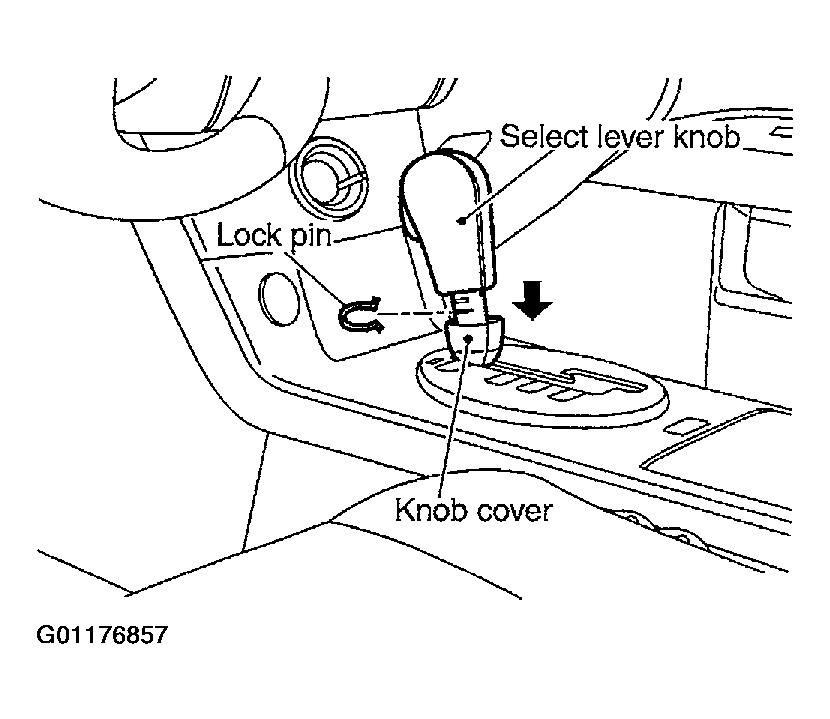

    Fig 1: Pulling Lock Pin Out Of Select Lever Knob
    G01176857Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove select lever knob.
  5. Remove console finisher.
    • Refer to INSTRUMENT PANEL ASSEMBLY .
  6. Remove center console.
    • Refer to INSTRUMENT PANEL ASSEMBLY .
  7. Remove key interlock cable from control device.
  8. Disconnect A/T device harness connector.
  9. Remove control device assembly.
CAUTION: Do not impact, or damage propeller shaft tube.
