Control Device Removal & Installation: Notes

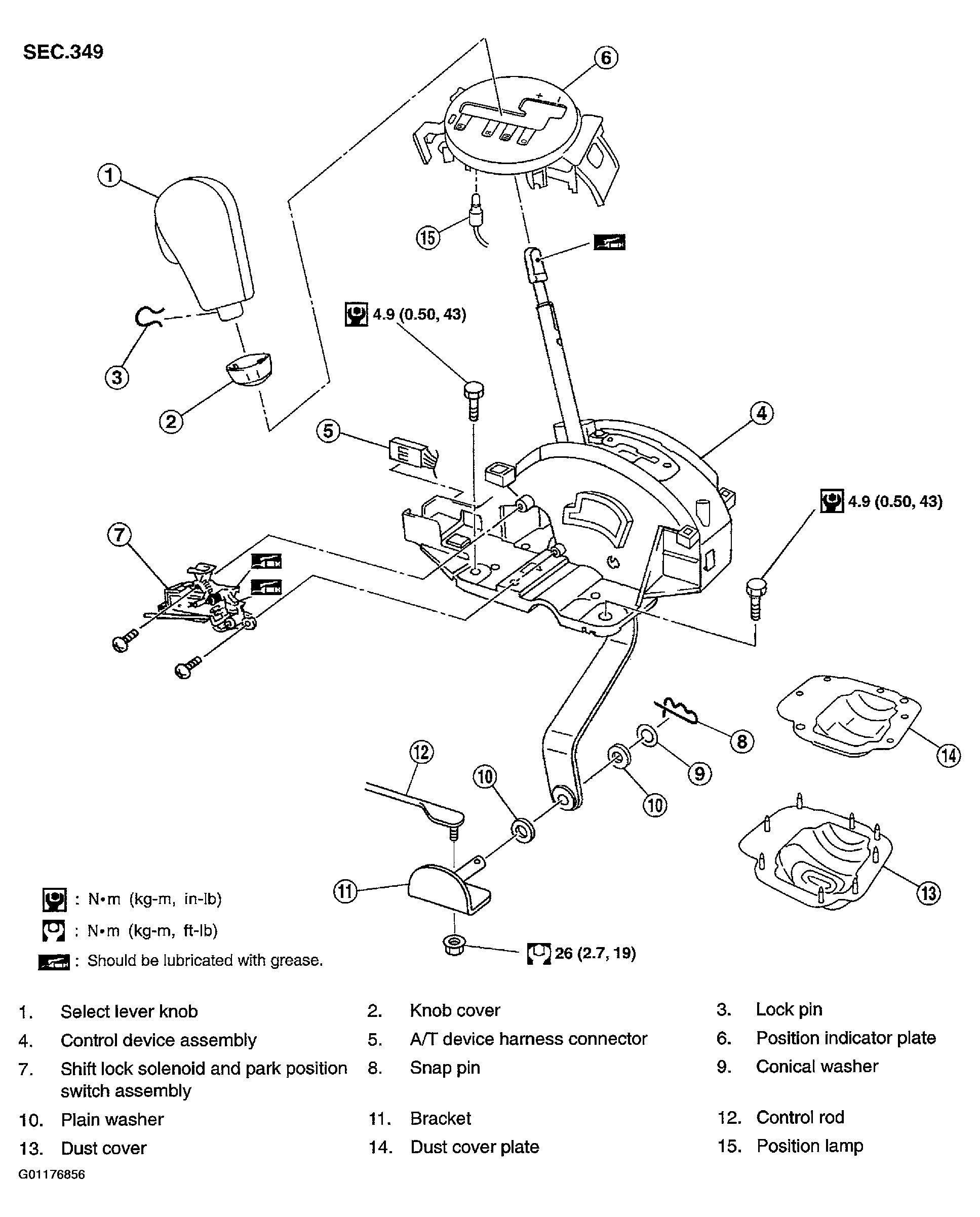

Fig 1: Exploded View Of Control Device
G01176856Courtesy of NISSAN MOTOR CO., U.S.A.
