Key Interlock Cable: Removal
Unlock slider by squeezing lock tabs on slider from adjuster holder.
Remove casing cap from bracket of control device and remove interlock rod from cable.

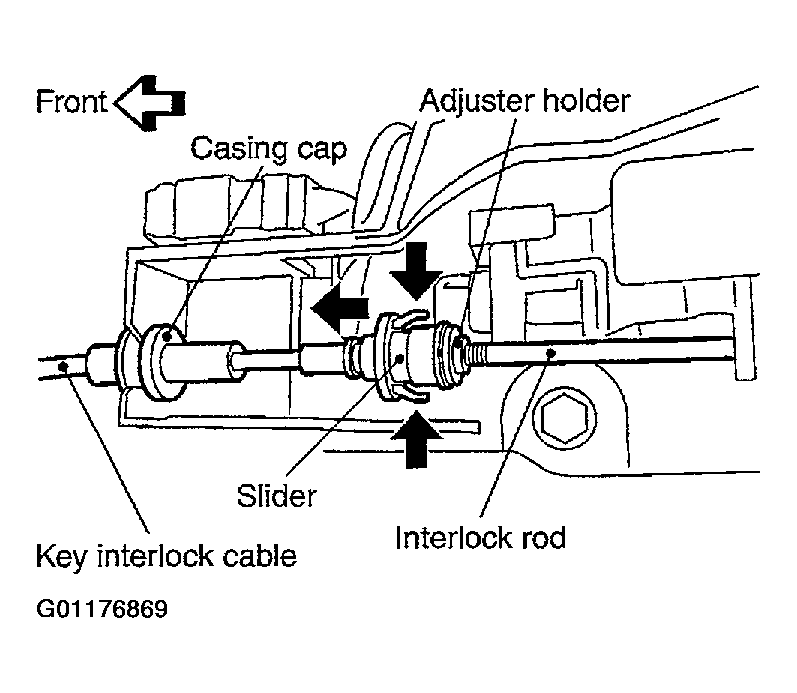

Fig 1: Removing Interlock Rod From Cable
Courtesy of NISSAN MOTOR CO., U.S.A.

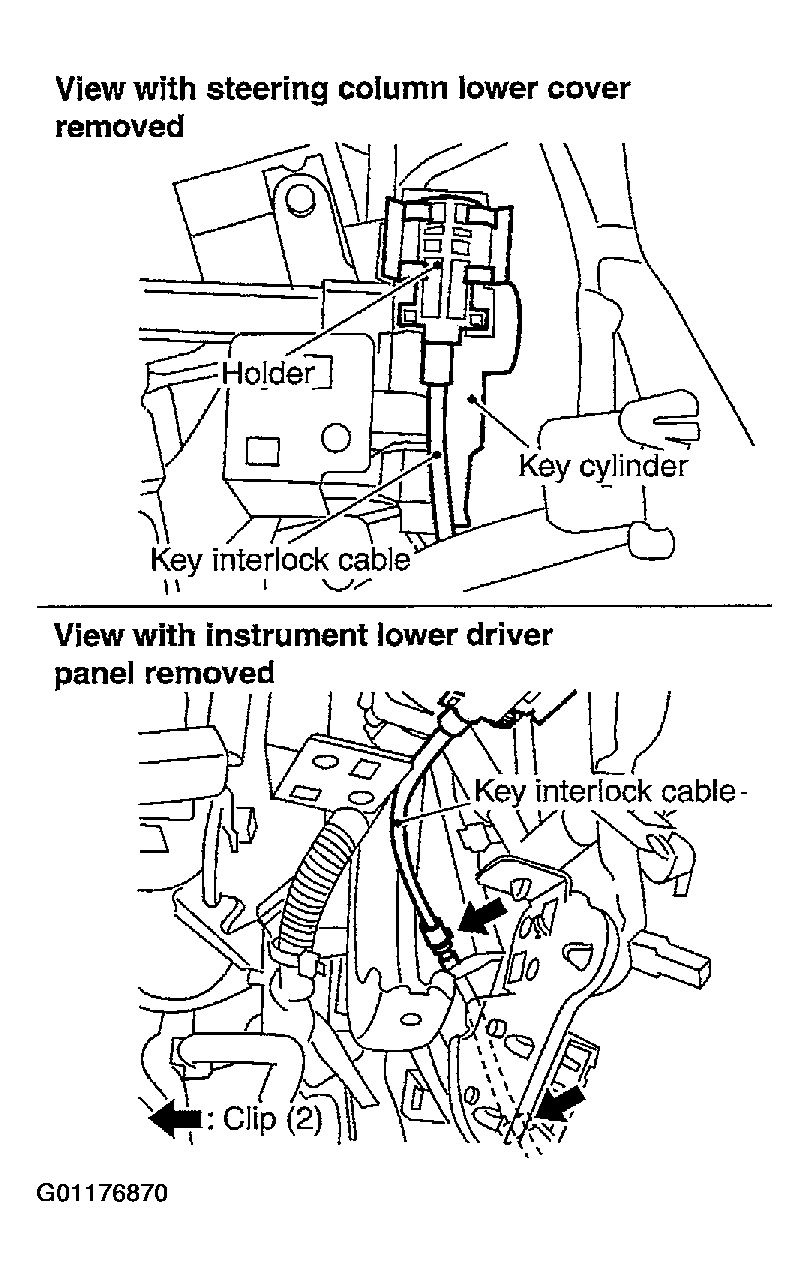

Remove holder from key cylinder and remove key interlock cable.
