Key Interlock Cable: Installation

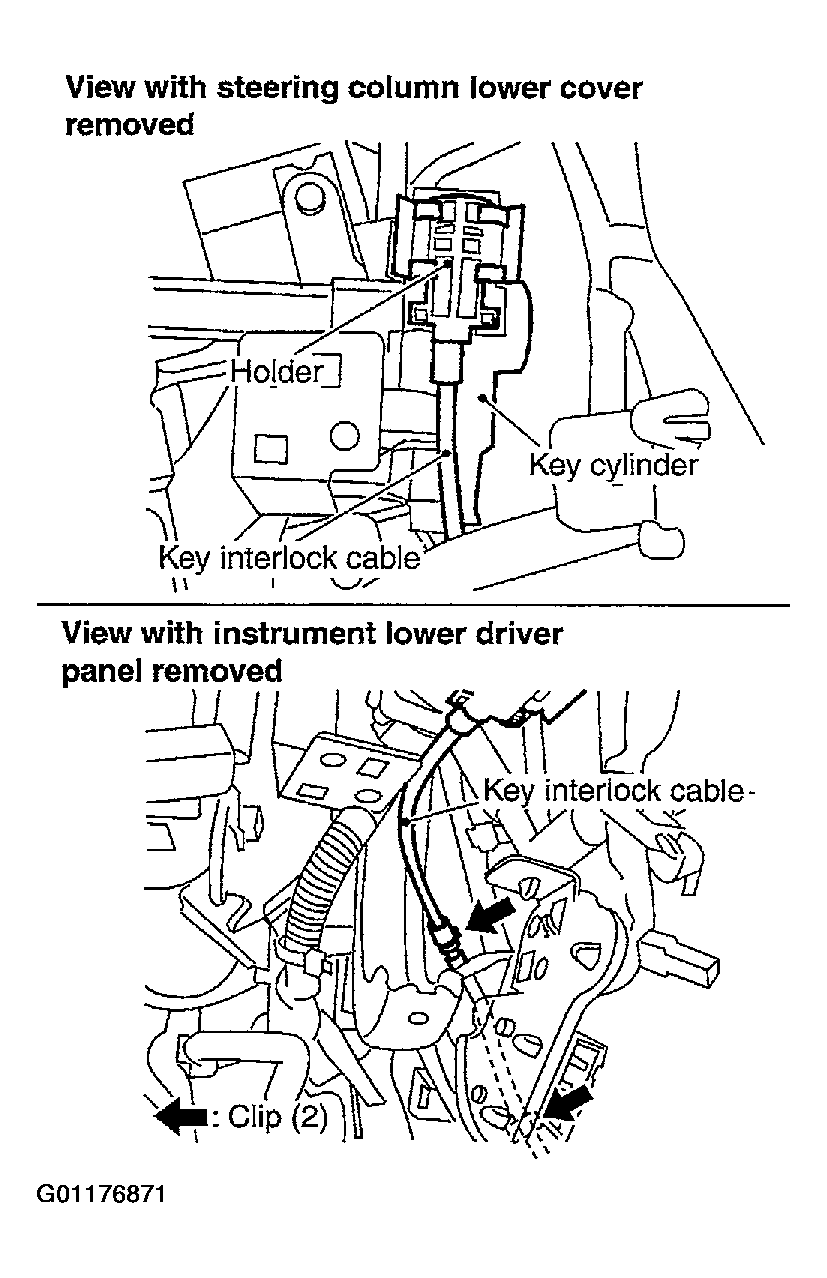

- Set key interlock cable to key cylinder and install holder.
- Clamp cable and fix to control cable with band.
- Turn ignition key to lock position.
- Set selector lever to P position.
Courtesy of NISSAN MOTOR CO., U.S.A.

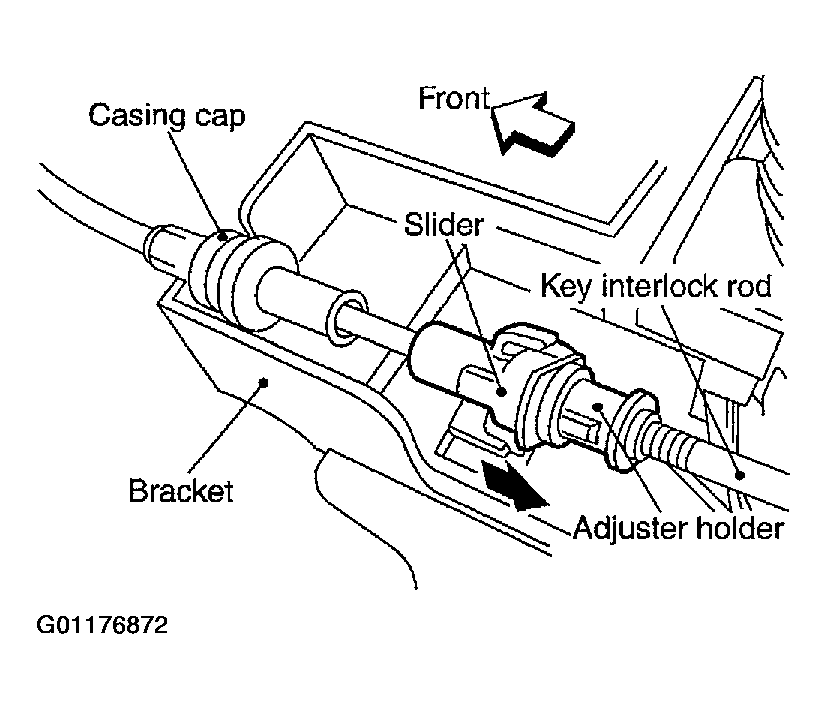

- Insert interlock rod into adjuster holder.
- Install casing cap to bracket.
- Move slider in order to fix adjuster holder to interlock rod.
Courtesy of NISSAN MOTOR CO., U.S.A.
