Automatic Transaxle - Diagnosis, Removal & Installation
>>
A/T Control System
>>
TCM Function
>>
Control System Diagram
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Control System Diagram

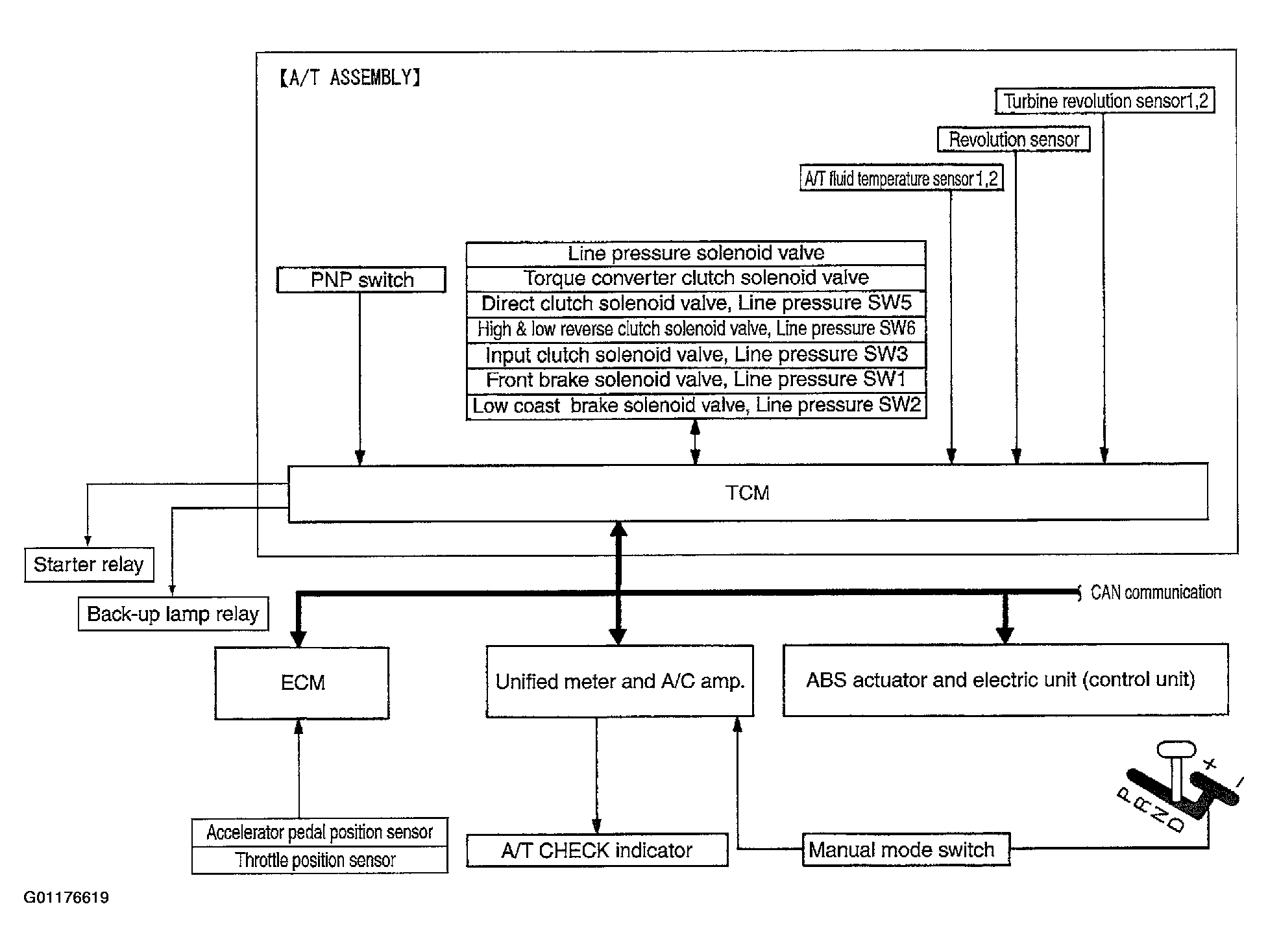

Fig 1: Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
