During Shift Change

The necessary and adequate line pressure for shift change is set. For this reason, line pressure pattern setting corresponds to input torque and gearshift selection. Also, line pressure characteristic is set according to engine speed, during engine brake operation.

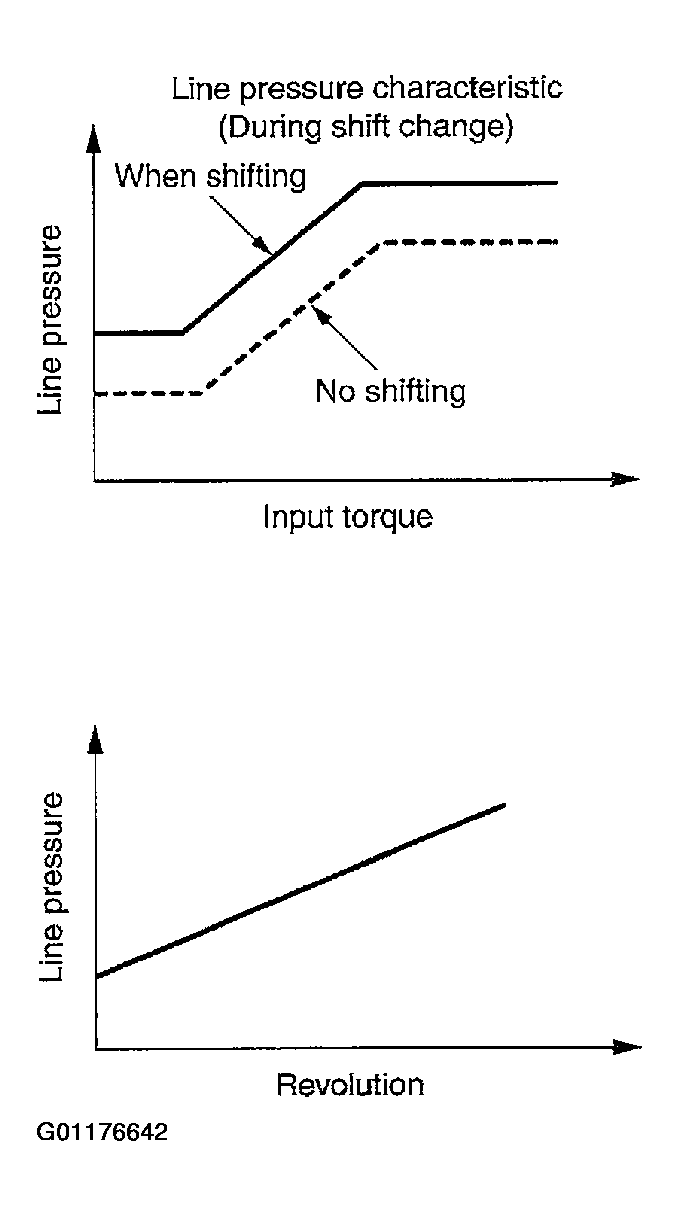

Fig 1: Line Pressure Characteristics - During Shift Change
G01176642Courtesy of NISSAN MOTOR CO., U.S.A.
