Transfer Assembly: Components

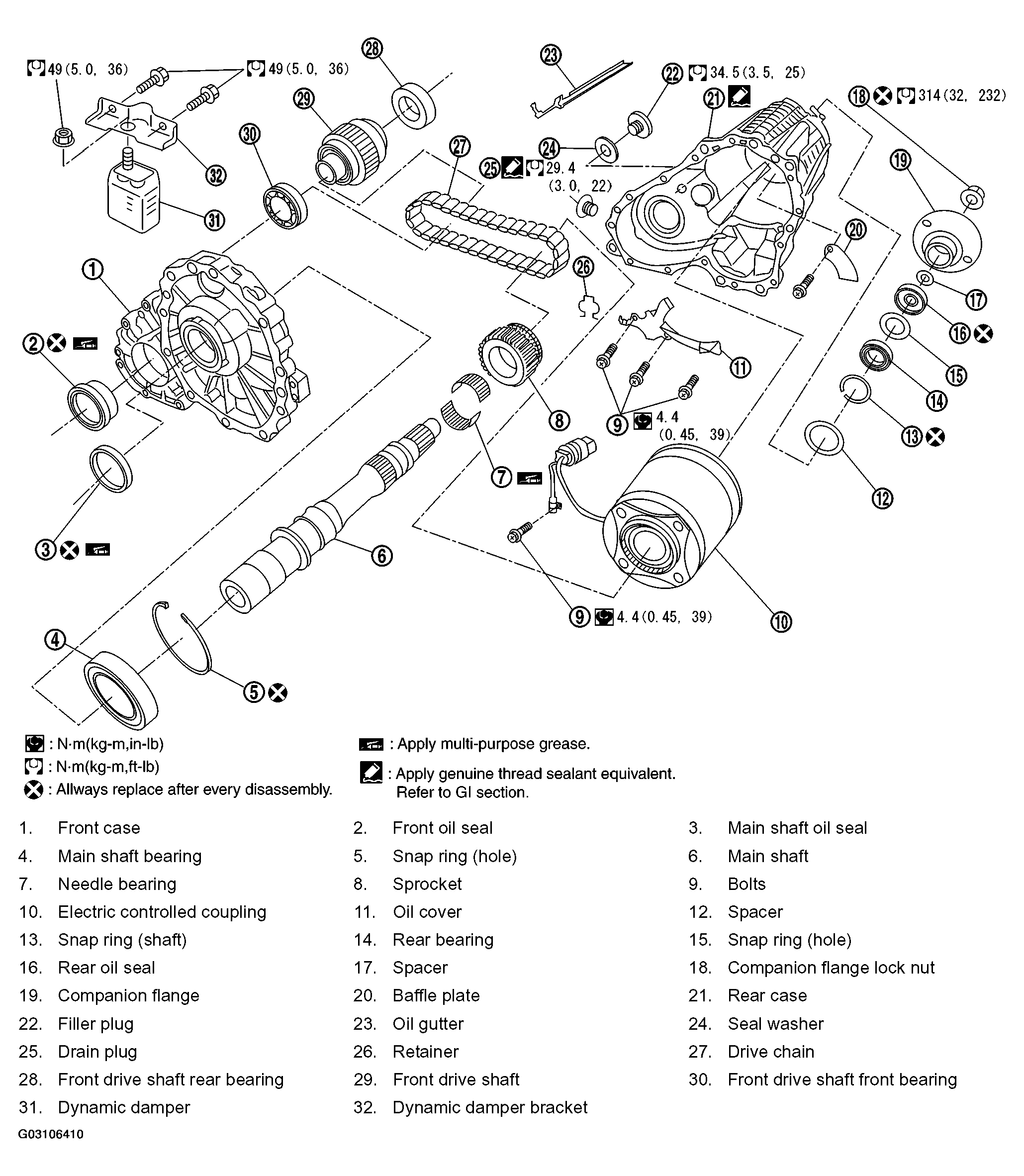

Fig 1: Exploded View Of Transfer Assembly Components
G03106410Courtesy of NISSAN MOTOR CO., U.S.A.
