System Diagram

Models without automatic drive positioner

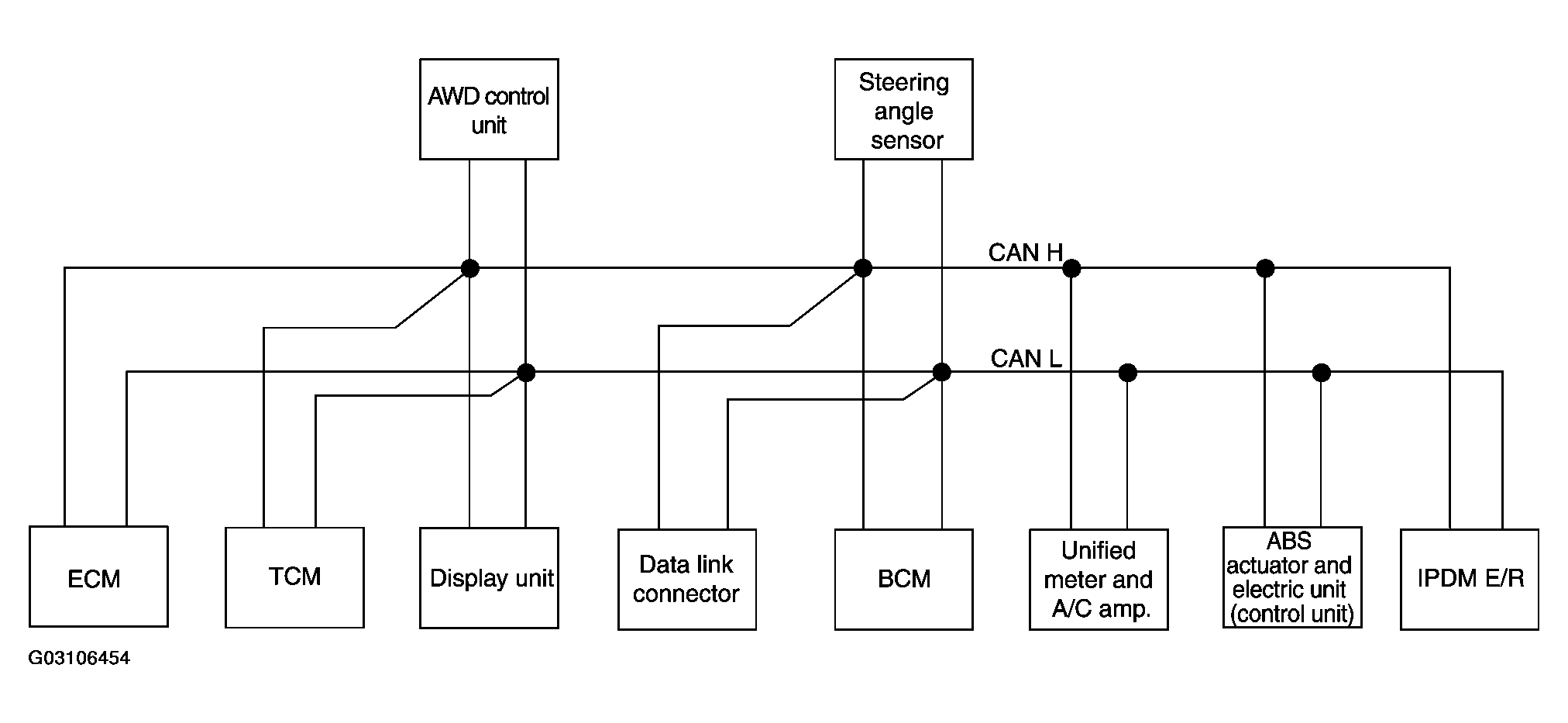

Fig 1: Identifying Can Communication Unit Without ICC (Without Automatic Drive Positioner)
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with automatic drive positioner

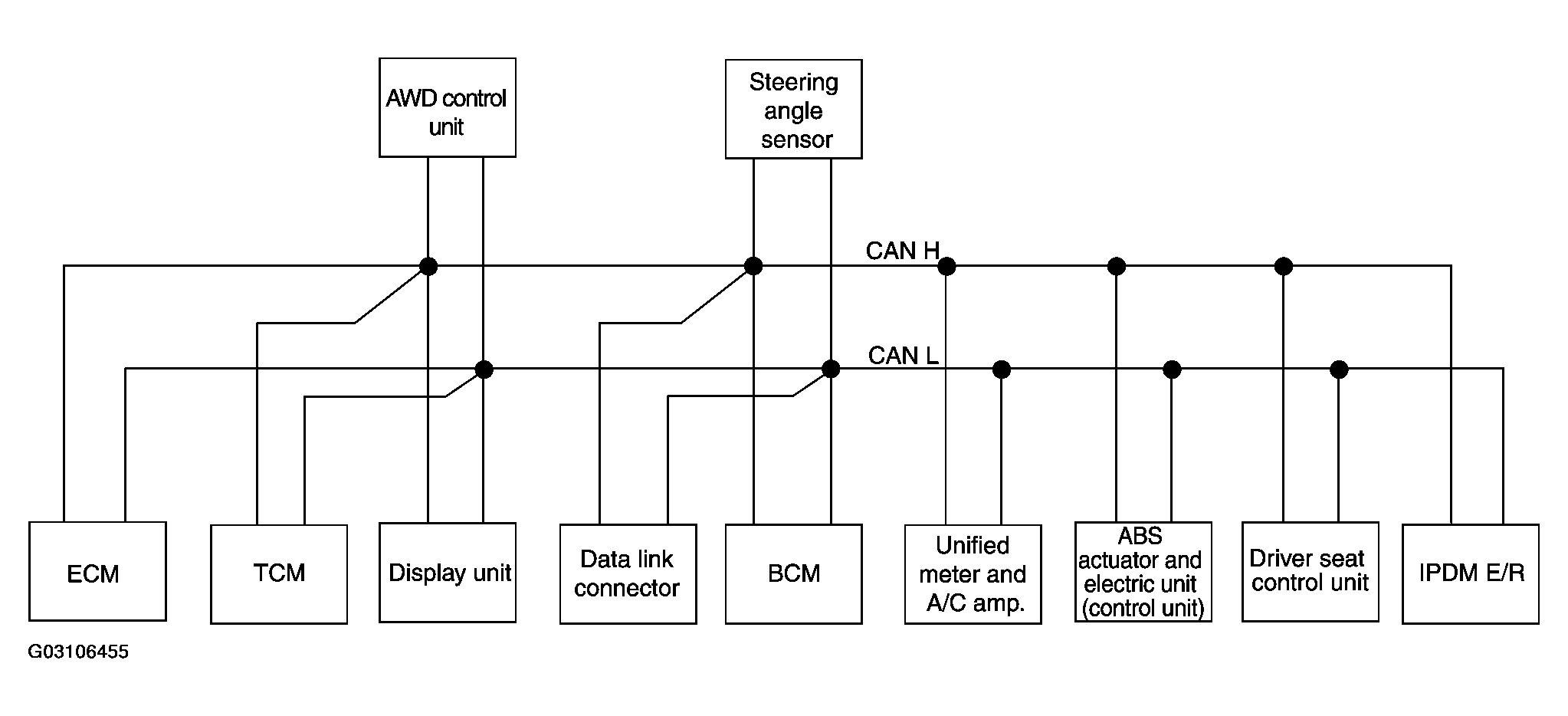

Fig 2: Identifying Can Communication Unit Without ICC (With Automatic Drive Positioner)
Courtesy of NISSAN MOTOR CO., U.S.A.
