Shift Control Device: Removal
- Disconnect lower lever of control device and control rod.

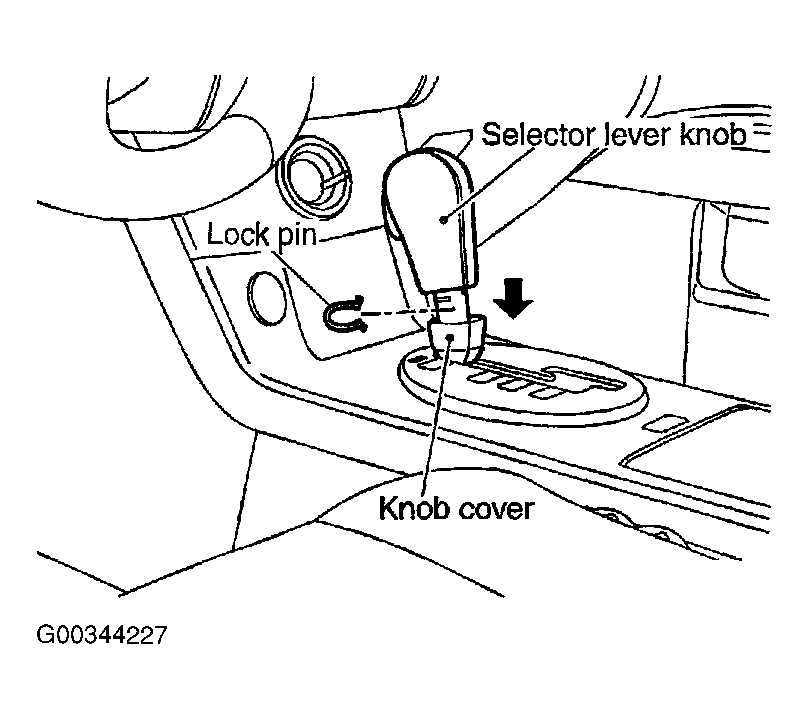

- Remove knob cover below selector lever knob downward.
- Pull lock pin out of selector lever knob.
- Remove selector lever knob.
- Remove console finisher.
- Refer to COMPONENT PARTS DRAWING
.
- Remove center console.
- Refer to COMPONENT PARTS DRAWING
.
- Remove key interlock cable from control device.
- Disconnect A/T device harness connector.
- Remove control device assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
