Tilt Sensor Circuit Inspection

  1. CHECK FUNCTION

    With CONSULT-II

    With "TILT SEN" on the DATA MONITOR, operate the tilt switch to make sure voltage changes.

    CHECKING TILT SENSOR CIRCUIT FUNCTION With CONSULT-II

    Monitor item [OPERATION or UNIT] Contents
    TILT SEN "V" The tilt position (voltage) judged from the tilt sensor signal is displayed.

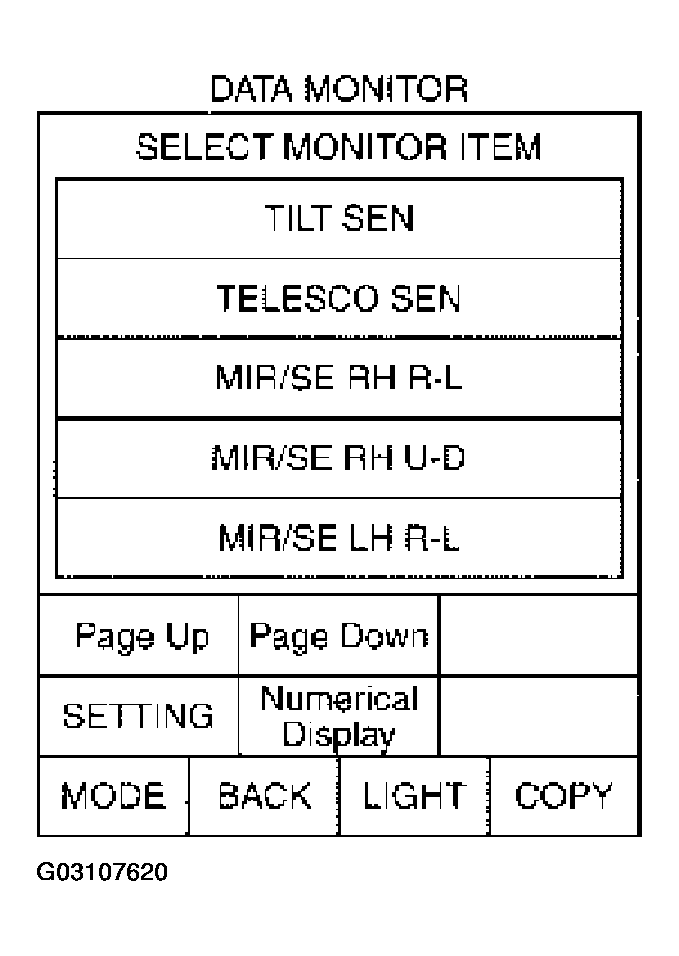

    Fig 1: CONSULT-II Display - TILT SEN On DATA MONITOR
    G03107620Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check voltage between automatic drive positioner control unit connector and ground.
      Fig 2: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground (1 Of 2)
      G03107621Courtesy of NISSAN MOTOR CO., U.S.A.
    CHECKING TILT SENSOR CIRCUIT FUNCTION WITHOUT CONSULT-II

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    M49 7 (Y/R) Ground Tilt top position 1.82
    Tilt bottom position 4.44

    OK or NG

    1. OK: Tilt sensor circuit is OK.
    2. NG: GO TO 2.
  2. CHECK HARNESS
    1. Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.
    2. Check continuity harness between automatic drive positioner control unit connector M49 terminals 7 (Y/R) and tilt sensor and telescopic sensor connector M28 terminals 2 (Y/R).

      7 (Y/R) - 2 (Y/R): Continuity should exist.

    3. Automatic drive positioner control unit connector M49 terminals 7 (Y/R) and ground.

      7 (Y/R) - Ground: Continuity should not exist.

      Fig 3: Checking Voltage Between Automatic Drive Positioner Control Unit Connector And Ground (2 Of 2)
      G03107622Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace tilt sensor and telescopic sensor.
    2. NG: Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.
