Memory Switch Operation

Selecting the memory

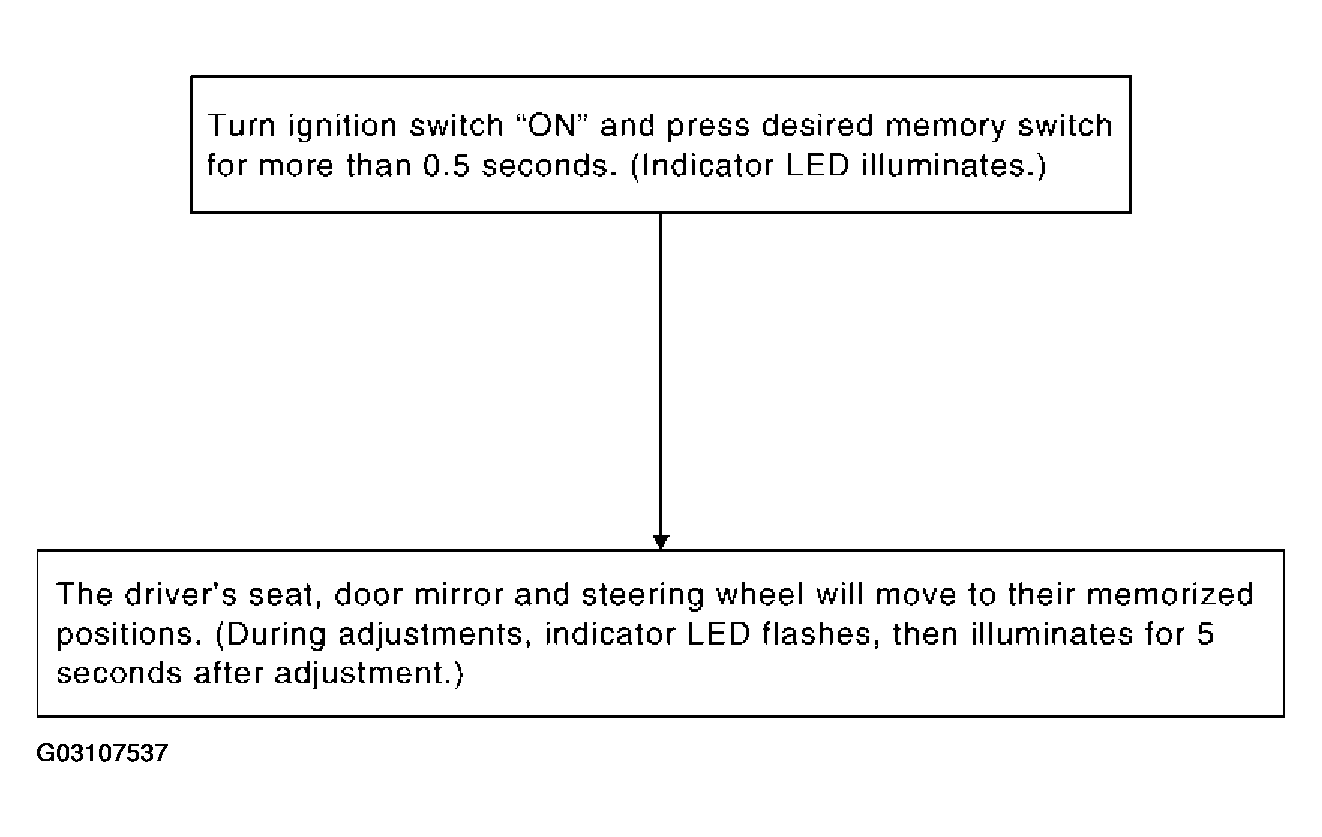

Fig 1: Memory Switch Operation Flow Chart
G03107537Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The driver's seat position and steering adjustment functions (see the following table) operate simultaneously in the order of priority.
MEMORY SWITCH OPERATION

Priority Function Priority Function
1 Seat sliding, door mirror LH/RH(1) 4 Seat reclining
2 Steering wheel telescoping 5 Seat lifter-FR
3 Steering wheel tilt 6 Seat lifter-RR
(1) In conjunction with sliding the seat, the door mirrors are positioned.
