Hydraulic Line: Components

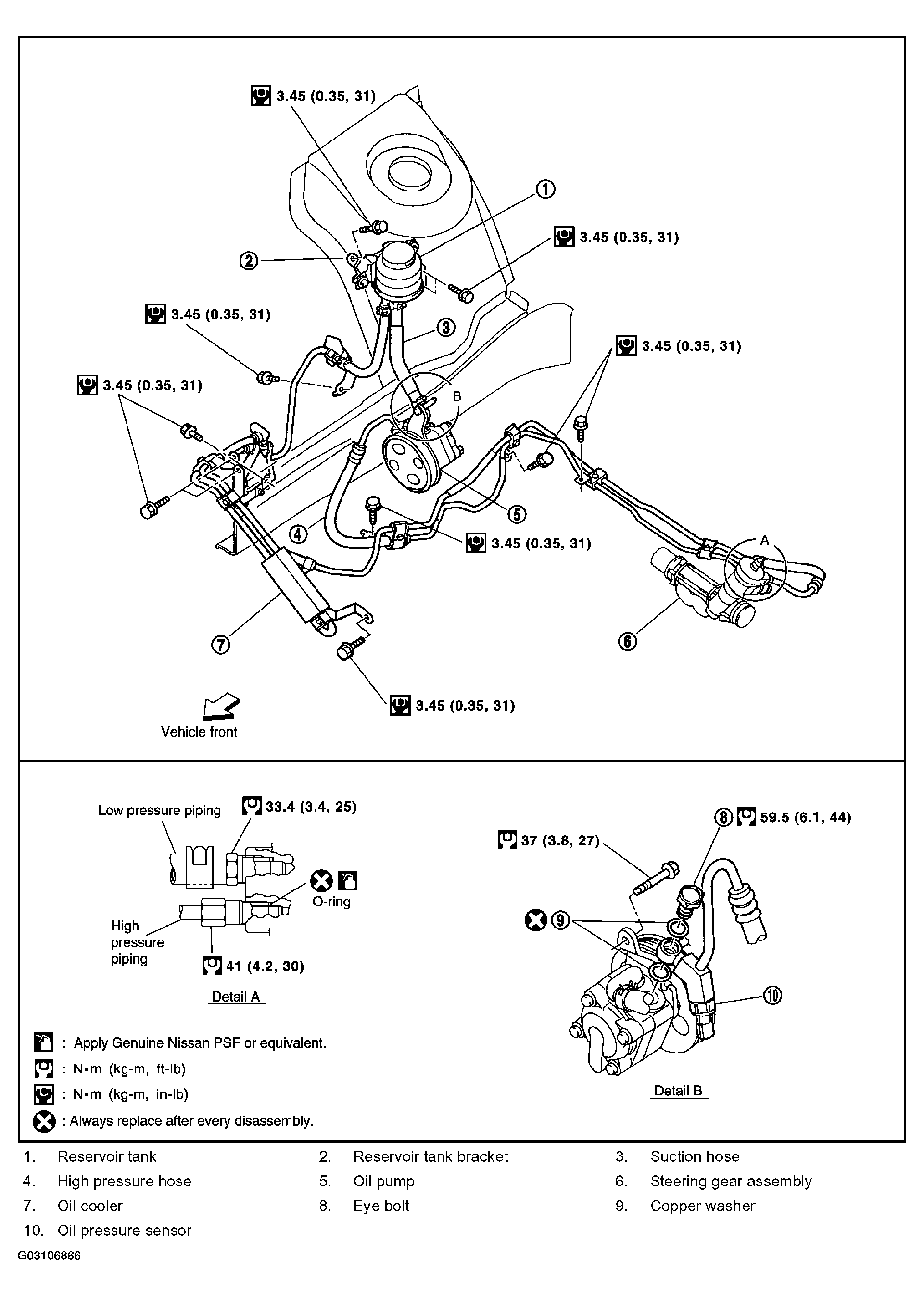

Fig 1: Exploded View Of Hydraulic Line (VQ35DE 2WD Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

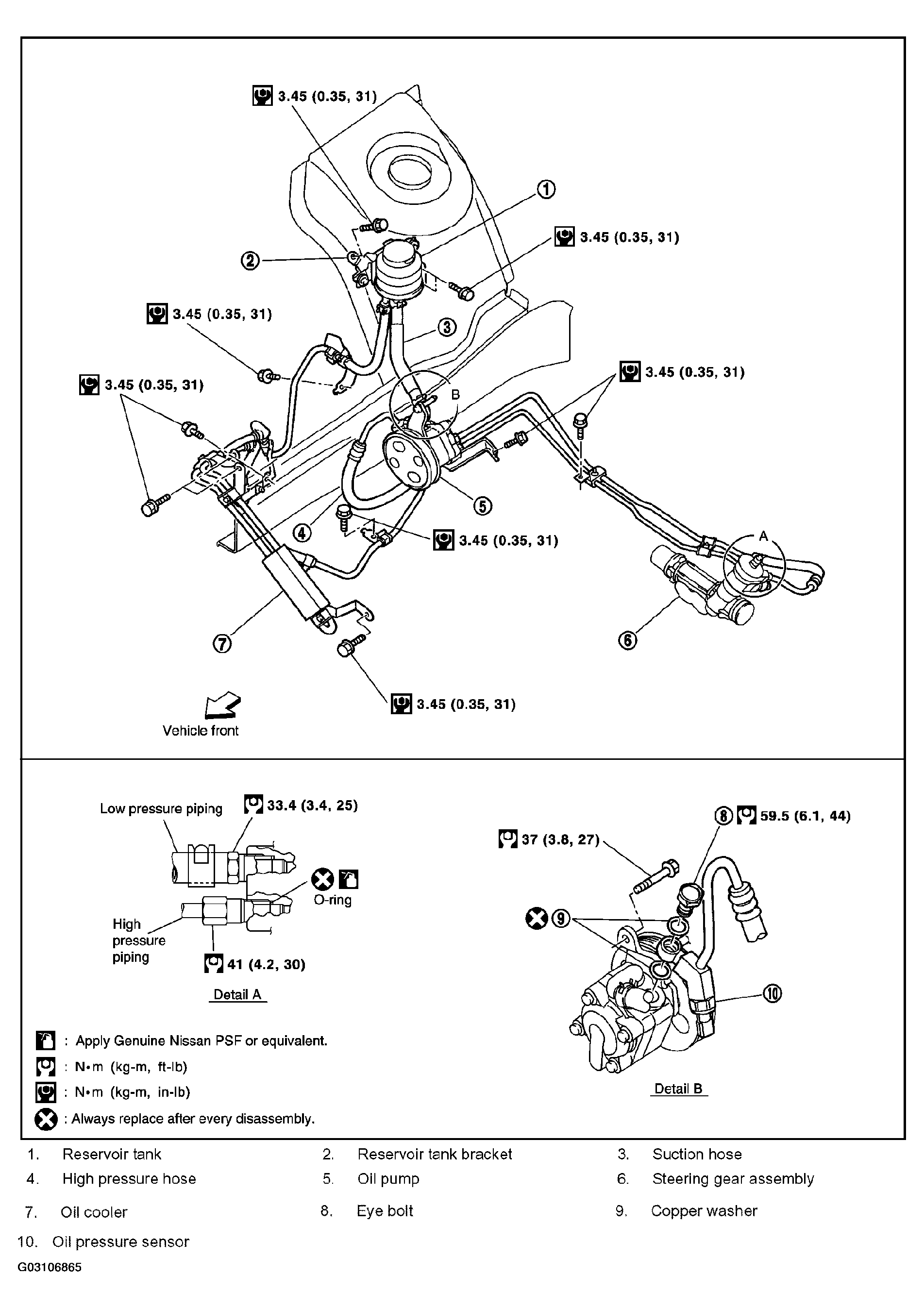

Fig 2: Exploded View Of Hydraulic Line (VQ35DE AWD Model)

Courtesy of NISSAN MOTOR CO., U.S.A.
