Can Communication System Inspection

WARNING: This page is about a different car, the 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION
1. Start engine.
2. Select "CAN DIAG SUPPORT MNTR" in "DATA MONITOR" mode for "METER A/C AMP" with CONSULT-II.
3. Print out CONSULT-II screen.

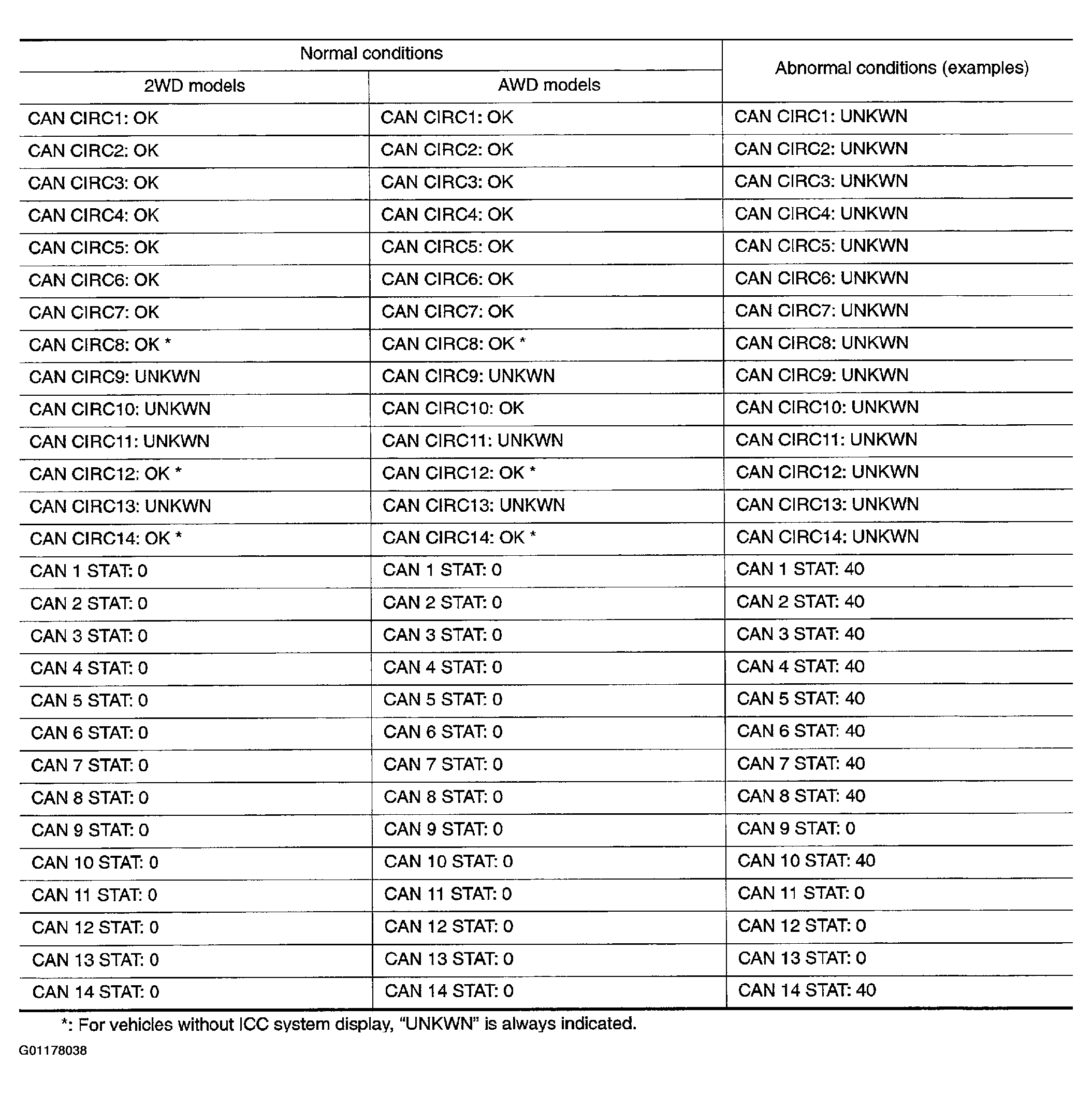

Fig 1: CAN DIAG SUPPORT MNTR Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Go to "CAN system". Refer to PRECAUTIONS WHEN USING CONSULT-II .
