Diagnostic Procedure

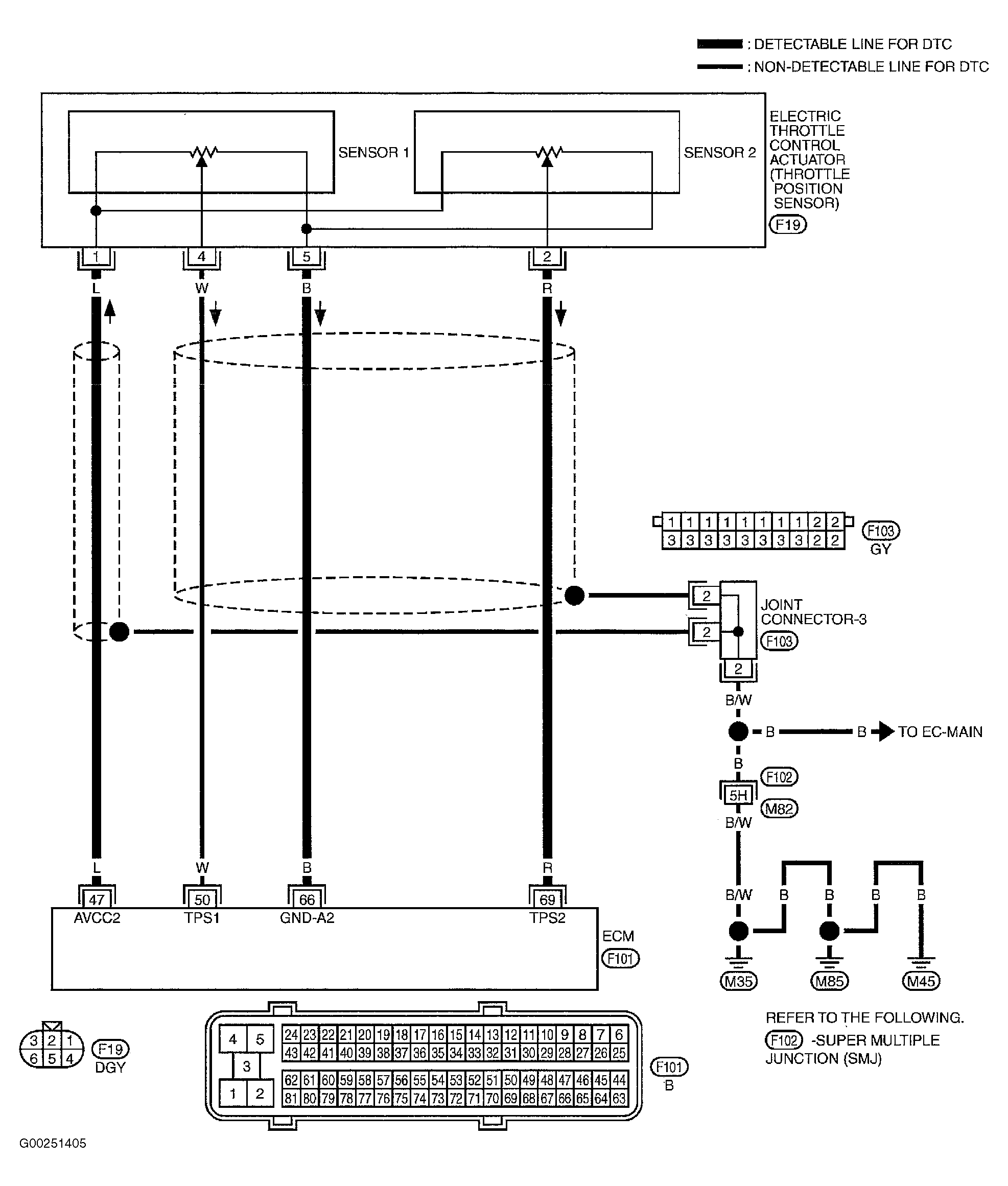

For wiring diagram, see Figure . For diagnostic procedure, see Fig 1 and Fig 2 .

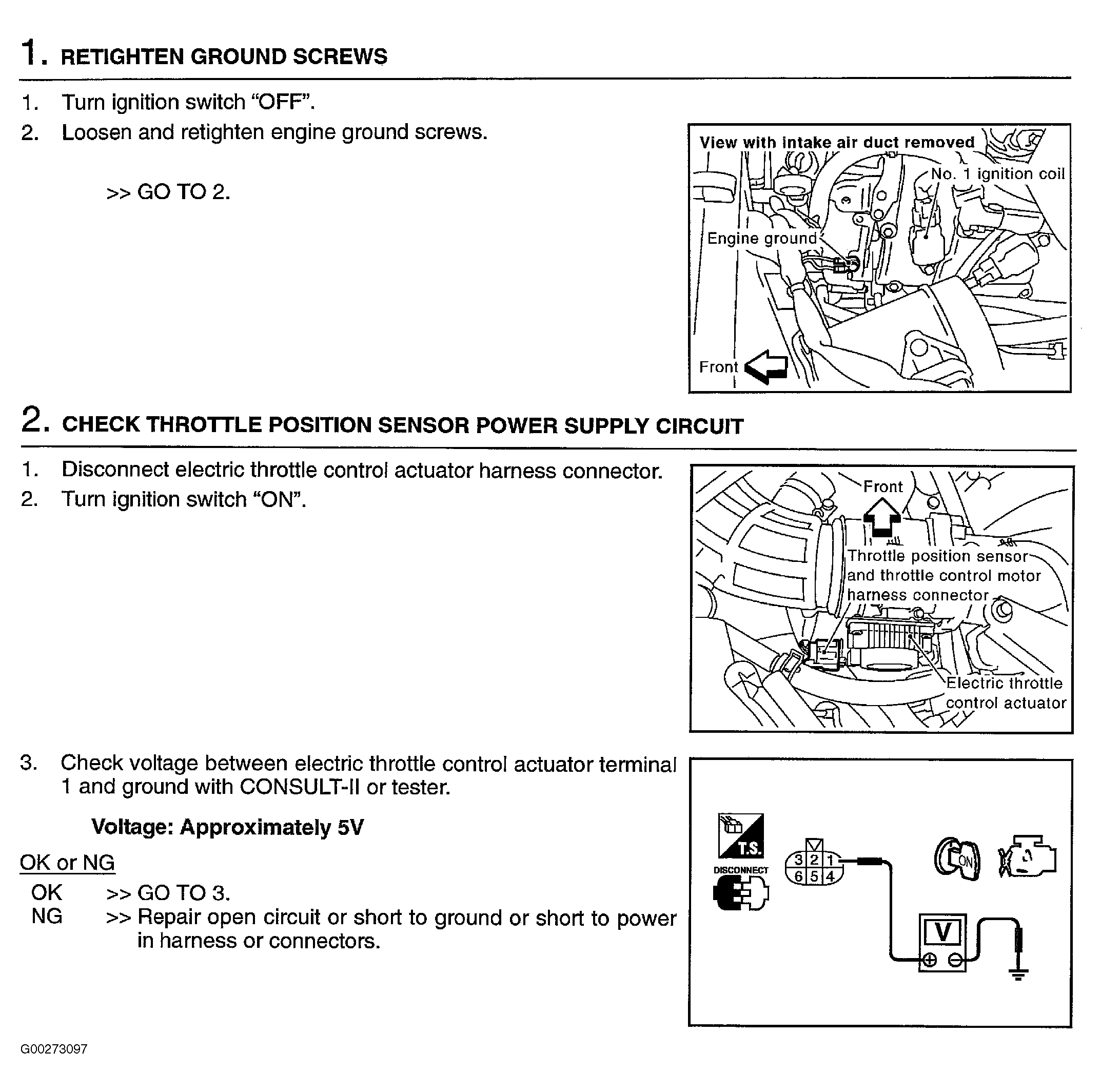

Fig 1: Diagnostic Procedure For Throttle Position Sensor (Step 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

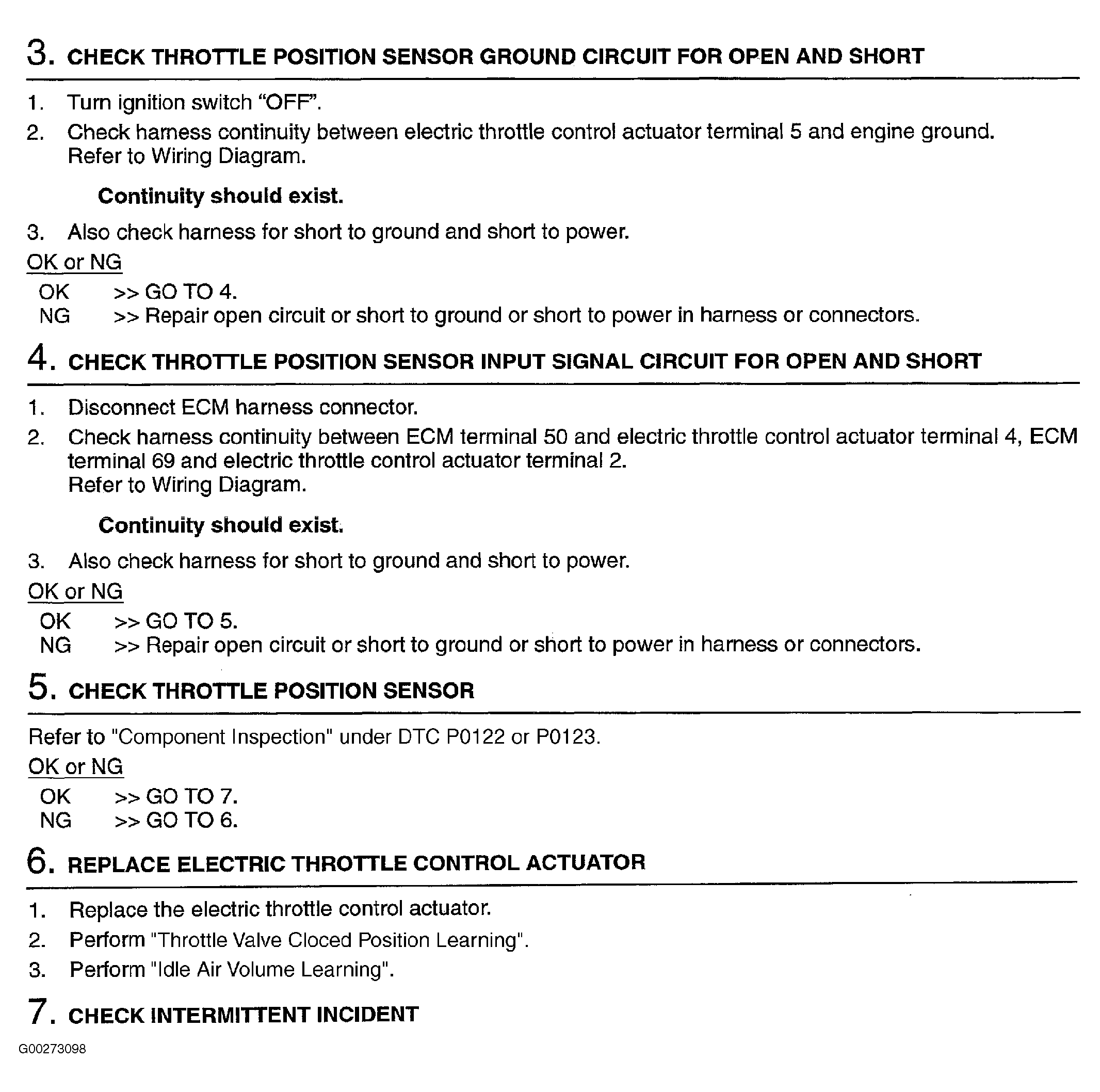

Fig 2: Diagnostic Procedure For Throttle Position Sensor (Step 3-7)

Courtesy of NISSAN MOTOR CO., U.S.A.
