Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Diagnostic Tests
>>
DTC P1128: Throttle Control Motor Circuit Short
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure
For wiring diagram, see
Fig 1
. For diagnostic procedure, see
Fig 2
.

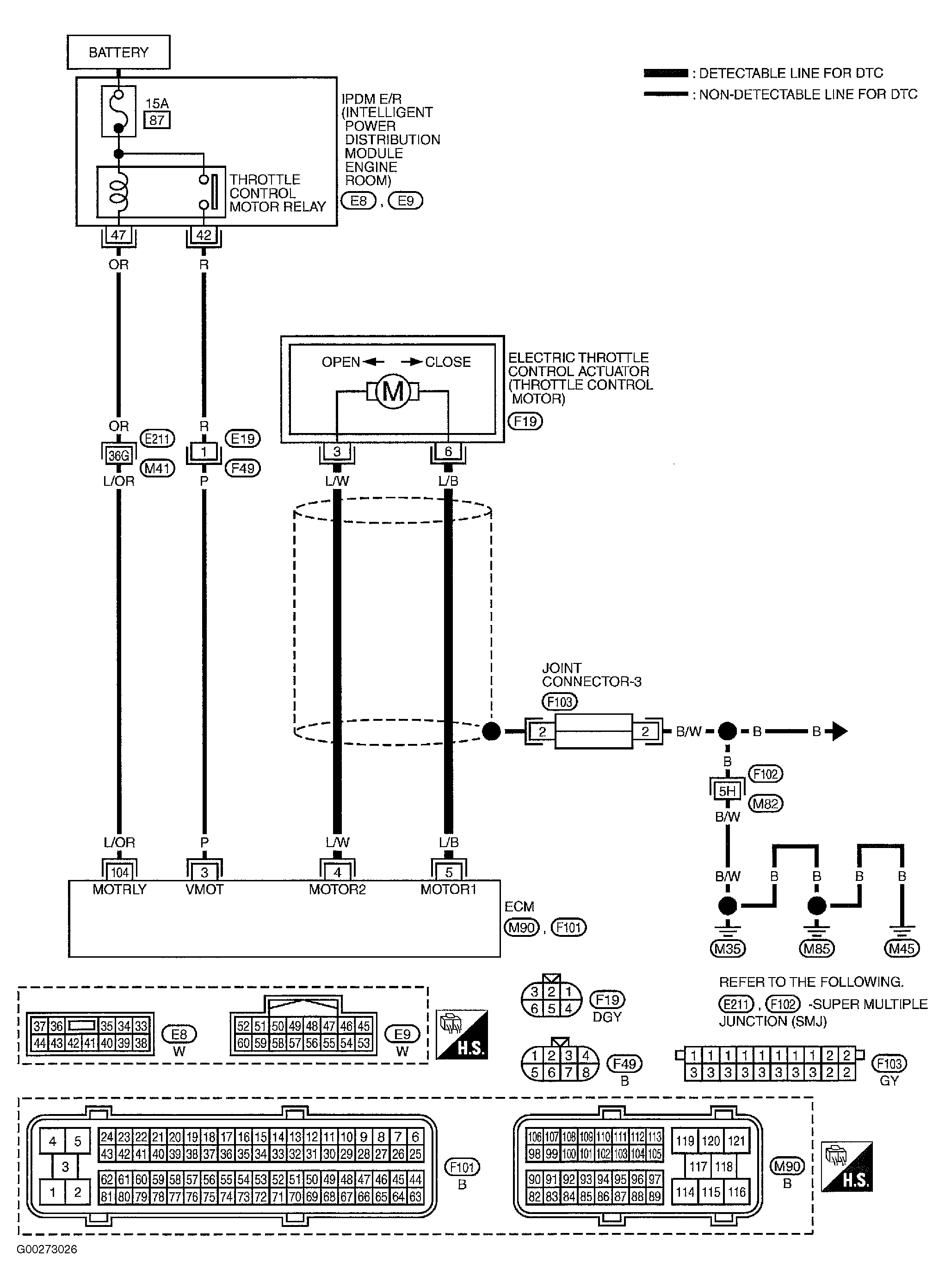

Fig 1: Throttle Control Motor Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

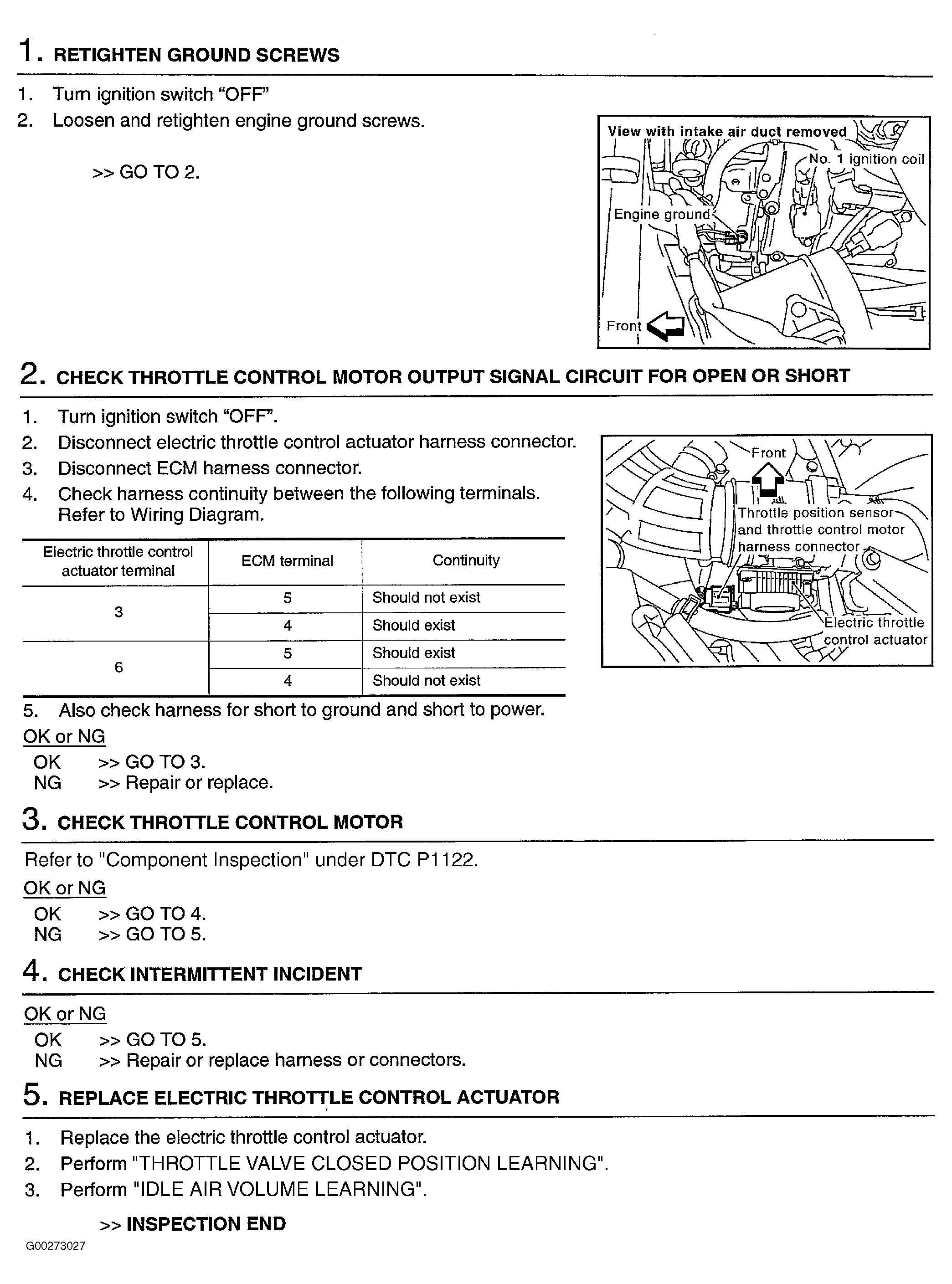

Fig 2: Diagnostic Procedure For Throttle Control Motor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
