Diagnostic Procedure
For wiring diagram, see Fig 1
. For diagnostic procedure, see Fig 2
-Fig 4
.

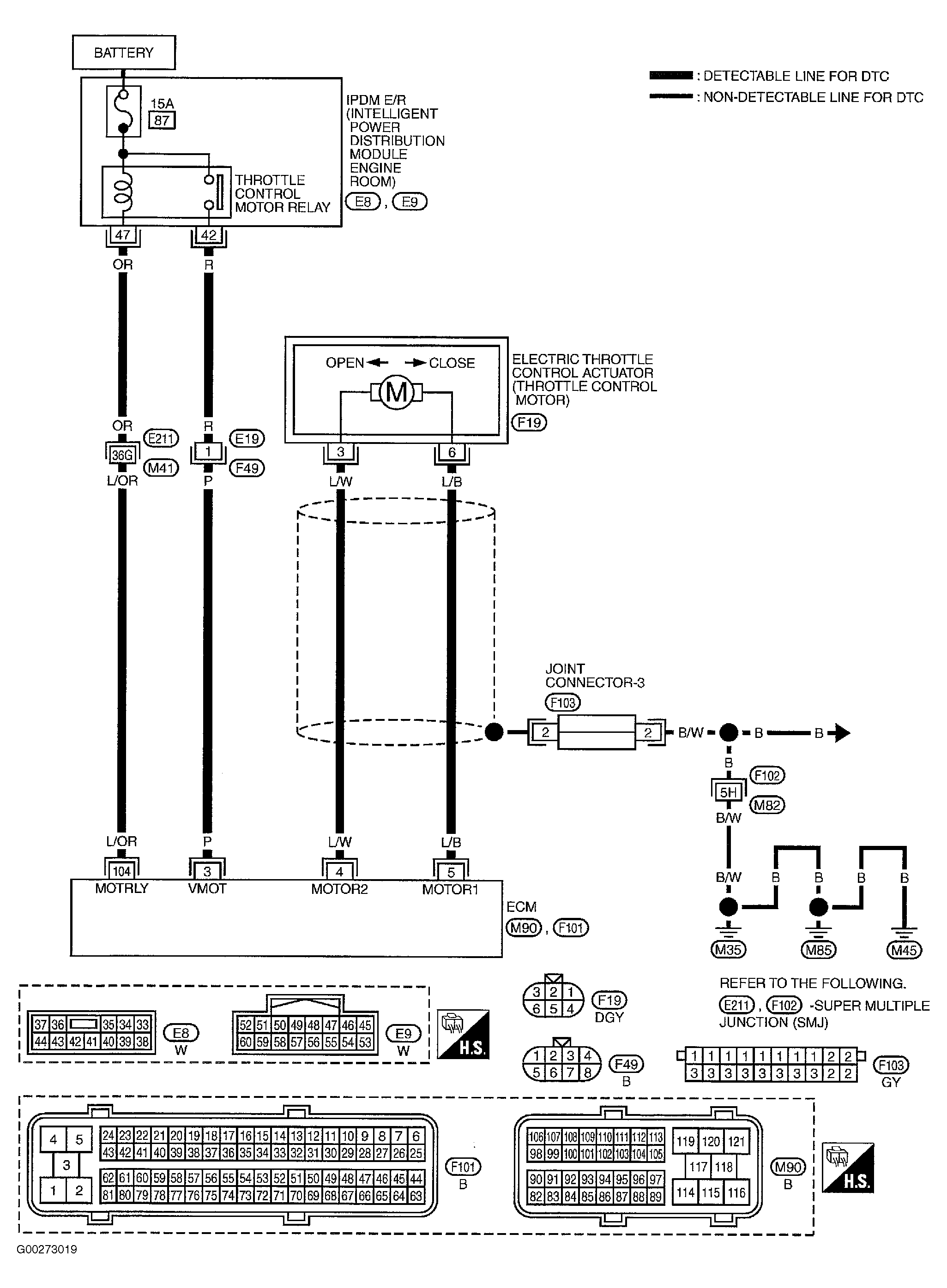

Fig 1: Electric Throttle Control Actuator Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

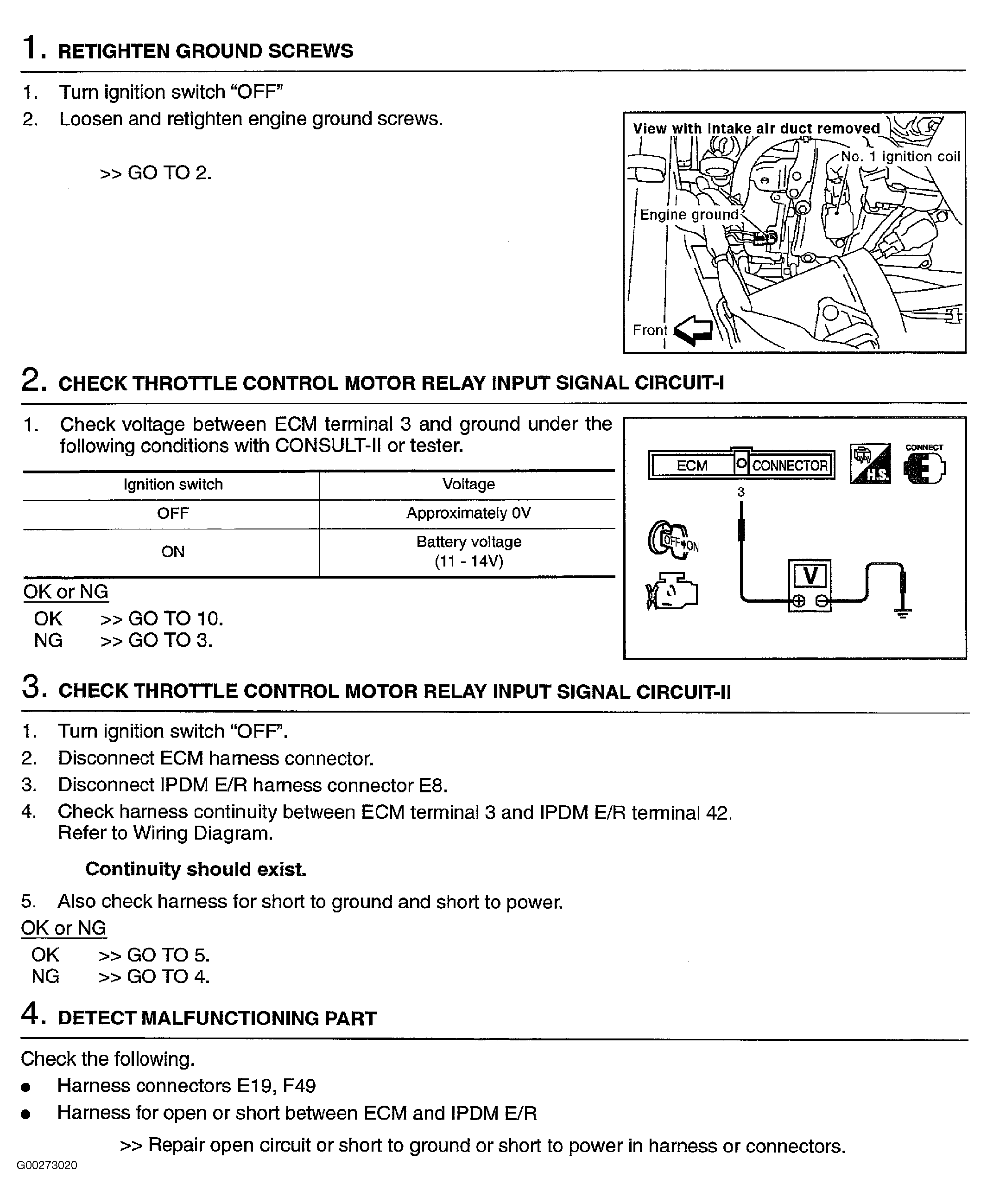

Fig 2: Diagnostic Procedure For Electric Throttle Control Function (Step 1-4)
Courtesy of NISSAN MOTOR CO., U.S.A.

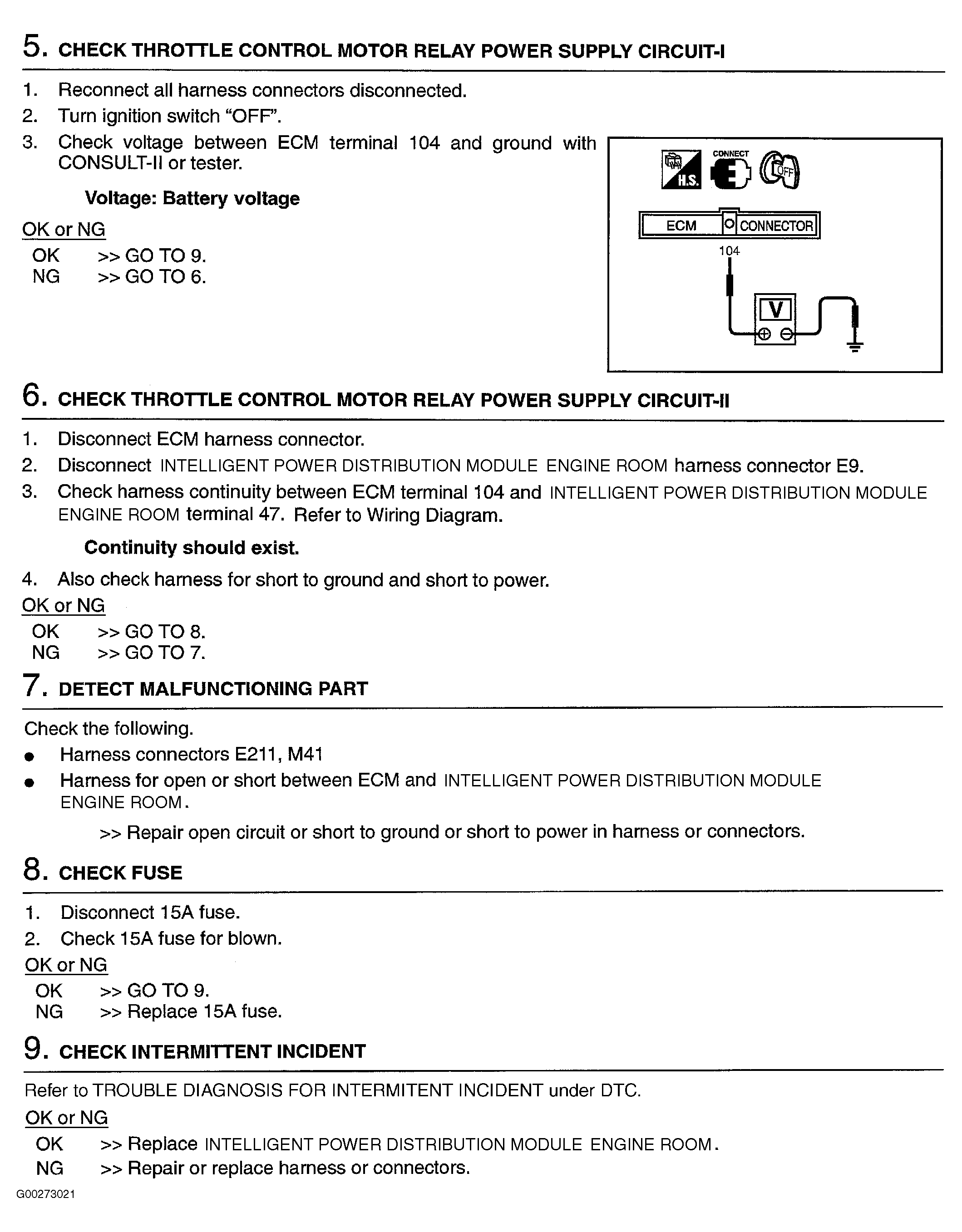

Fig 3: Diagnostic Procedure For Electric Throttle Control Function (Step 5-9)
Courtesy of NISSAN MOTOR CO., U.S.A.

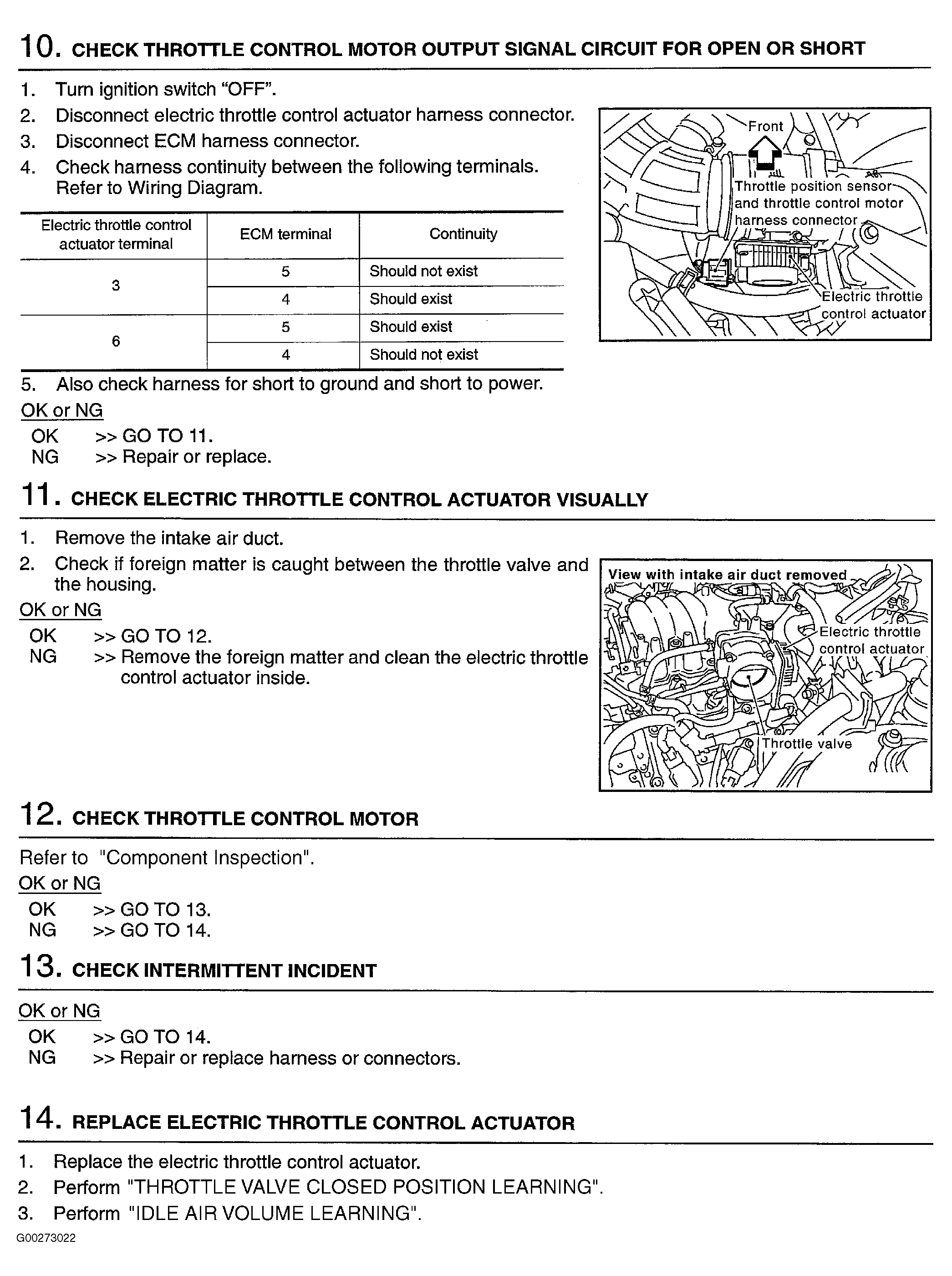

Fig 4: Diagnostic Procedure For Electric Throttle Control Function (Step 10-14)
