Diagnostic Procedure
Check DTC with unified meter and A/C amp. See Fig 1
. If okay, go to next step. If not okay, perform Fuel Level Sensor Signal Inspection 1. See Fig 2
and Fig 3
. To check components of fuel level sensor unit, see Fig 4
.
Check intermittent incident. See TROUBLE SHOOTING - NO CODES article.

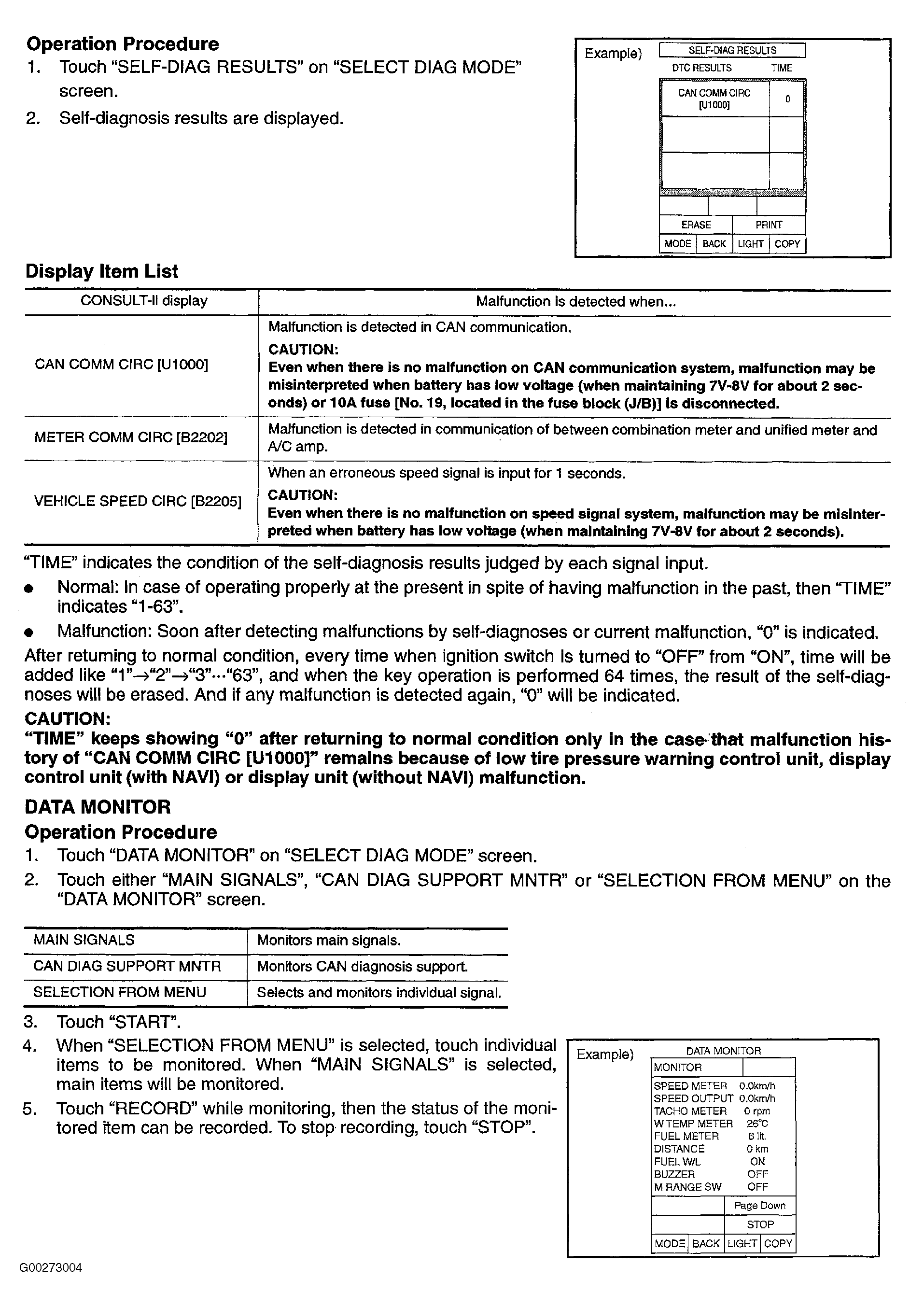

Fig 1: Checking DTC With Unified Meter & A/C Amp.
Courtesy of NISSAN MOTOR CO., U.S.A.

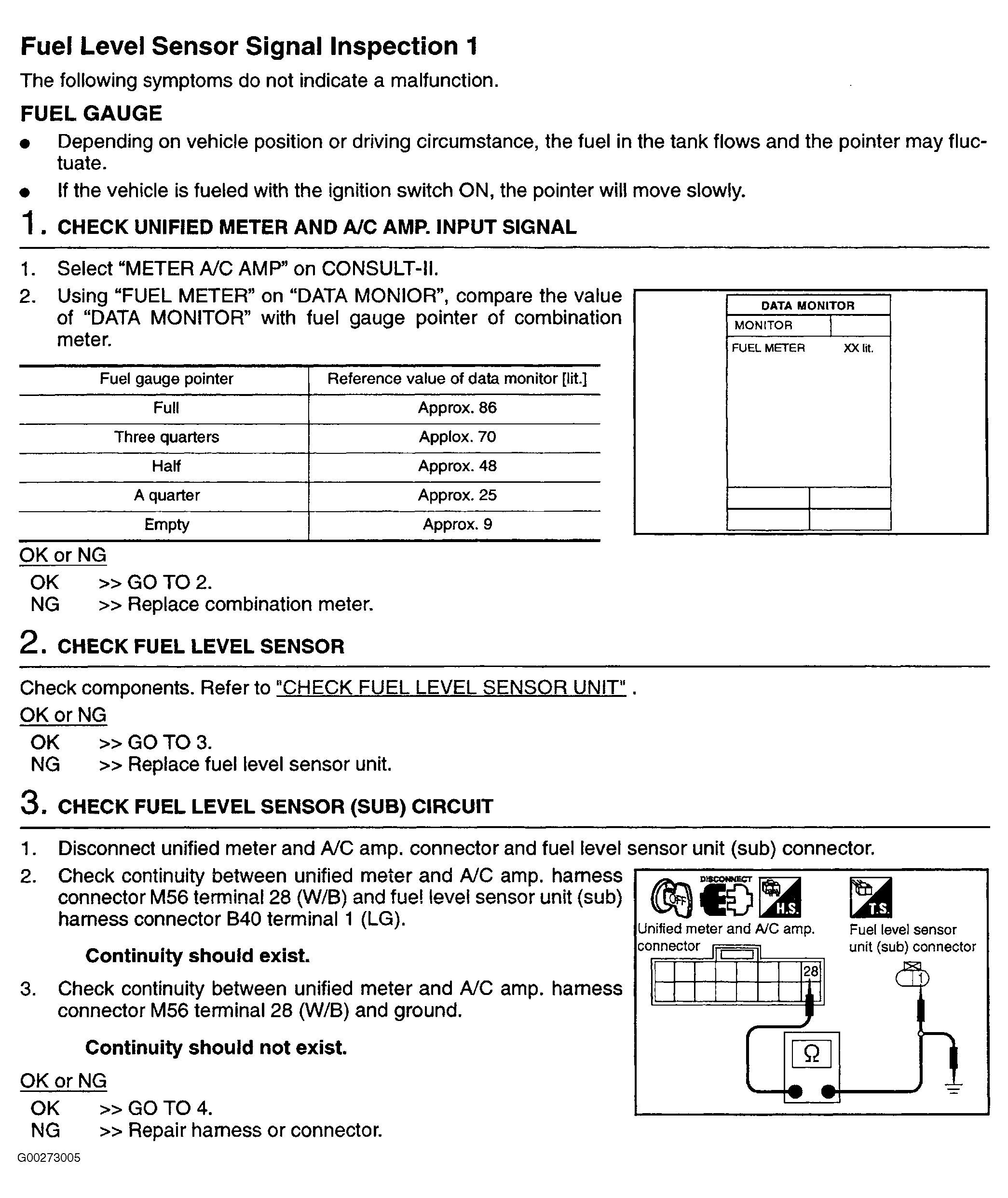

Fig 2: Fuel Level Sensor Signal Inspection 1 (Step 1-3)
Courtesy of NISSAN MOTOR CO., U.S.A.

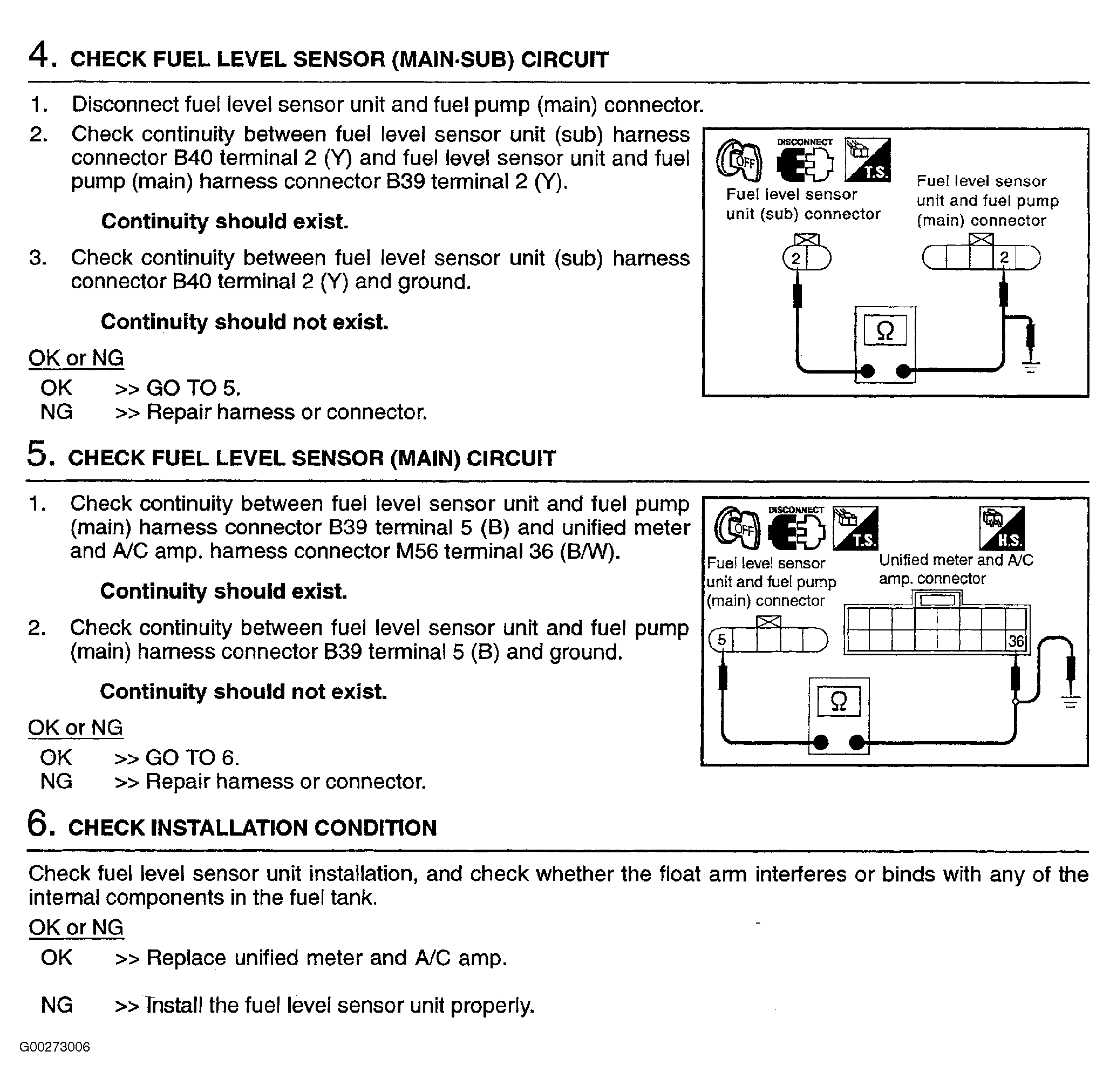

Fig 3: Fuel Level Sensor Signal Inspection 1 (Step 4-6)
Courtesy of NISSAN MOTOR CO., U.S.A.

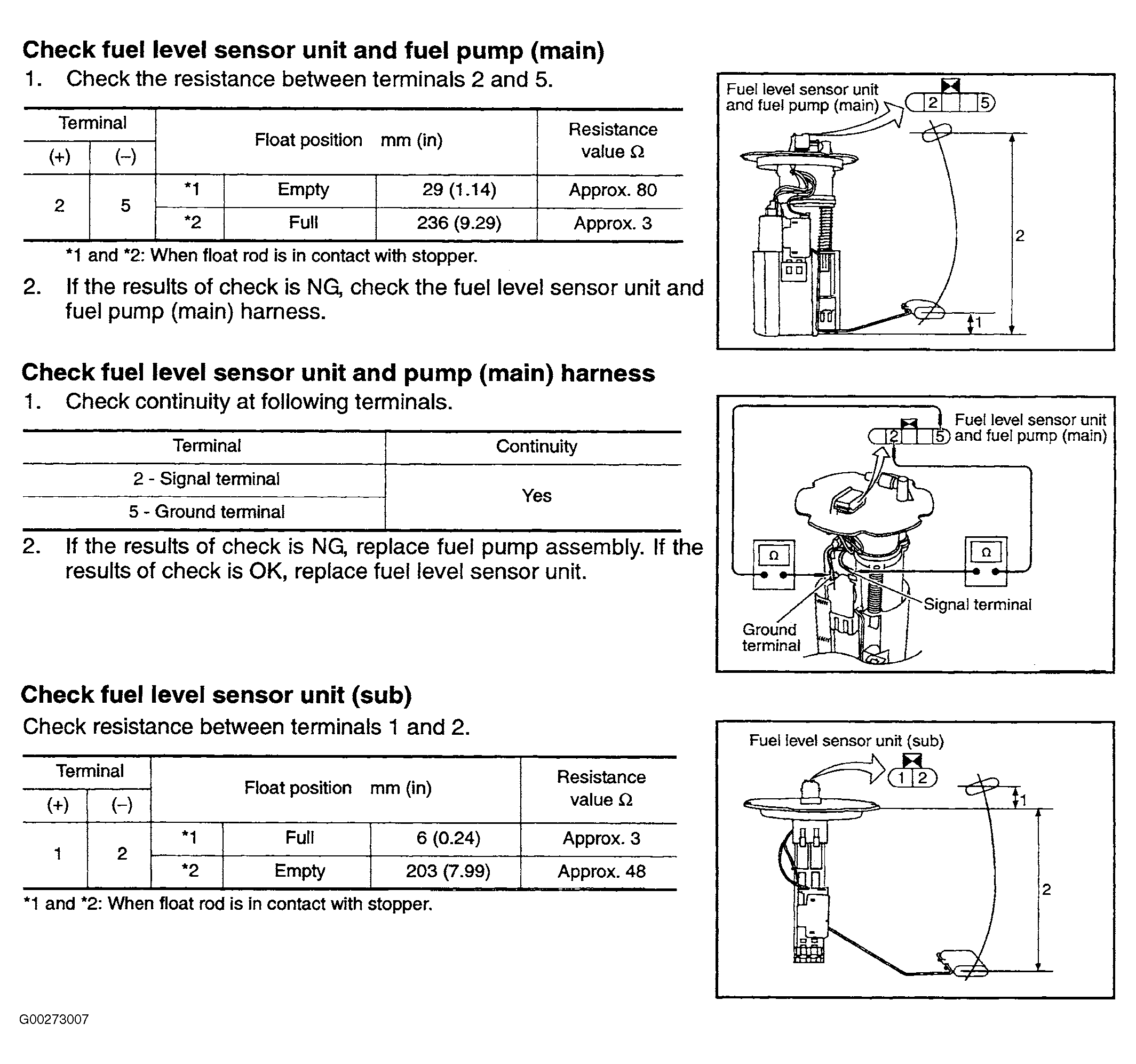

Fig 4: Checking Components Of Fuel Level Sensor Unit
