Diagnostic Procedure
For wiring diagram, see Figure
. For diagnostic procedure, see Fig 1
-Fig 4
.

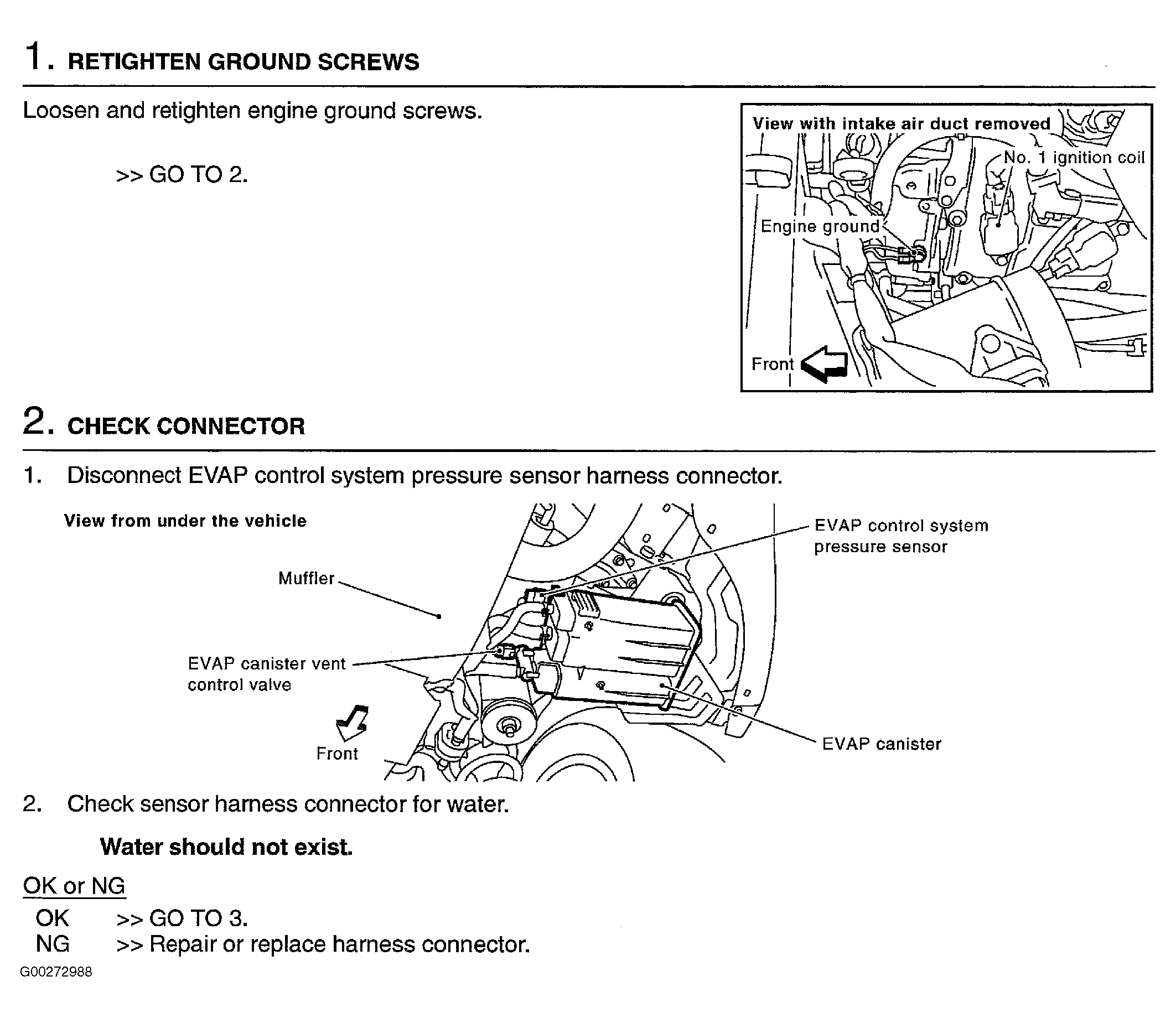

Fig 1: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 1-2)
Courtesy of NISSAN MOTOR CO., U.S.A.

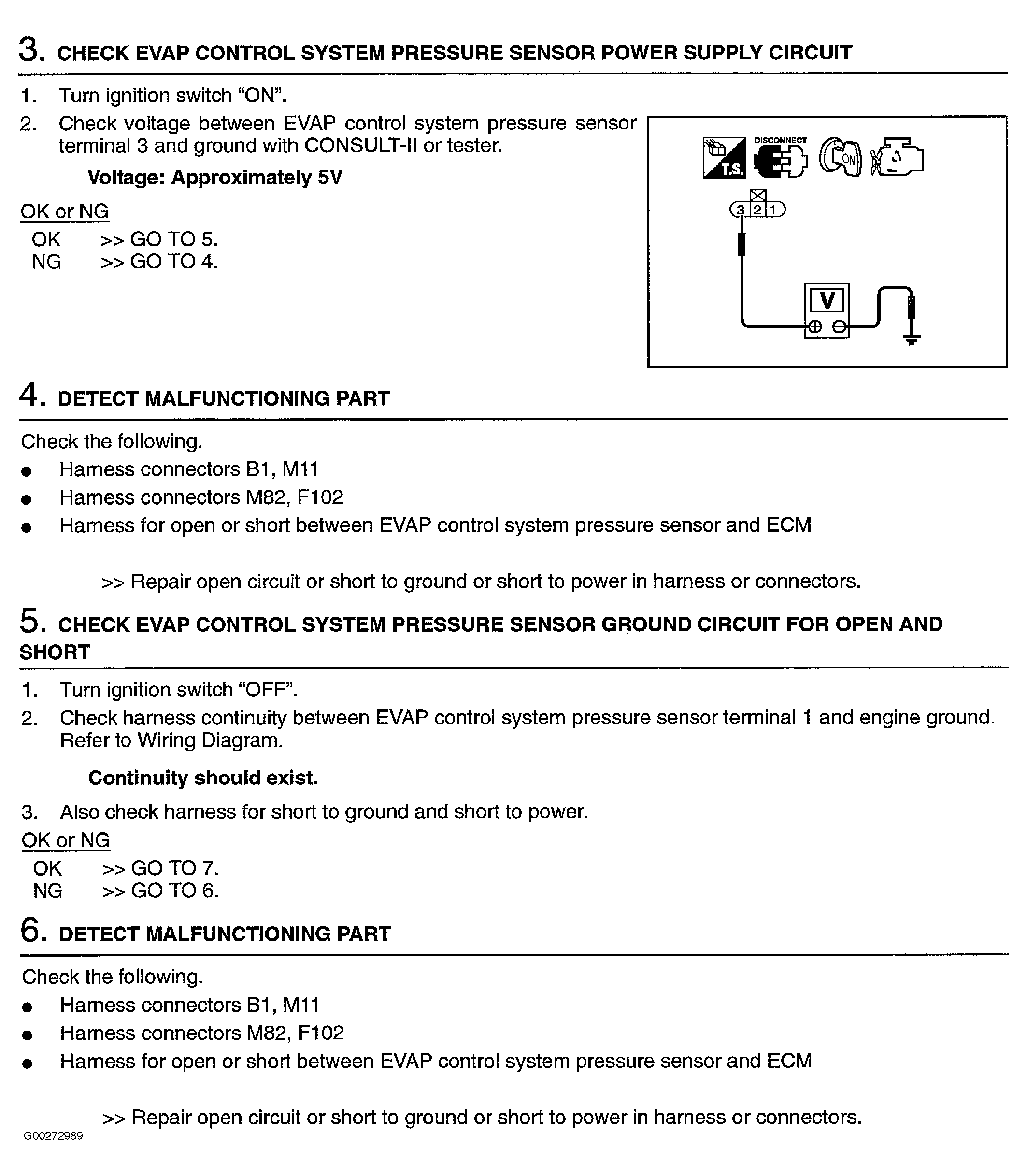

Fig 2: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 3-6)
Courtesy of NISSAN MOTOR CO., U.S.A.

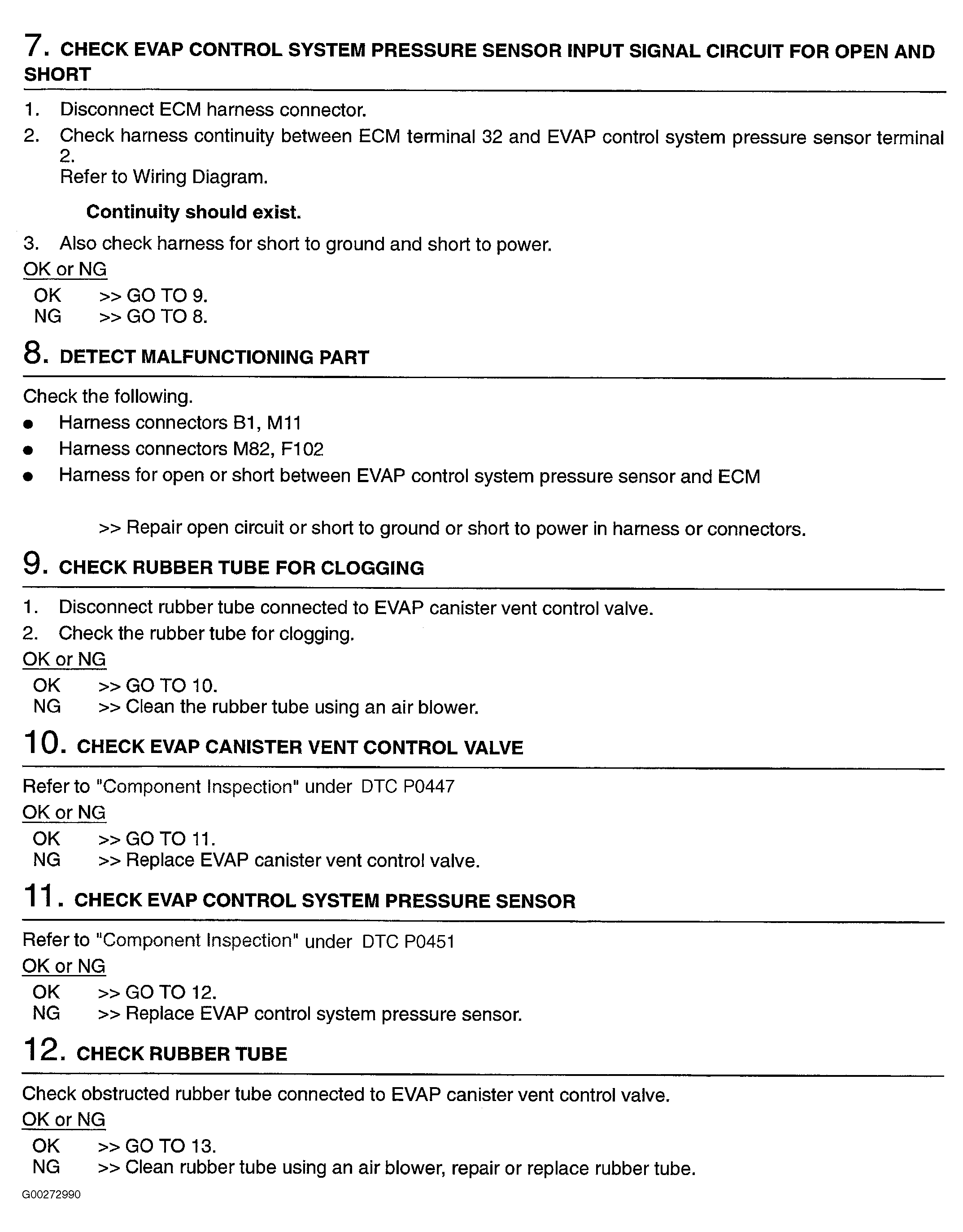

Fig 3: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 7-12)
Courtesy of NISSAN MOTOR CO., U.S.A.

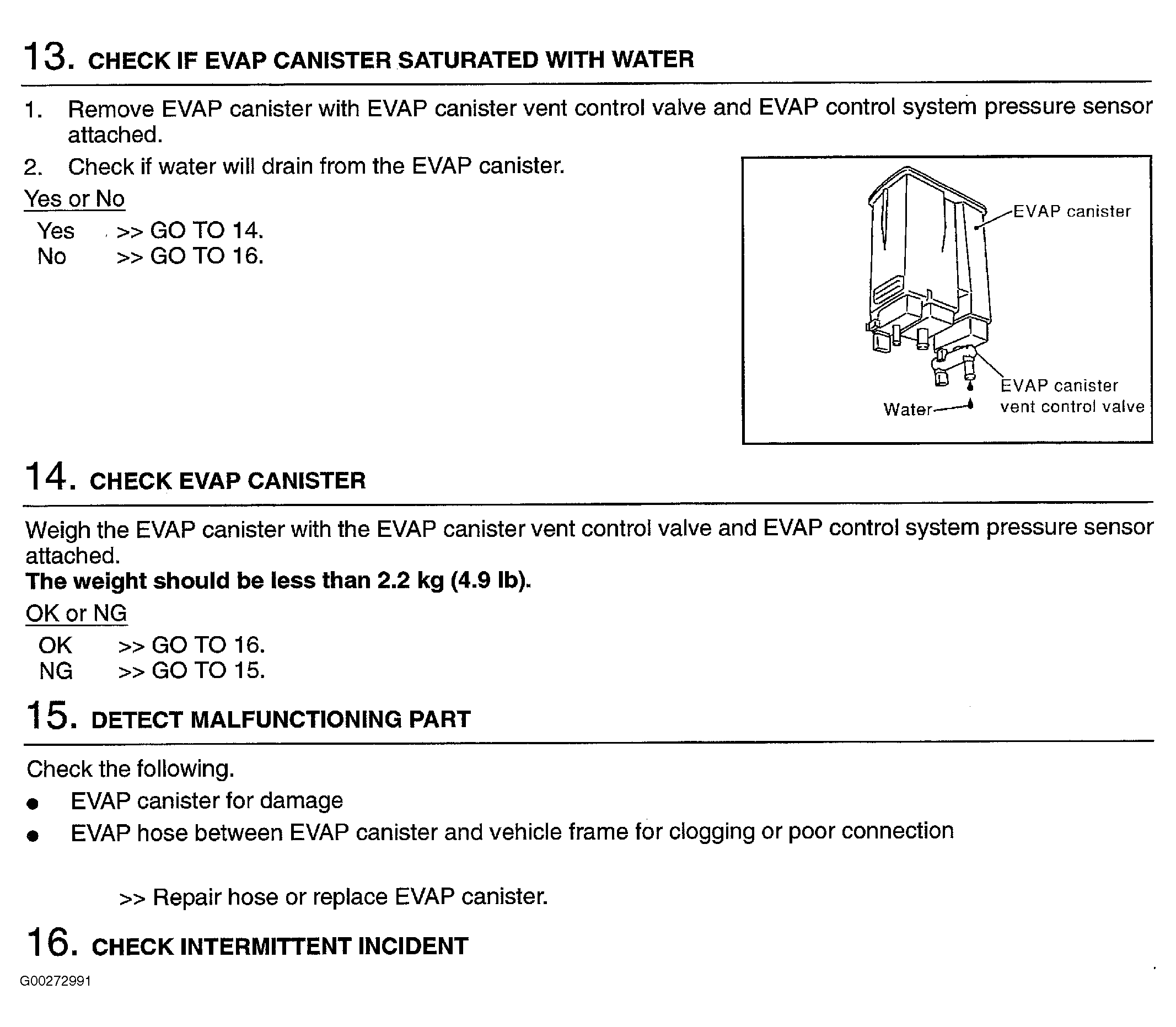

Fig 4: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 13-16)
