Diagnostic Procedure
For wiring diagram, see Fig 1
. For diagnostic procedure, see Fig 2
and Fig 3
.

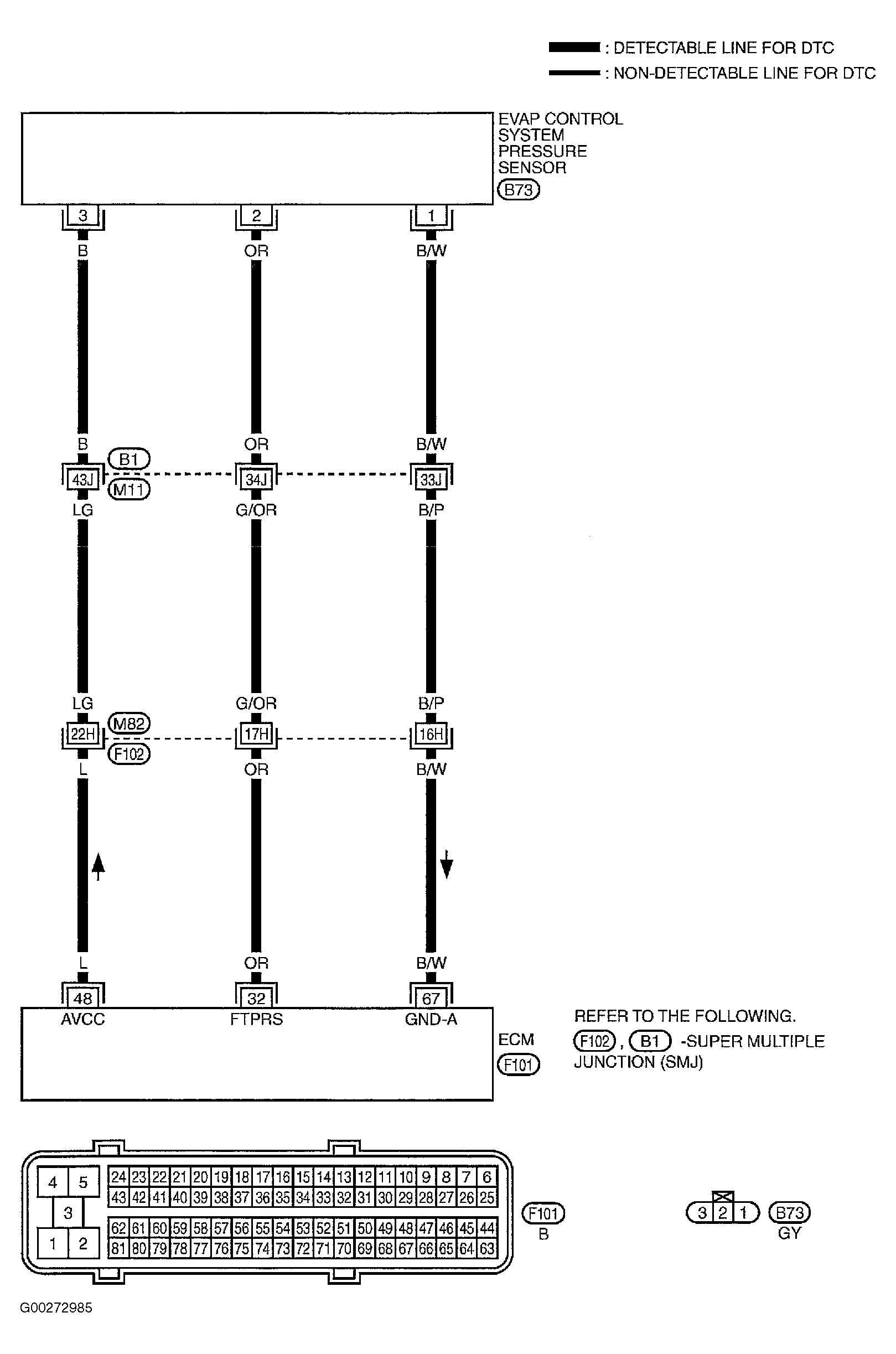

Fig 1: EVAP Control System Pressure Sensor Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

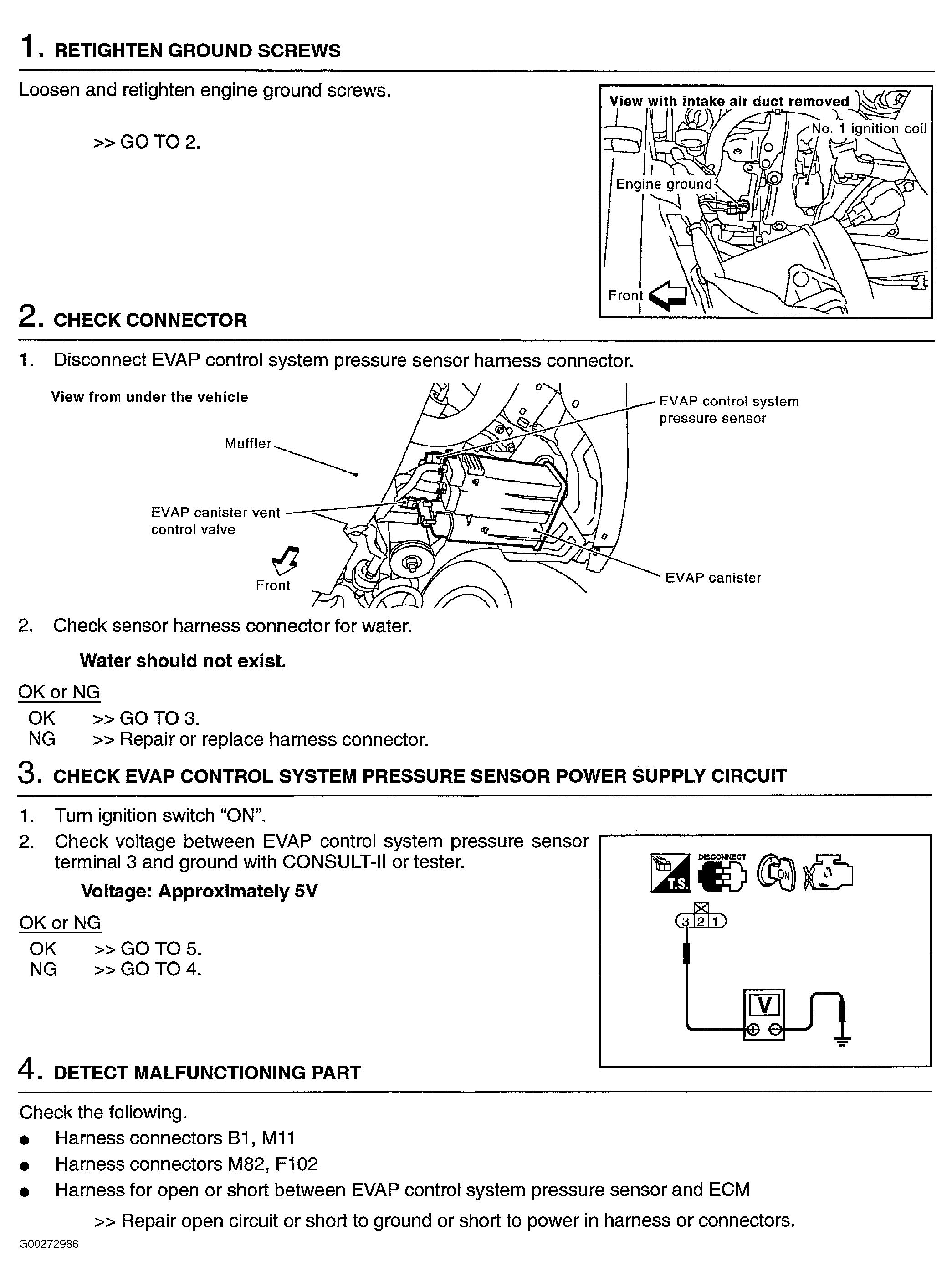

Fig 2: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 1-4)
Courtesy of NISSAN MOTOR CO., U.S.A.

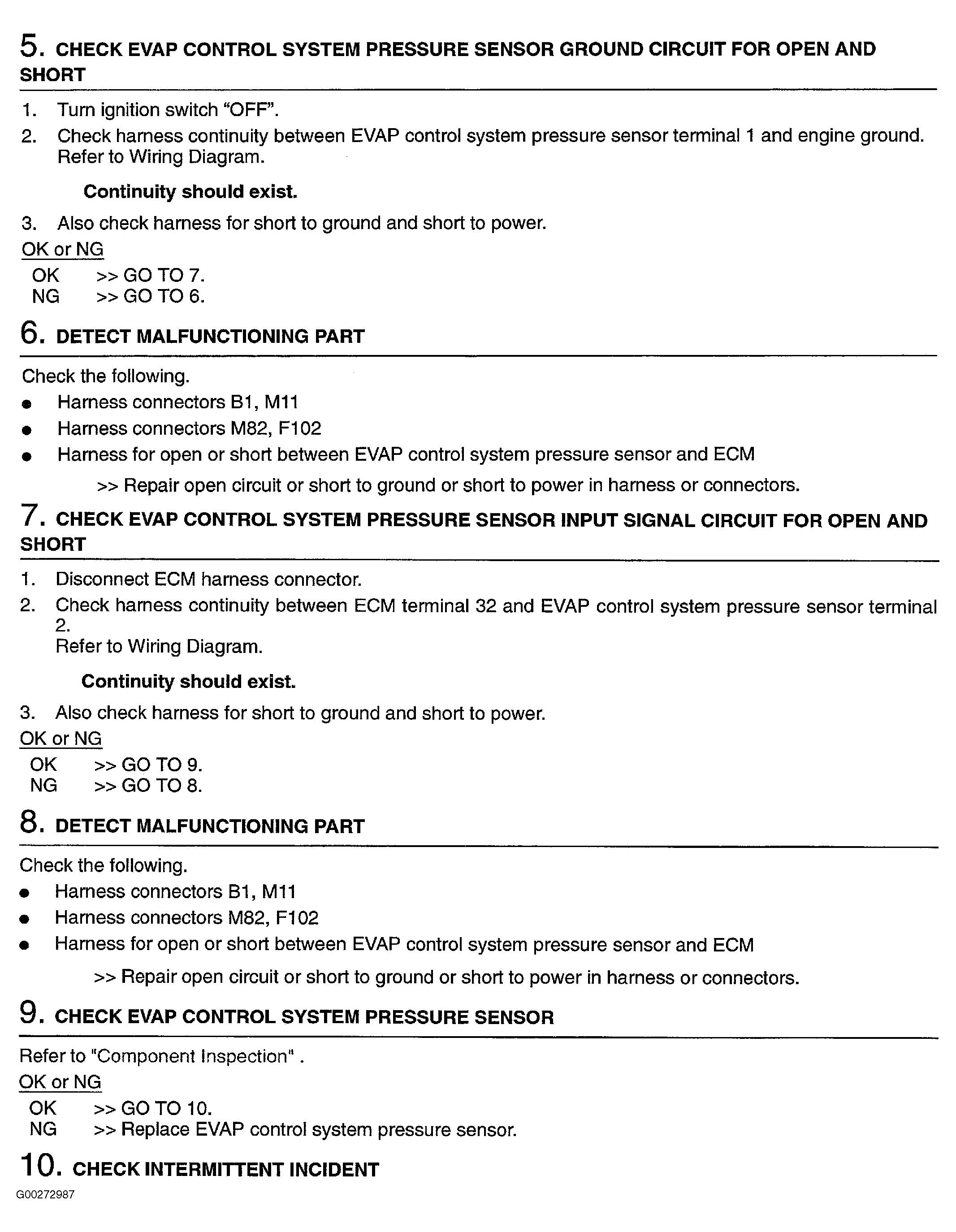

Fig 3: Diagnostic Procedure For EVAP Control System Pressure Sensor (Step 5-10)
