Diagnostic Procedure

For diagnostic procedure, see Fig 1 .

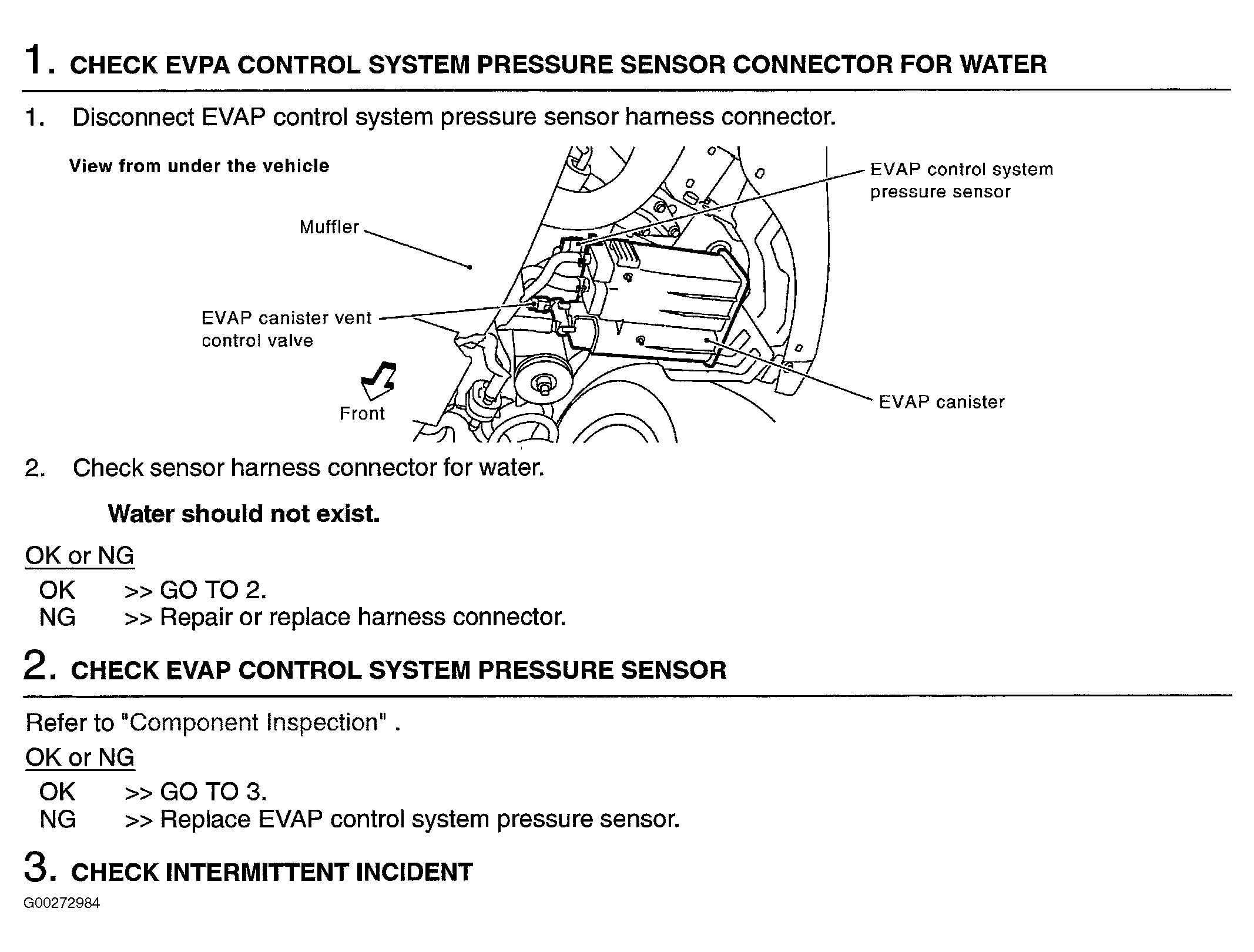

Fig 1: Diagnostic Procedure For EVAP Control System Pressure Sensor
G00272984Courtesy of NISSAN MOTOR CO., U.S.A.
