Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3 .

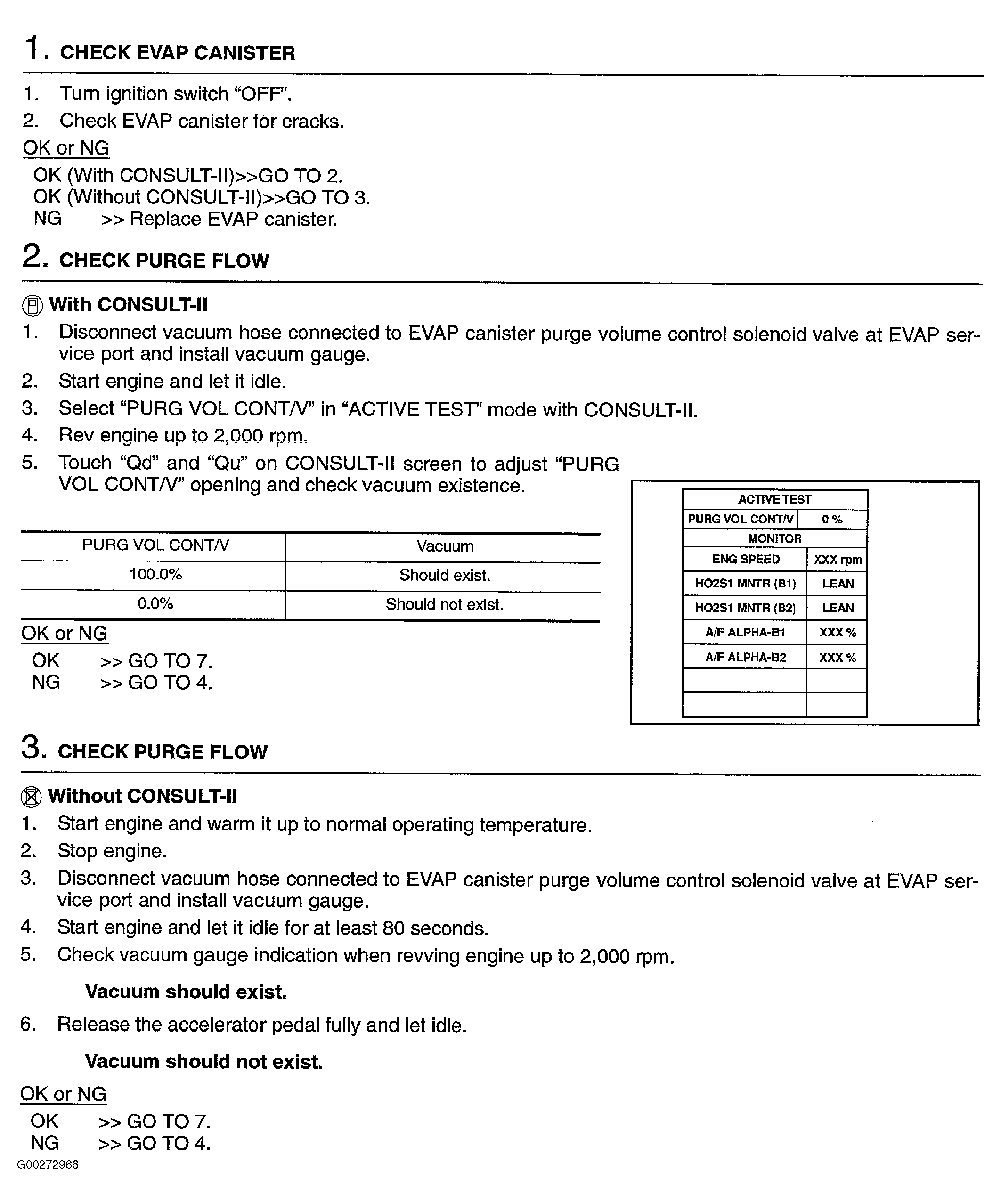

Fig 1: Diagnostic Procedure For EVAP Control System (Step 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

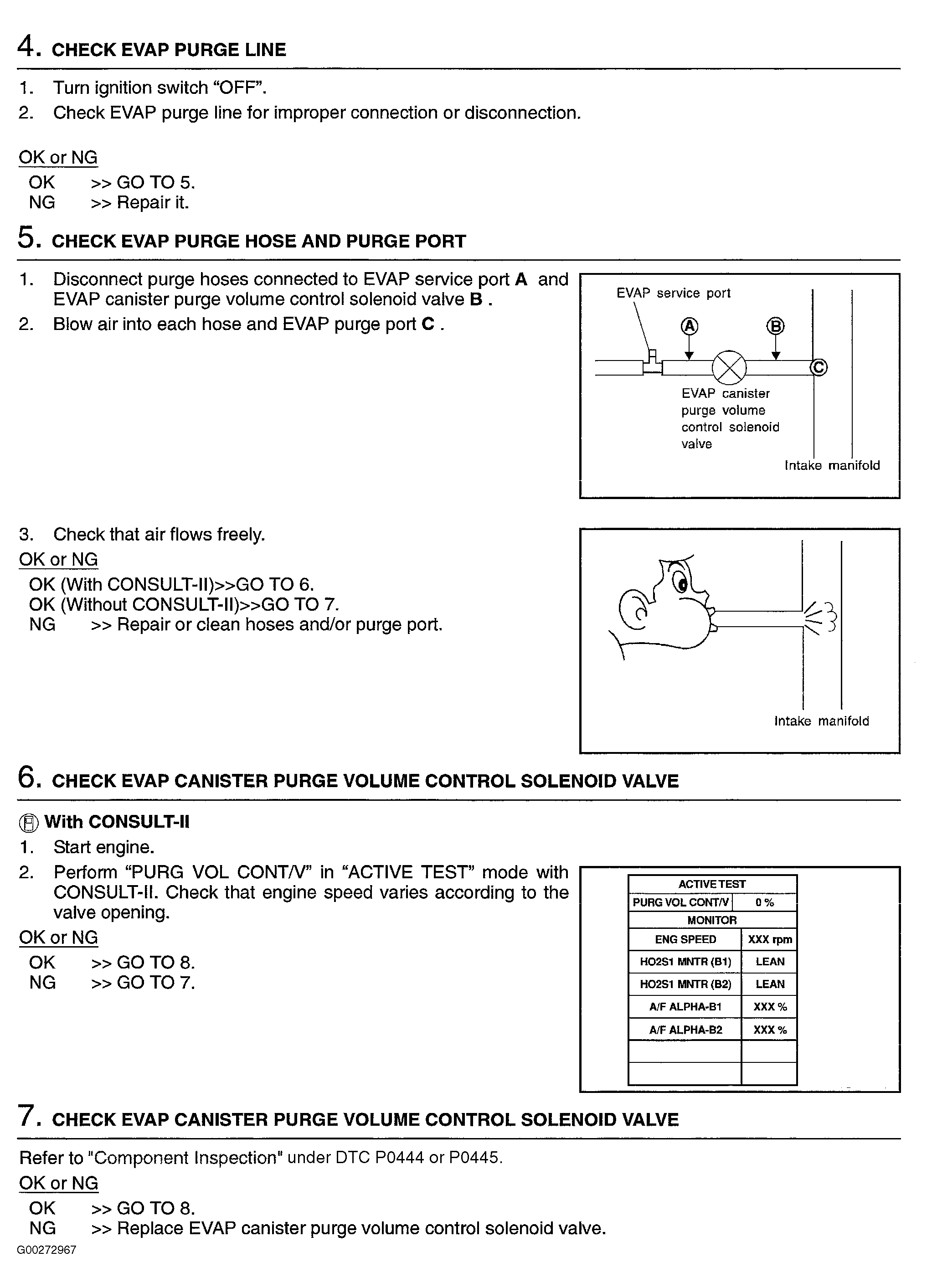

Fig 2: Diagnostic Procedure For EVAP Control System (Step 4-7)

Courtesy of NISSAN MOTOR CO., U.S.A.

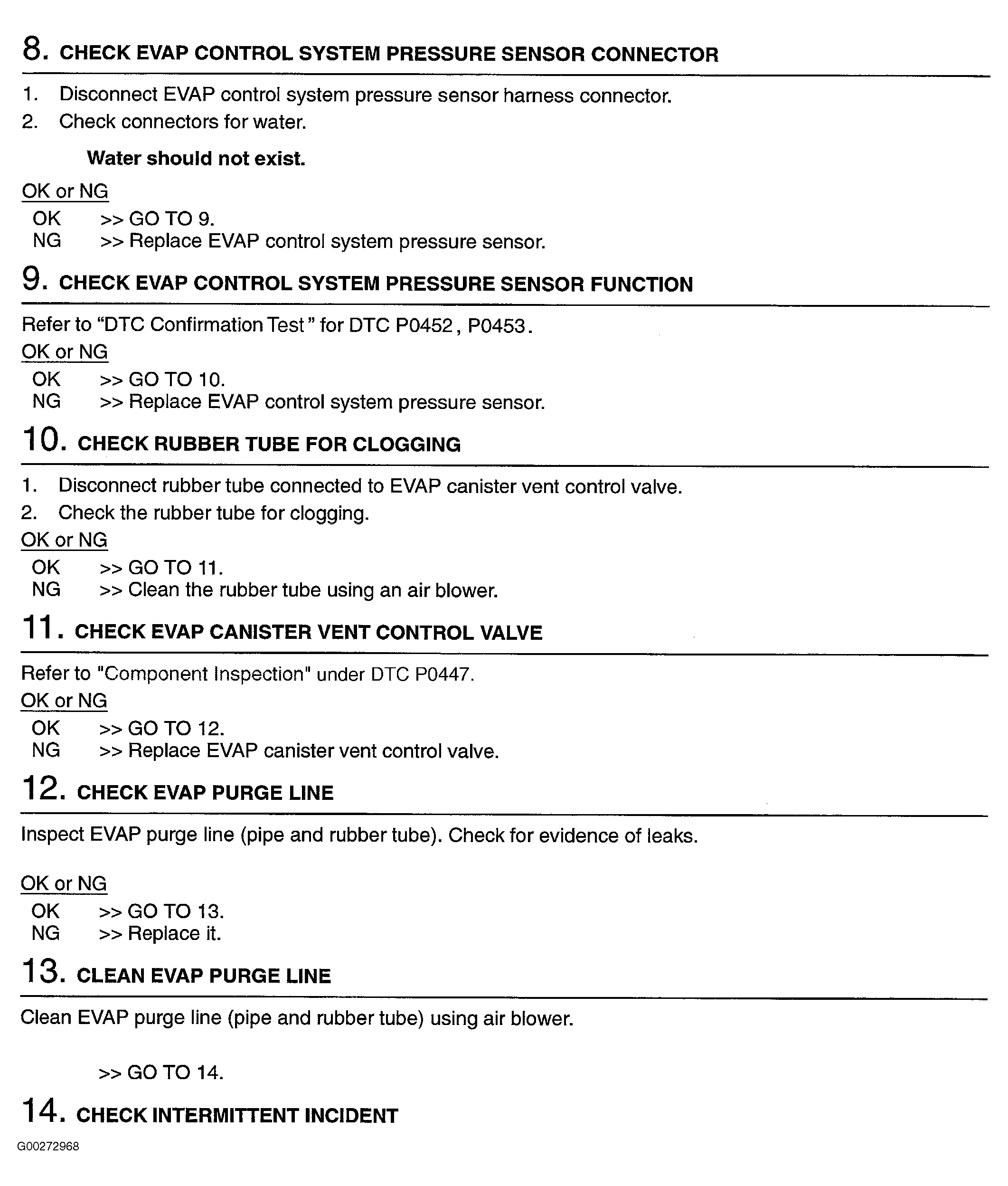

Fig 3: Diagnostic Procedure For EVAP Control System (Step 8-14)

Courtesy of NISSAN MOTOR CO., U.S.A.
