Repair and Diagnosis: Electrical: Starter: Starters: Overhaul

NOTE: See Fig 1 and Fig 2 for overhaul reference.

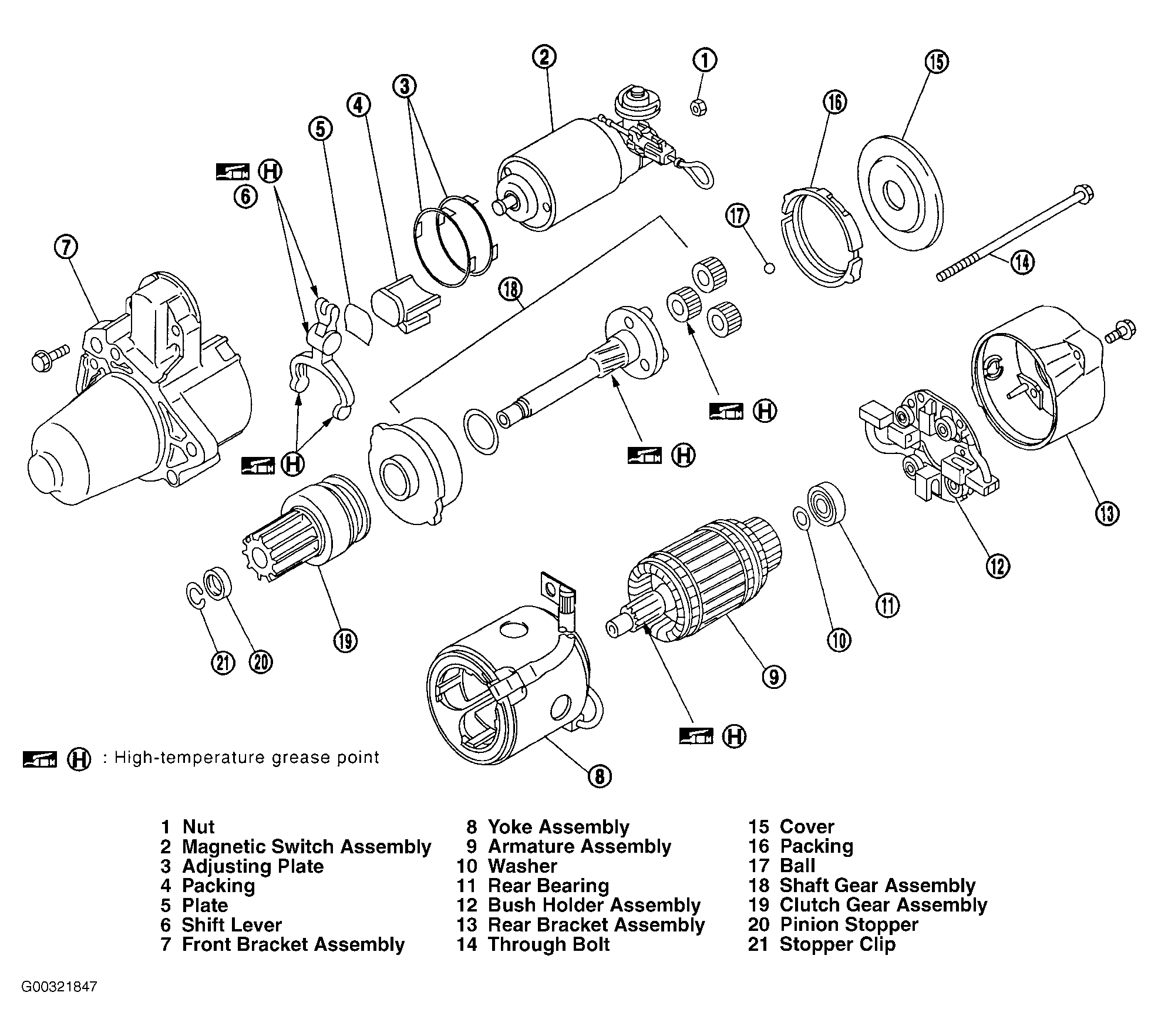

Fig 1: Exploded View Of Starter (FX35)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of Starter (FX45)

Courtesy of NISSAN MOTOR CO., U.S.A.
