Diagnostic Procedure 4

Diagnostic procedure 4, see Fig 1 .

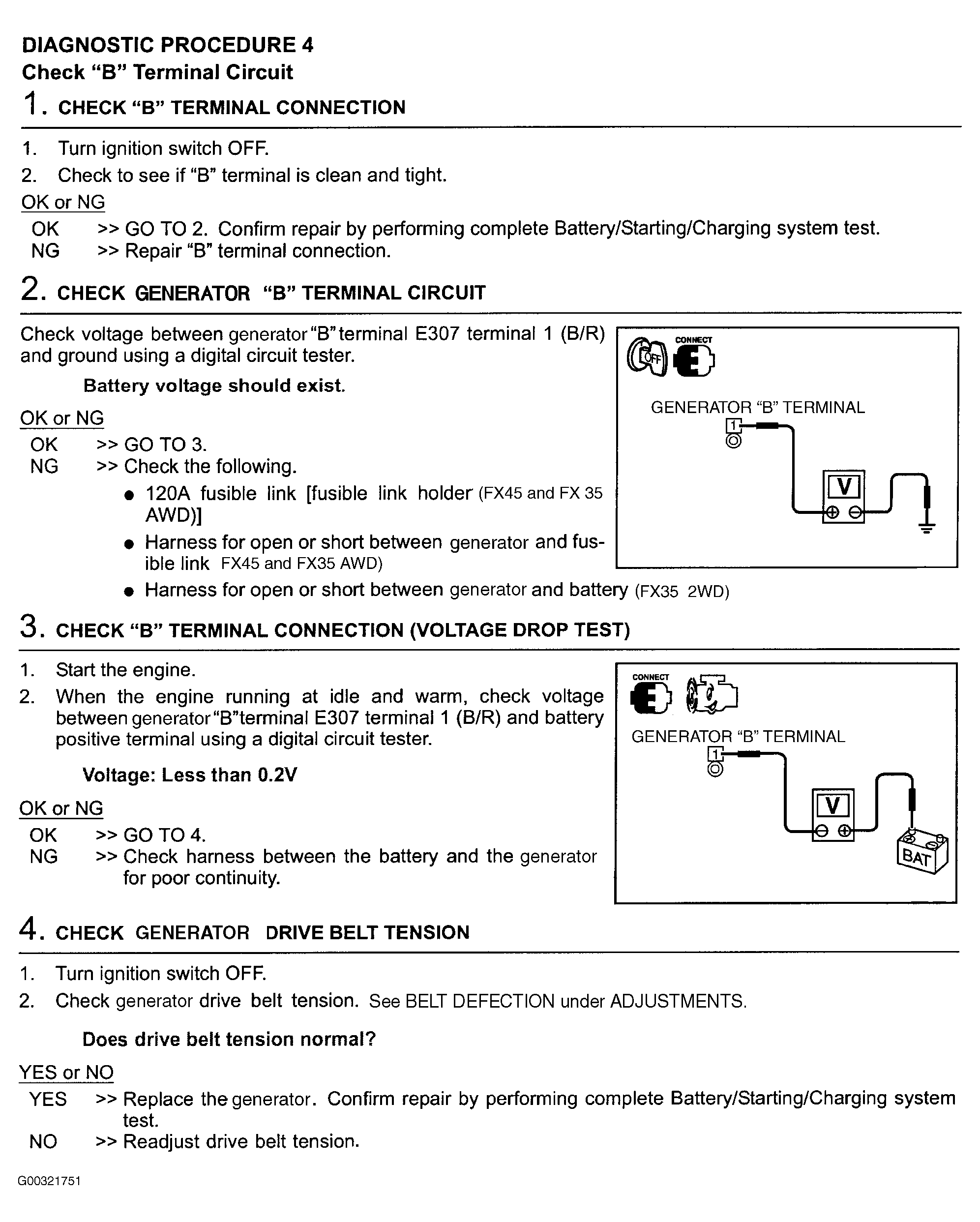

Fig 1: Diagnostic Procedure 4
G00321751Courtesy of NISSAN MOTOR CO., U.S.A.
