ABS Motor

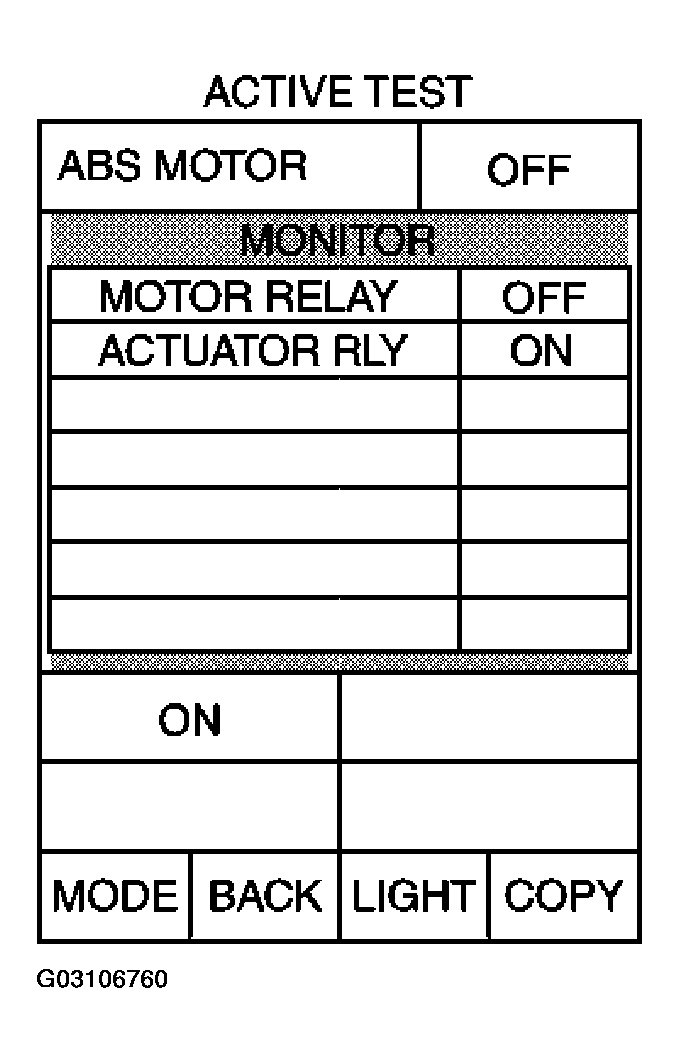

Touch "ON" and "OFF" on the screen. Make sure ABS motor relay operates as shown in table below.
ABS MOTOR OPERATION
| Operation |
ON |
OFF |
| MOTOR RELAY |
ON |
OFF |
| ACTUATOR RELAY |
ON |
ON |
NOTE:
- If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
- "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
Courtesy of NISSAN MOTOR CO., U.S.A.
