Terminals and Reference Value for Steering Lock unit

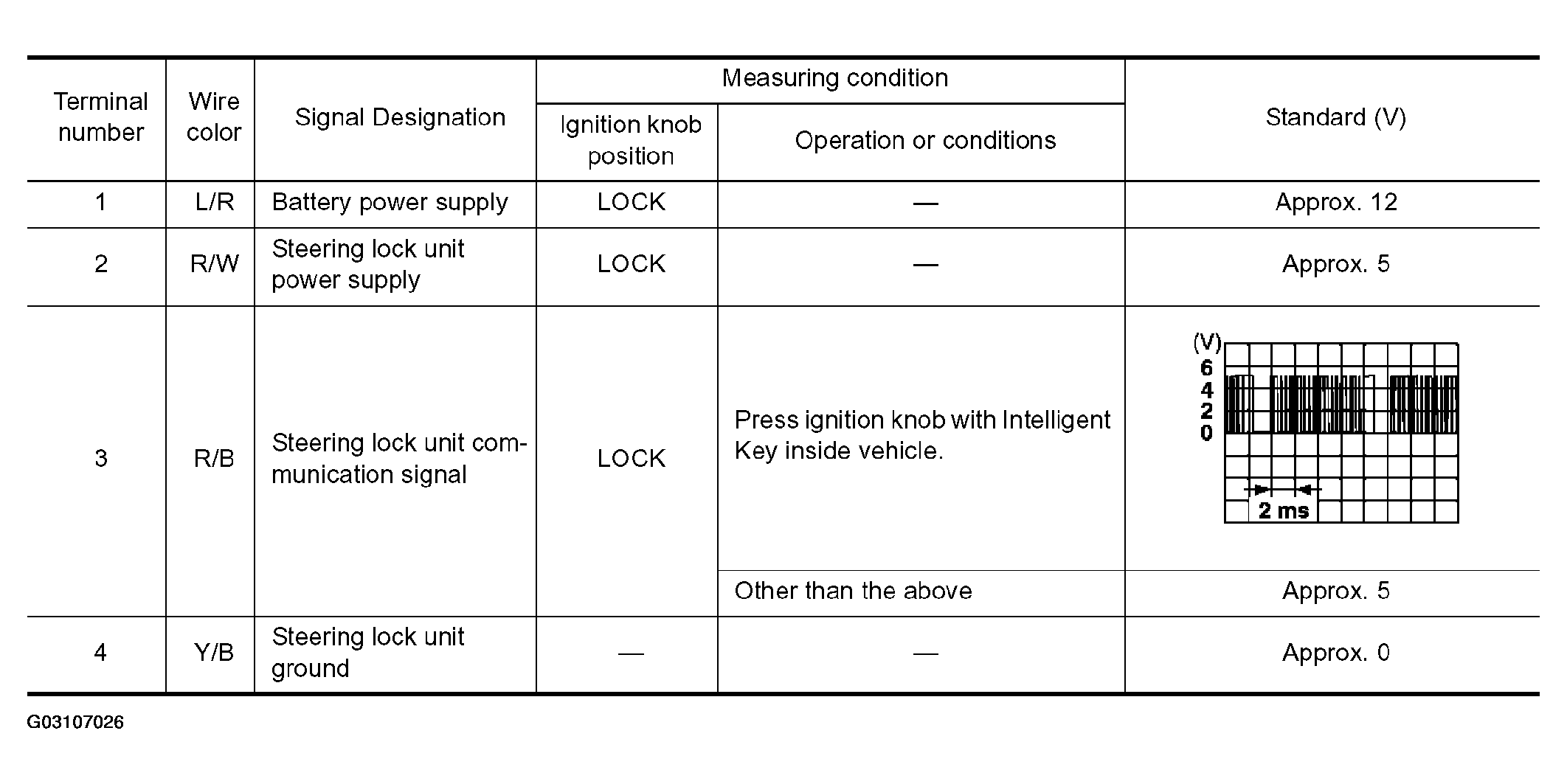

Fig 1: Steering Lock Unit Terminals And Reference Value
G03107026Courtesy of NISSAN MOTOR CO., U.S.A.
