Monitored Item

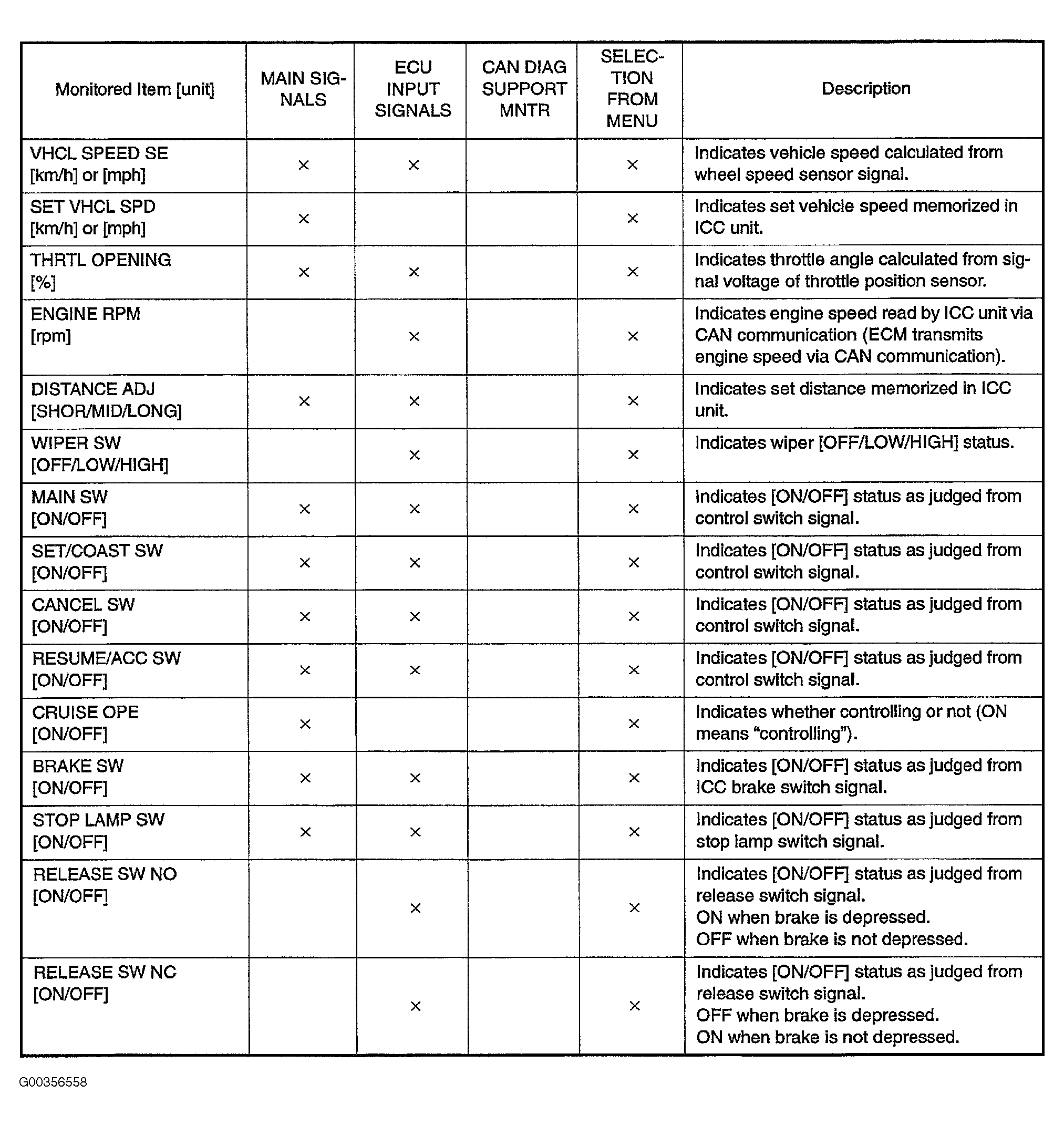

Fig 1: Identifying Monitored Item Chart (1 Of 3)
G00356558Courtesy of NISSAN MOTOR CO., U.S.A.

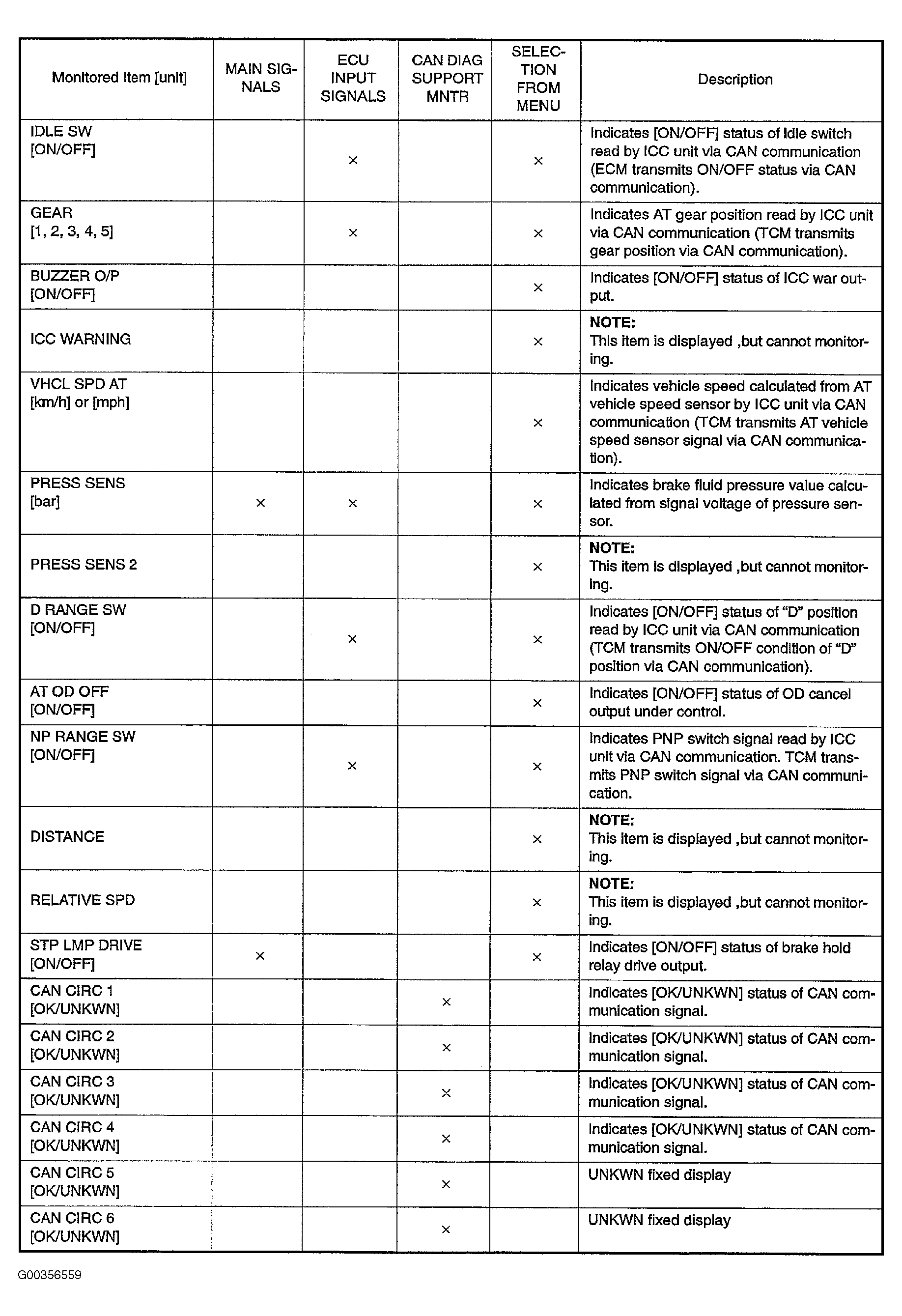

Fig 2: Identifying Monitored Item Chart (2 Of 3)
G00356559Courtesy of NISSAN MOTOR CO., U.S.A.

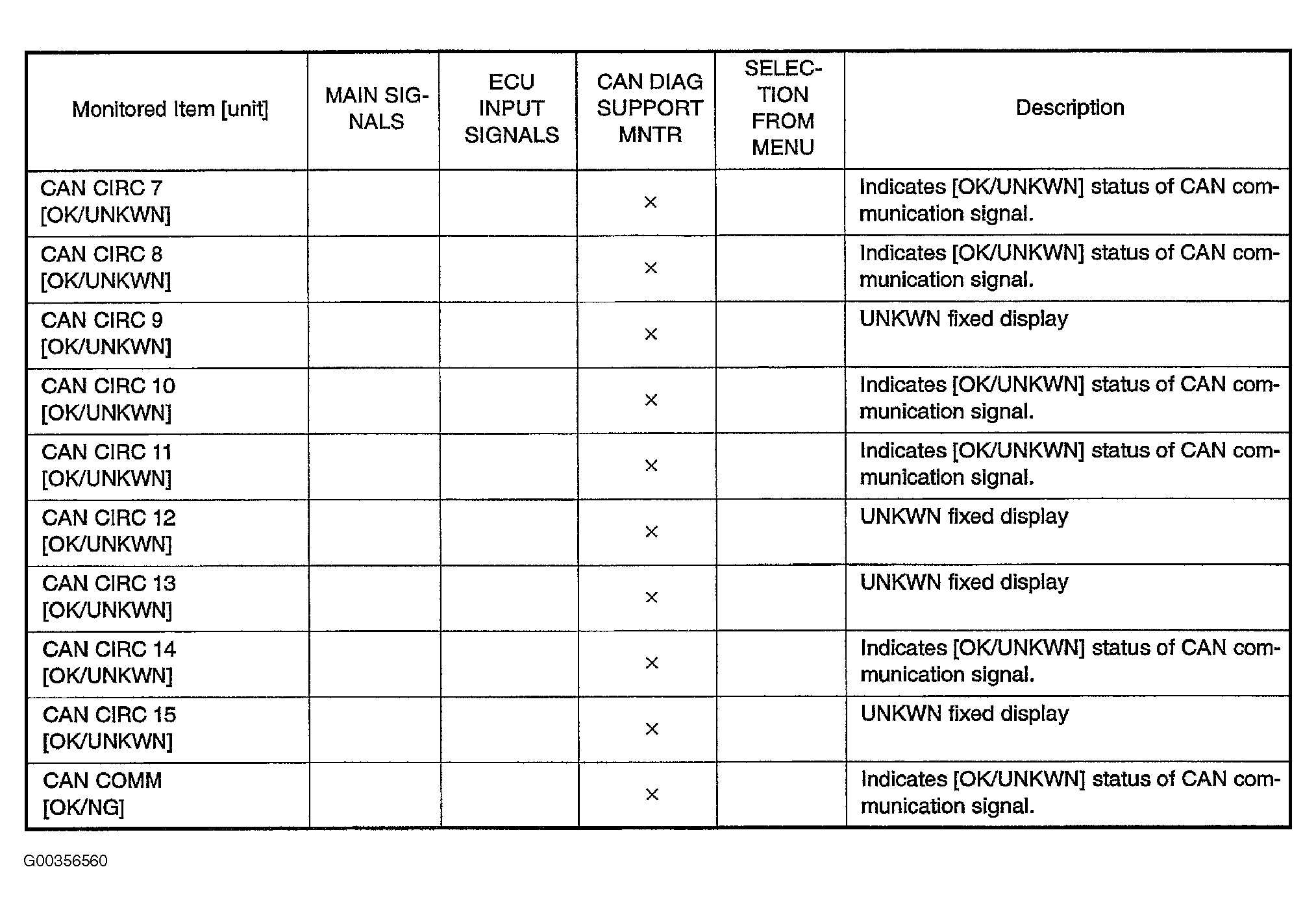

Fig 3: Identifying Monitored Item Chart (3 Of 3)
G00356560Courtesy of NISSAN MOTOR CO., U.S.A.
