Check For Distance Switch

  1. Start the engine.
  2. Press the ON/OFF switch for less than 1.5 seconds.
  3. Press the DISTANCE switch.
  4. Check if the set distance indicator changes display in order of: LONG-MIDDLE-SHORT.
    NOTE: The set distance indicator shows "LONG" immediately after the engine starts.

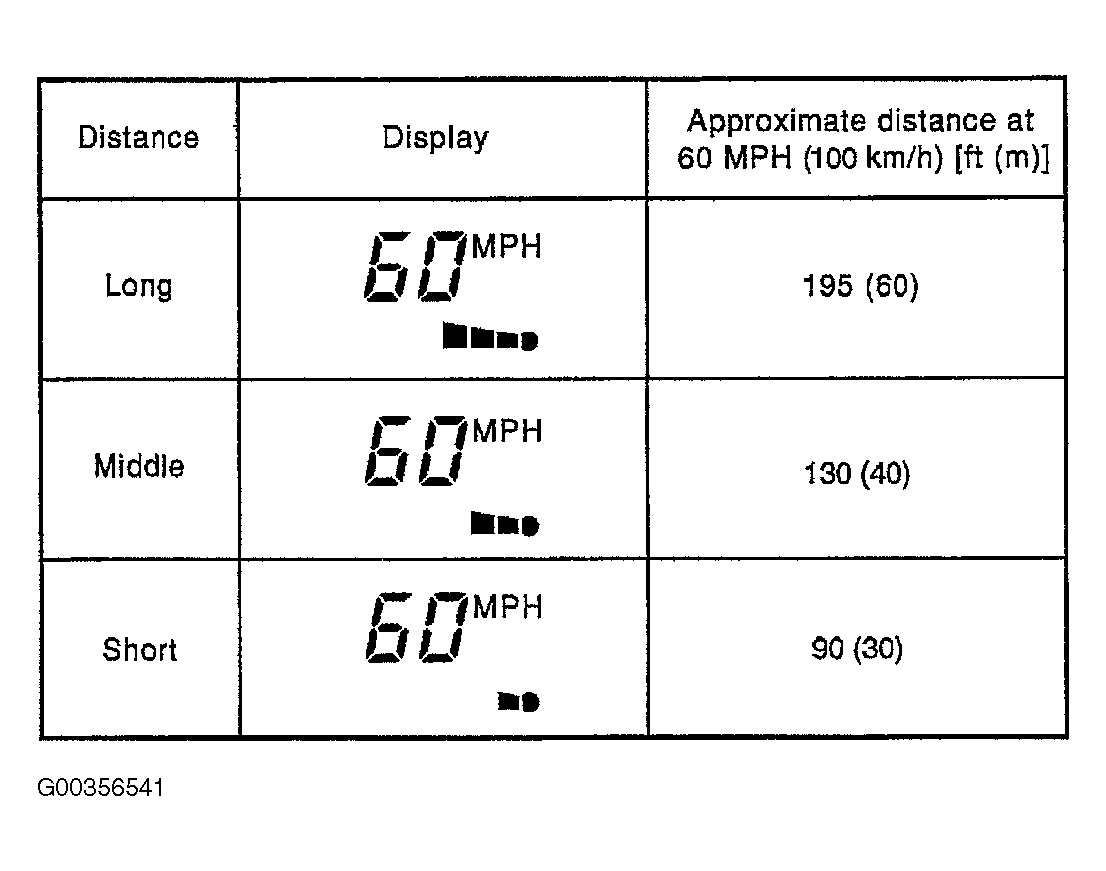

    Fig 1: Identifying Distance Indicator Display
    G00356541Courtesy of NISSAN MOTOR CO., U.S.A.
