Map Display

Function of each icon is as follows:

Azimuth indication.
Position marker.
- The tip of the arrow shows the current location. The shaft of the arrow indicates the direction in which the vehicle is traveling.
GPS reception signal (indicates current reception conditions).
Distance display (shows the distance in a reduced scale).

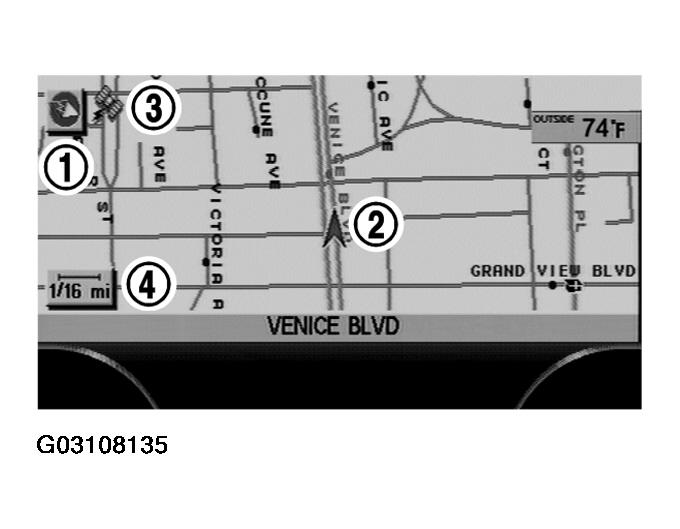

Fig 1: Map Display
Courtesy of NISSAN MOTOR CO., U.S.A.
