Active Test Mode

For ACTIVE TEST mode descriptions, see Fig 1.

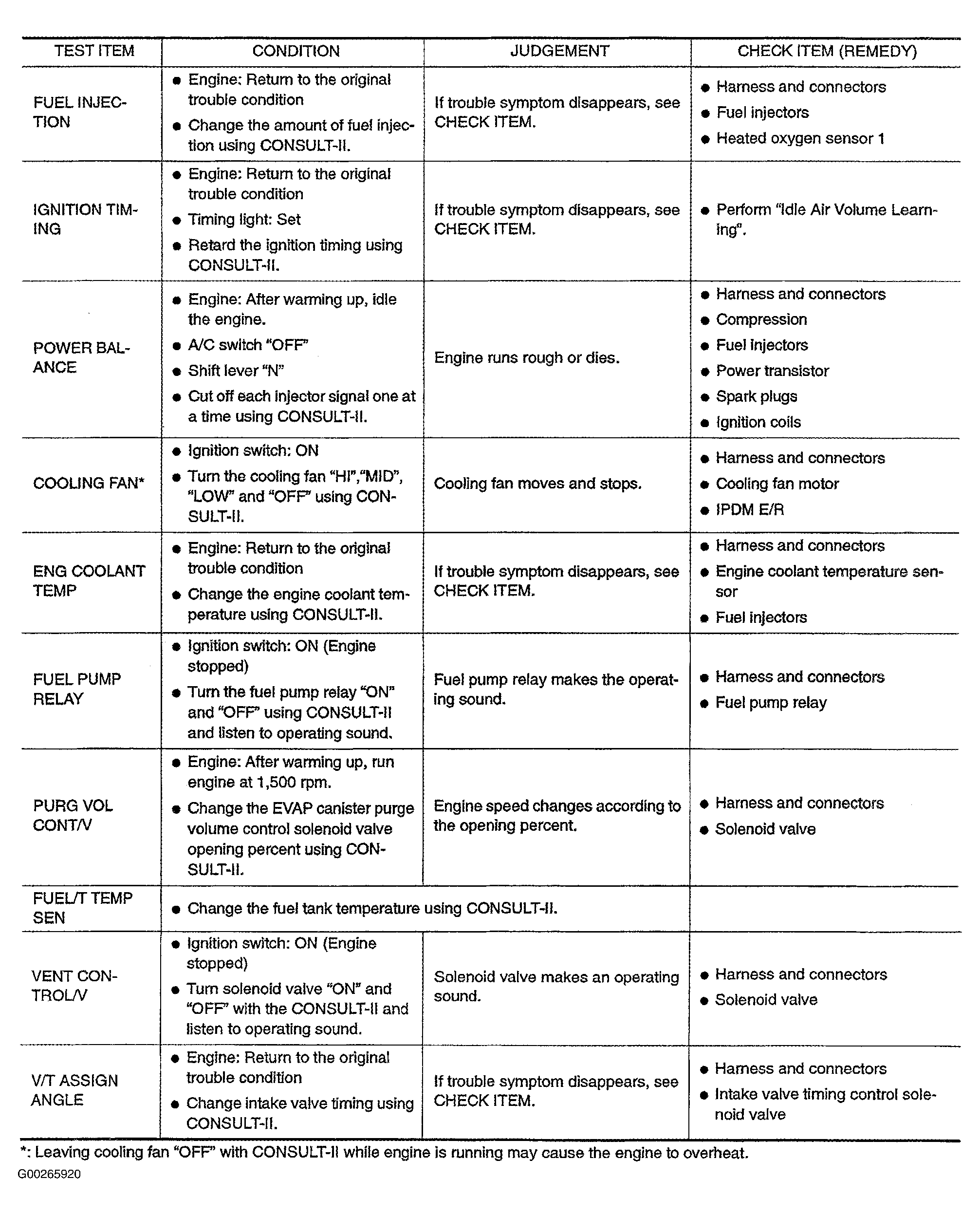

Fig 1: Identifying Active Test Mode
G00265920Courtesy of NISSAN MOTOR CO., U.S.A.
