Component Inspection

For ICC brake switch testing, see Fig 1.

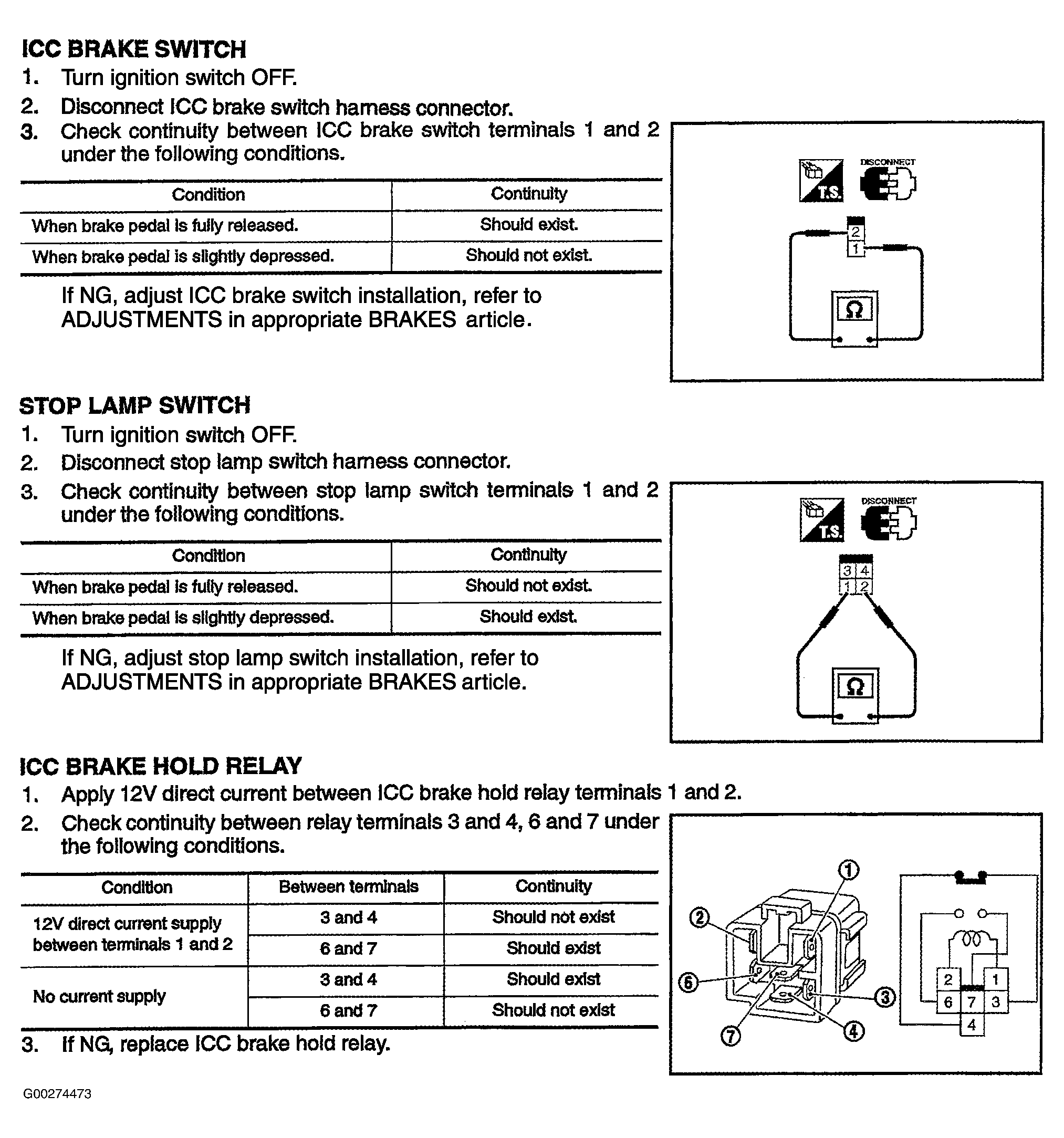

Fig 1: Testing ICC Brake Switch, Stop Lamp Switch & ICC Brake Hold Relay
G00274473Courtesy of NISSAN MOTOR CO., U.S.A.
