Data Monitor Mode Reference Values

For Heated Oxygen Sensor (HO2S) 2 heater control data monitor mode specification data, see Fig 1.

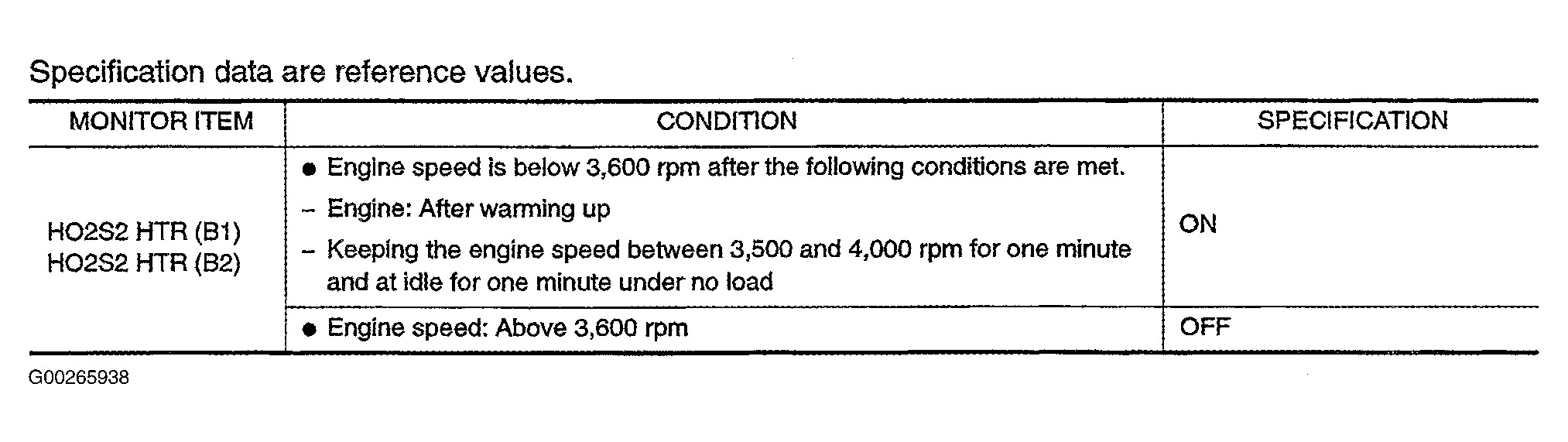

Fig 1: Identifying HO2S2 Heater Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
