Example Of Basic Operational Errors

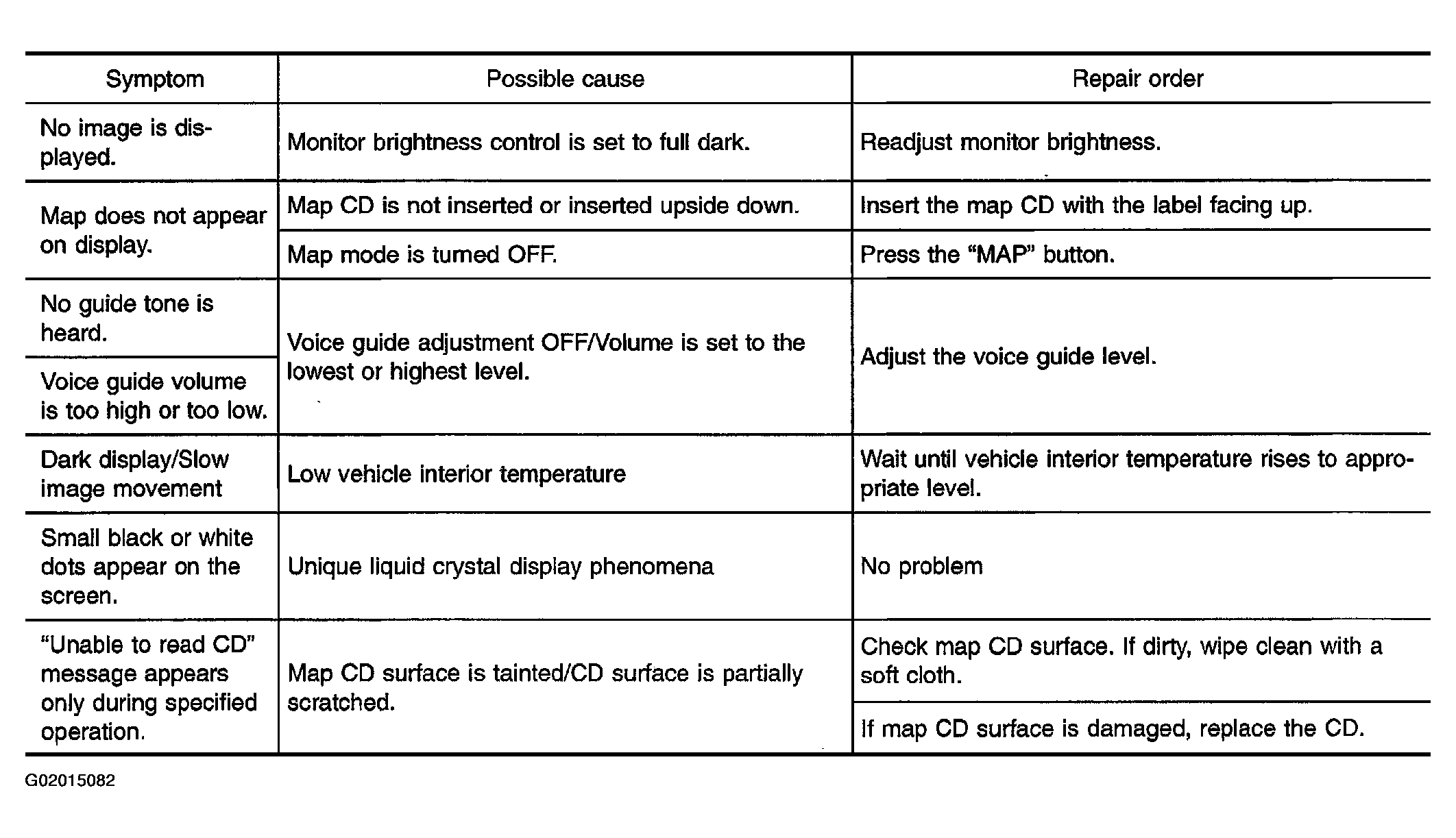

Fig 1: Basic Operational Symptom Example Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Area place names are not displayed.

If area place names do not appear on the map display, these names may not be available. Use the BIRDVIEW(R) flat surface map display function. Display output may differ. Note the items related to BIRDVIEW(R) below.

• Priority is given to the display of place names in the direction of vehicle travel.
• Extended display of vehicle travel distance for both surfaces and steering angle (flat directional changes). This phenomenon disappears after the display image has been replaced by another one.
• The names of route and area might vary between the immediate front area and distance front area.
• Alphanumeric display characters are limited to maintain display simplicity and clarity. Display details may differ with time and place.
• Identical place and road names may appear on the display at more than one location.
