Terminals And Reference Value For MULTIFUNCTION Switch

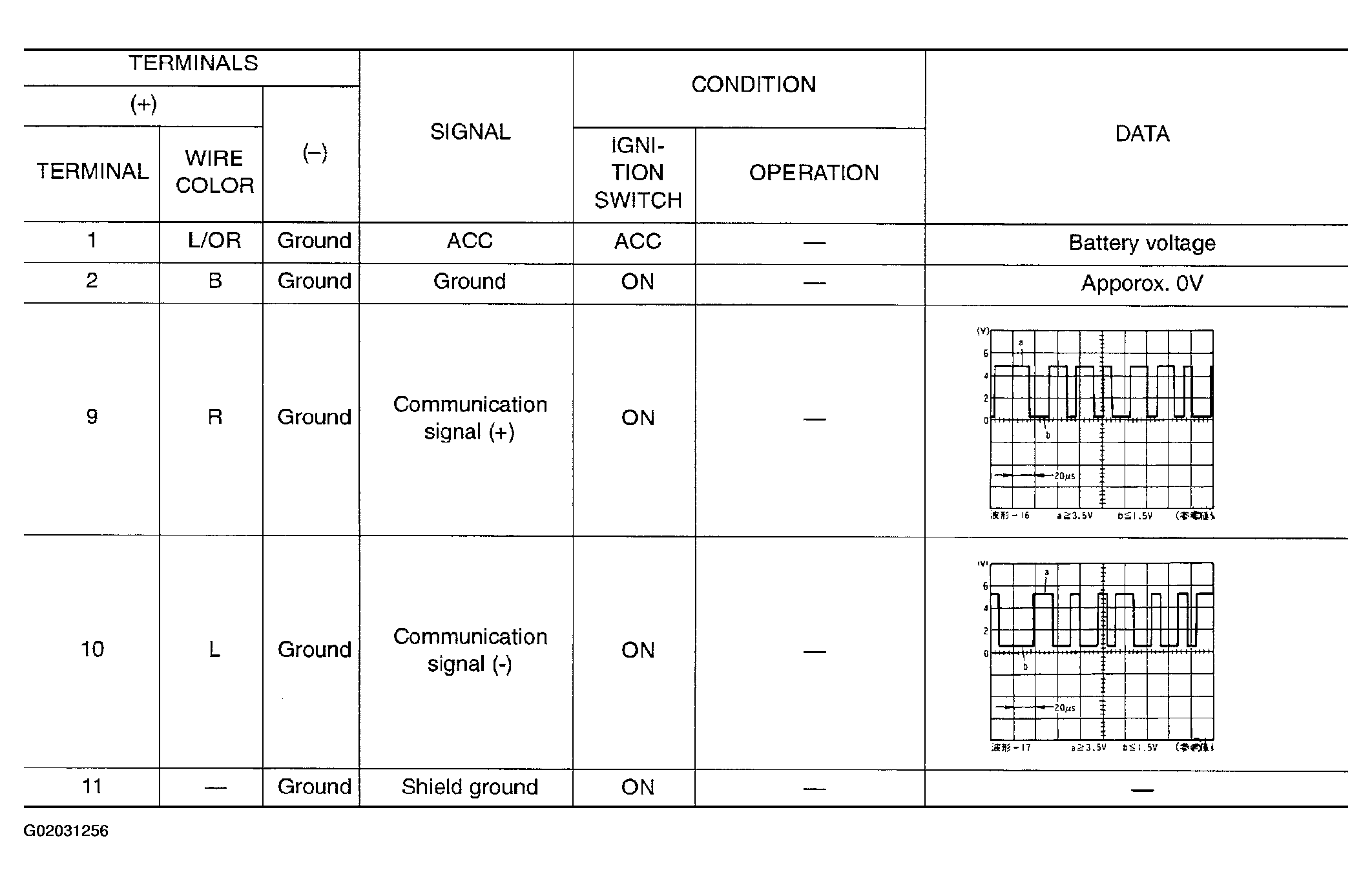

Fig 1: Terminals & Reference Value for Multifunction Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
