Removal And Installation Of Av Control Unit (Without Navigation System And Without Rear Control Switch)

  1. Remove cluster lid C. Refer toCLUSTER LID C .
  2. Remove warning chime. Refer to REMOVAL AND INSTALLATION OF WARNING CHIME  .
  3. Remove tire pressure warning control unit.
  4. Remove the screws (2), and remove AV control unit.

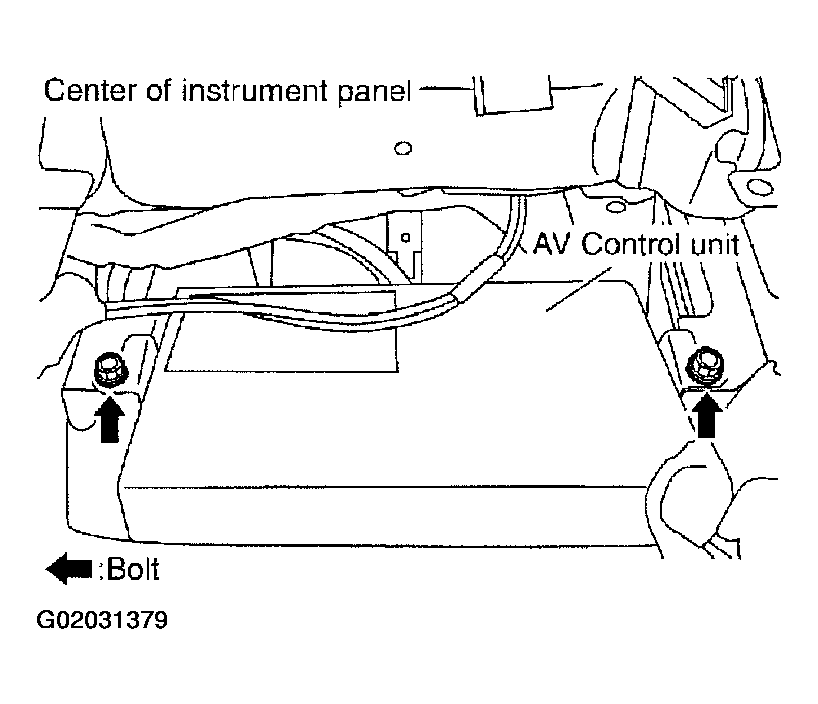

    Fig 1: Removing & Installing AV Control Unit (Without Navigation System & Without Rear Control Switch)
    G02031379Courtesy of NISSAN MOTOR CO., U.S.A.
