How To Perform Trouble Diagnoses For Quick And Accurate Repair
>>
Work Flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Work Flow

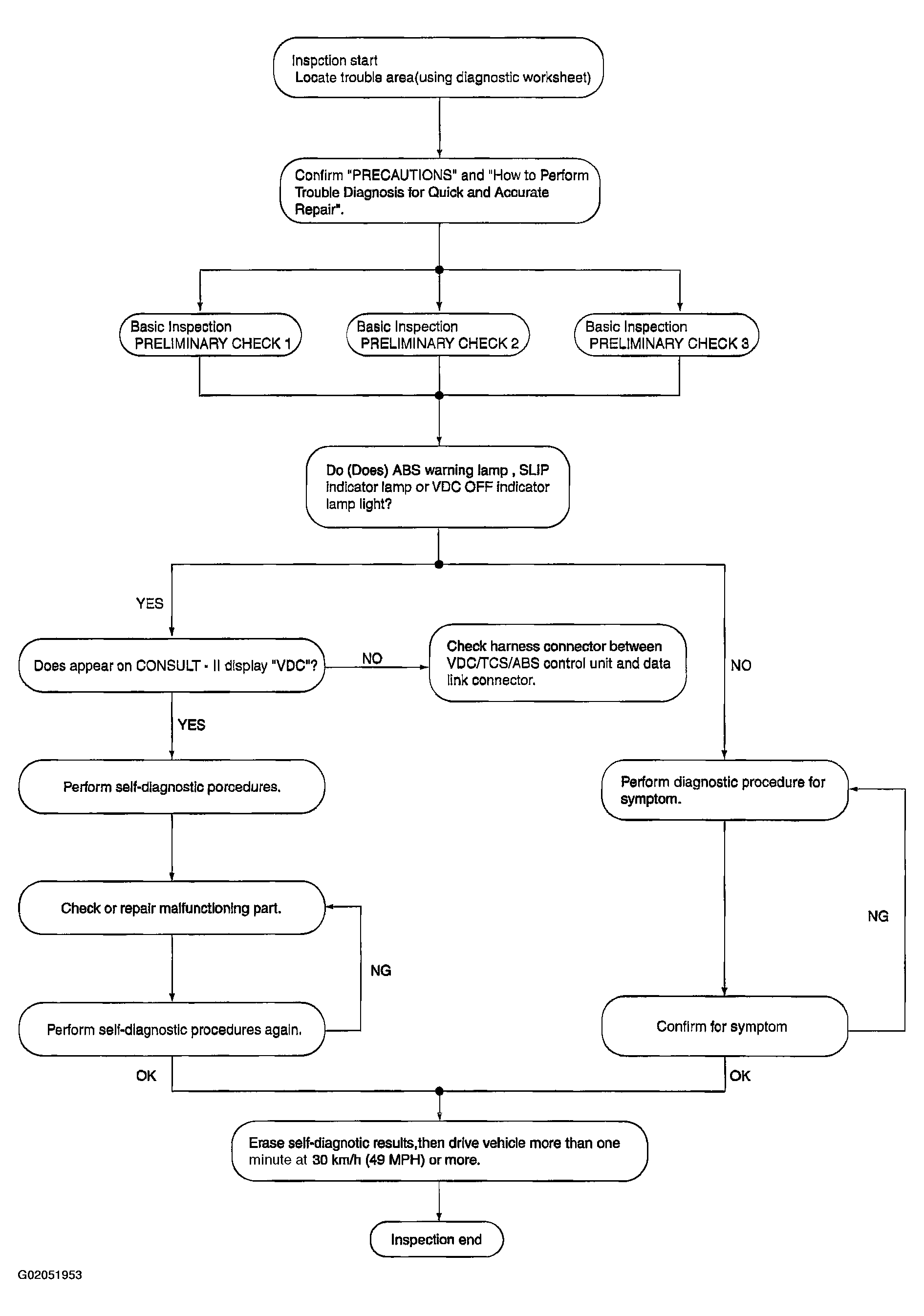

Fig 1: Displaying Work Flow Steps
Courtesy of NISSAN MOTOR CO., U.S.A.
