Rear Window Defogger: Schematic

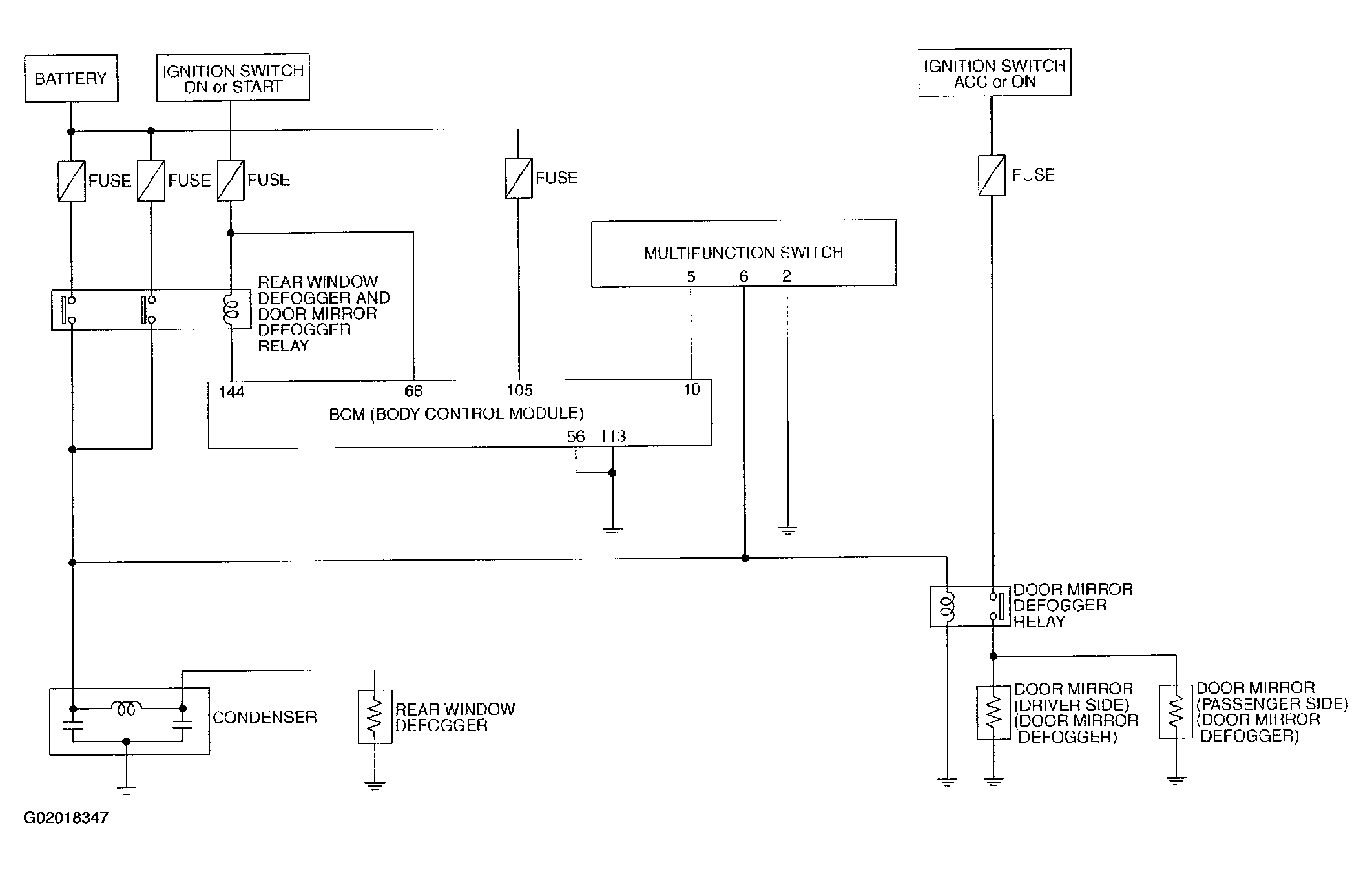

Fig 1: Rear Window Defogger Schematic Diagram

G02018347

Courtesy of NISSAN MOTOR CO., U.S.A.
