Wiring Diagram - TCS -

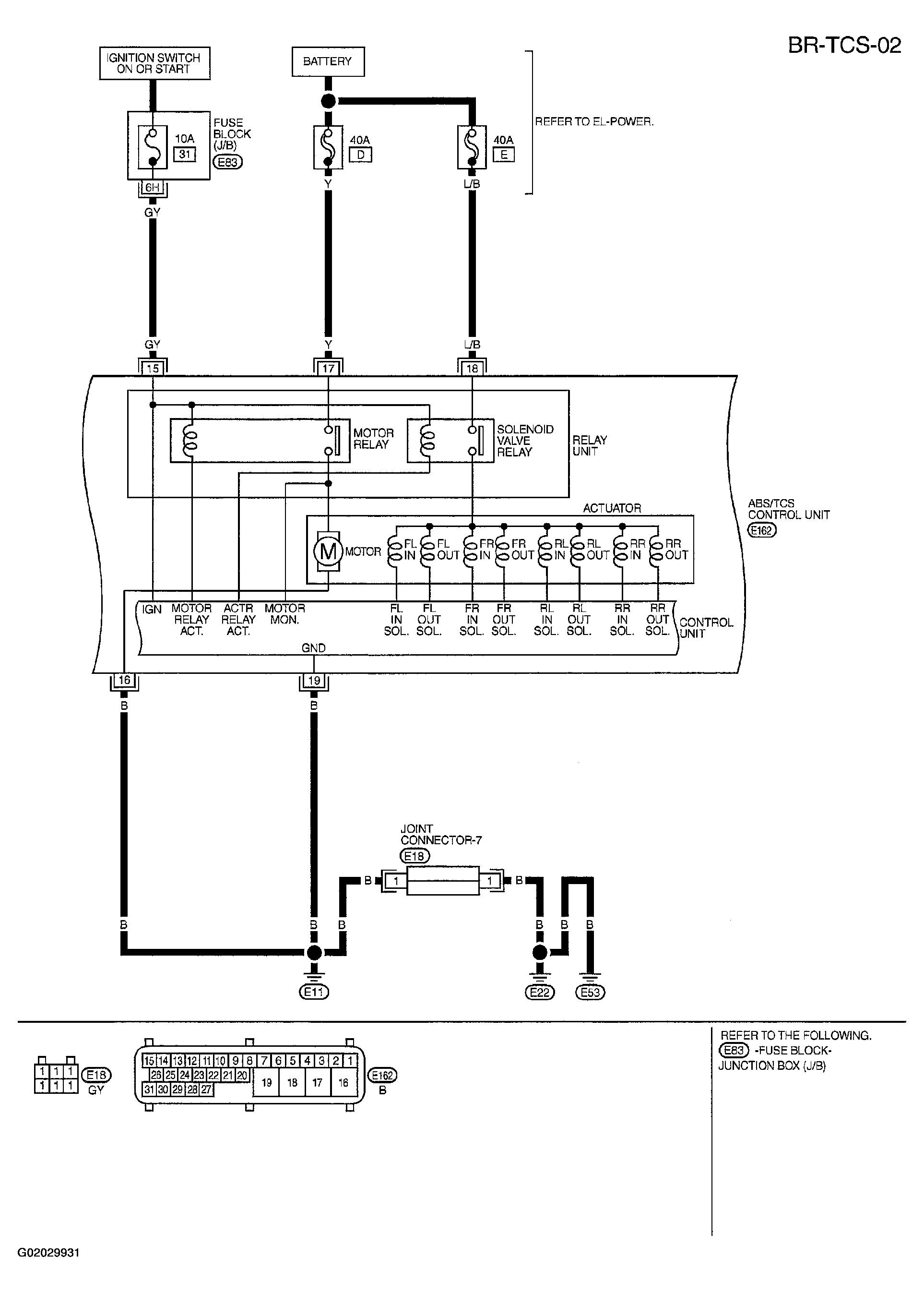

Fig 1: TCS Wiring Diagram And Connector Identification (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

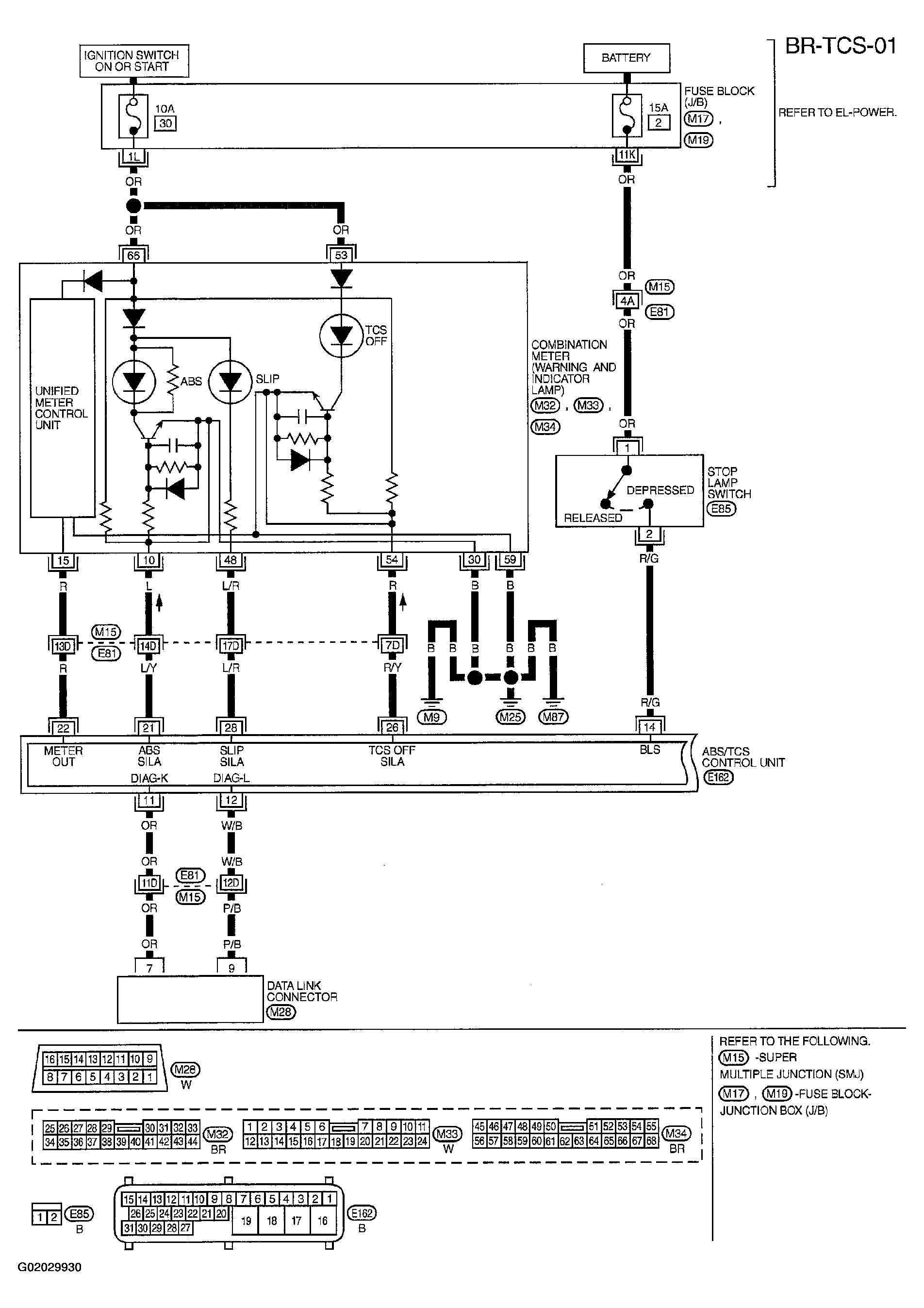

Fig 2: TCS Wiring Diagram And Connector Identification (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

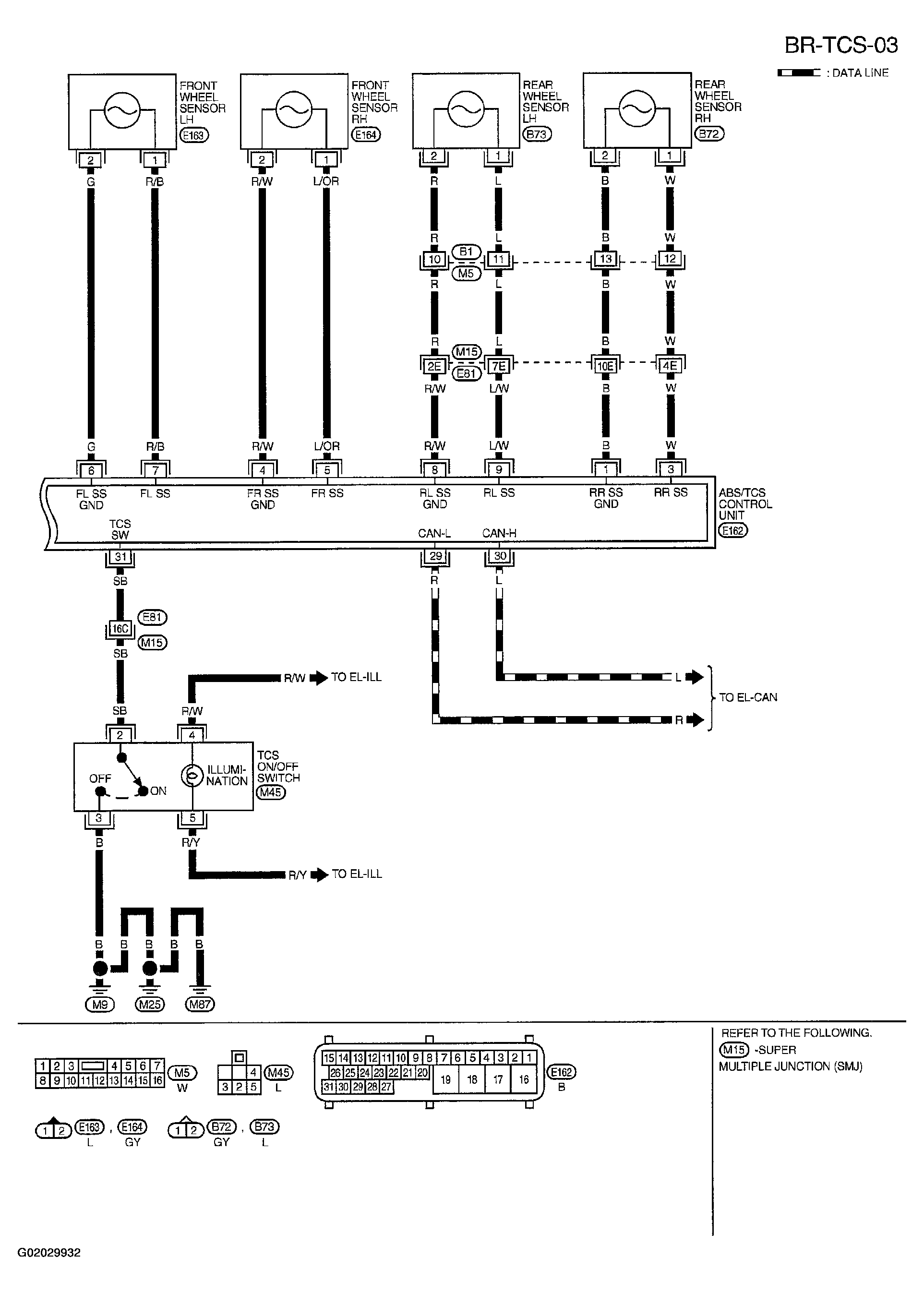

Fig 3: TCS Wiring Diagram And Connector Identification (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

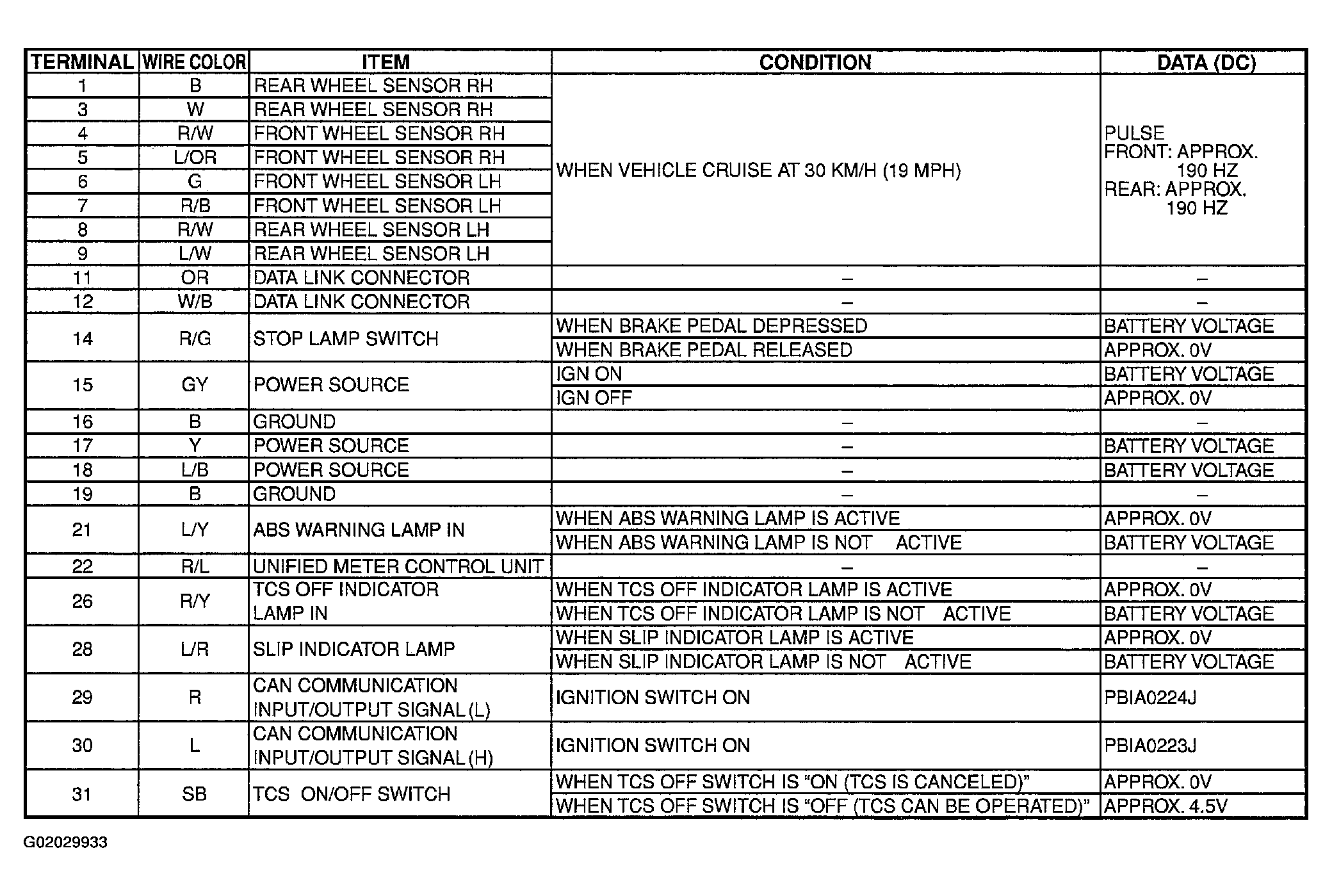

Fig 4: ABS/TCS Control Unit Terminals Reference Chart
