Possible Causes

Fault conditions and possible causes are shown in illustration. See Fig 1.

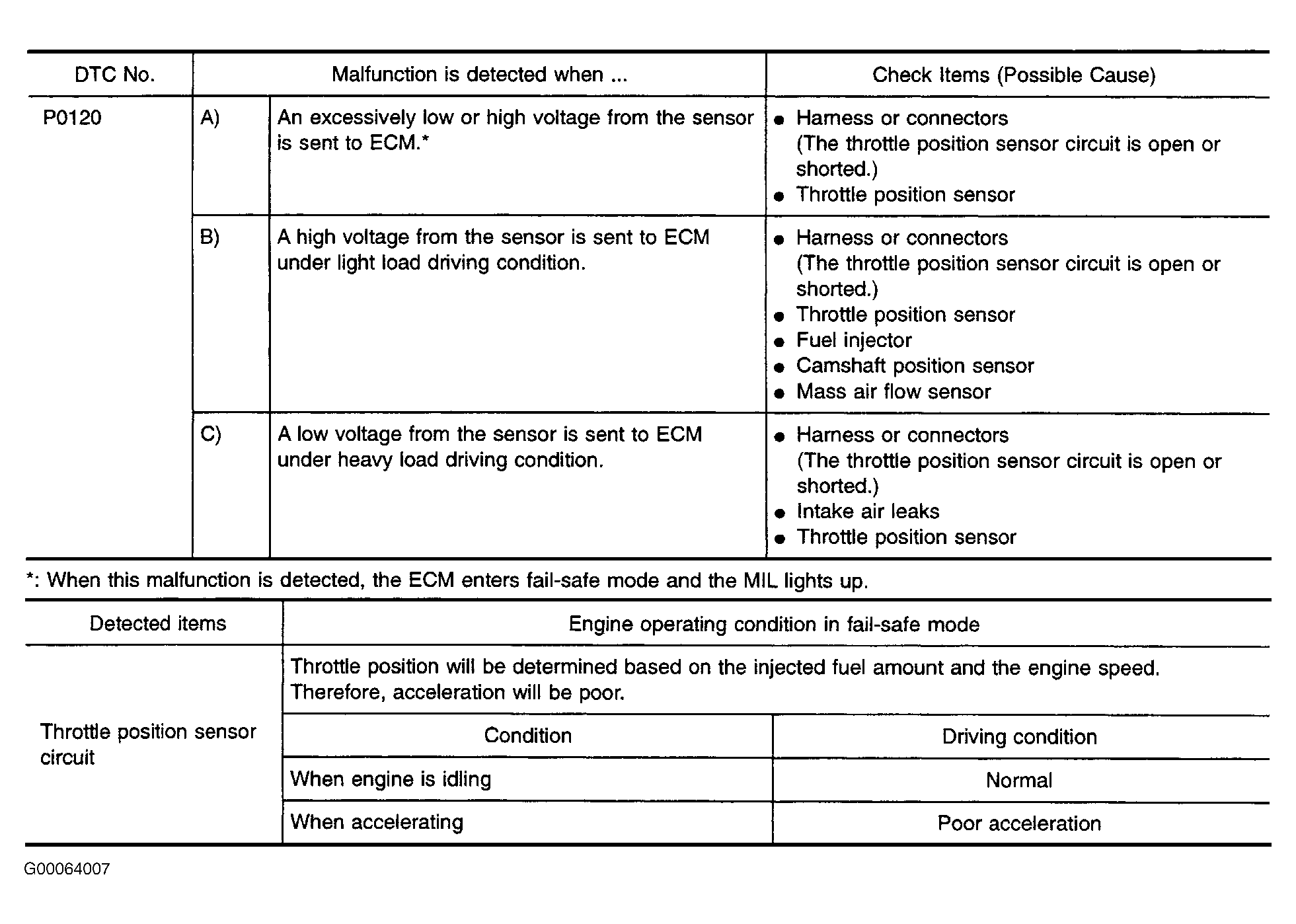

Fig 1: Fault Conditions & Possible Causes For DTC P0120
G00064007Courtesy of NISSAN MOTOR CO., U.S.A.
