Engine Cooling System: Radiator: Assembly

Install oil cooler.
Pay attention to direction of conical washer.

Fig 1: Identifying Conical Washer
Clean contact portion of tank.

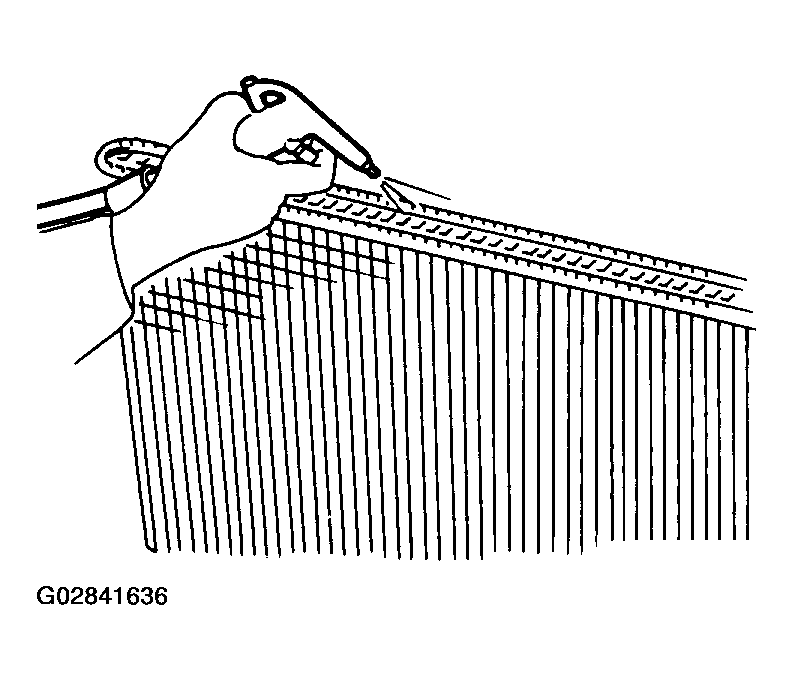

Fig 2: Cleaning Contact Portion Of Tank
Install sealing rubber.
Push it in with fingers.

Be careful not to twist sealing rubber.

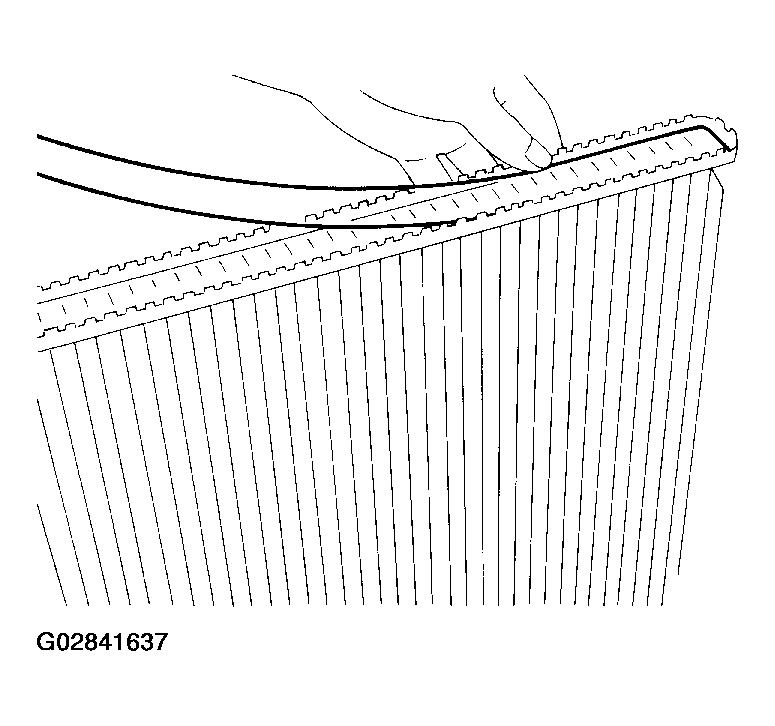

Fig 3: Installing Sealing Rubber
Caulk tank in specified sequence with Tool.

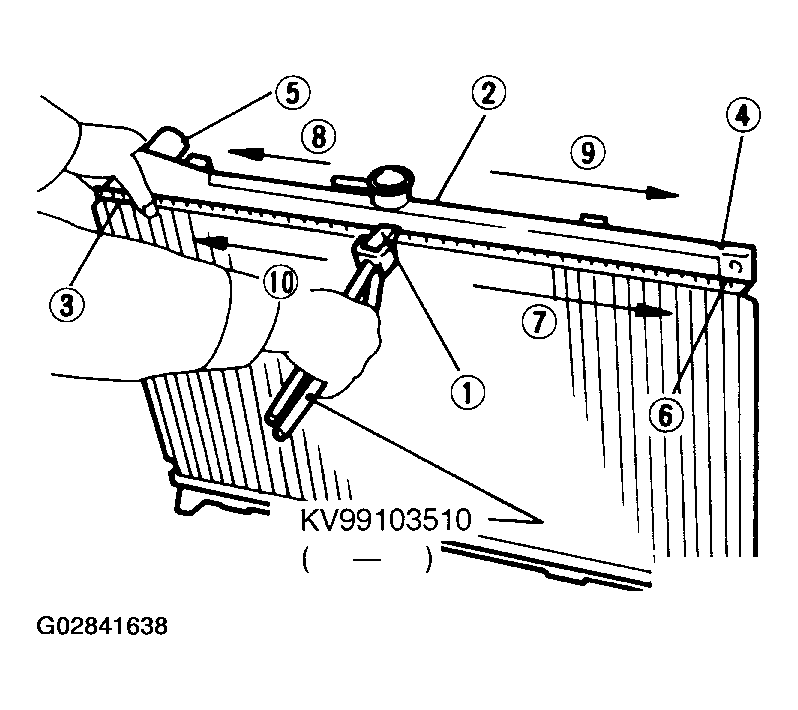

Fig 4: Caulking Tank

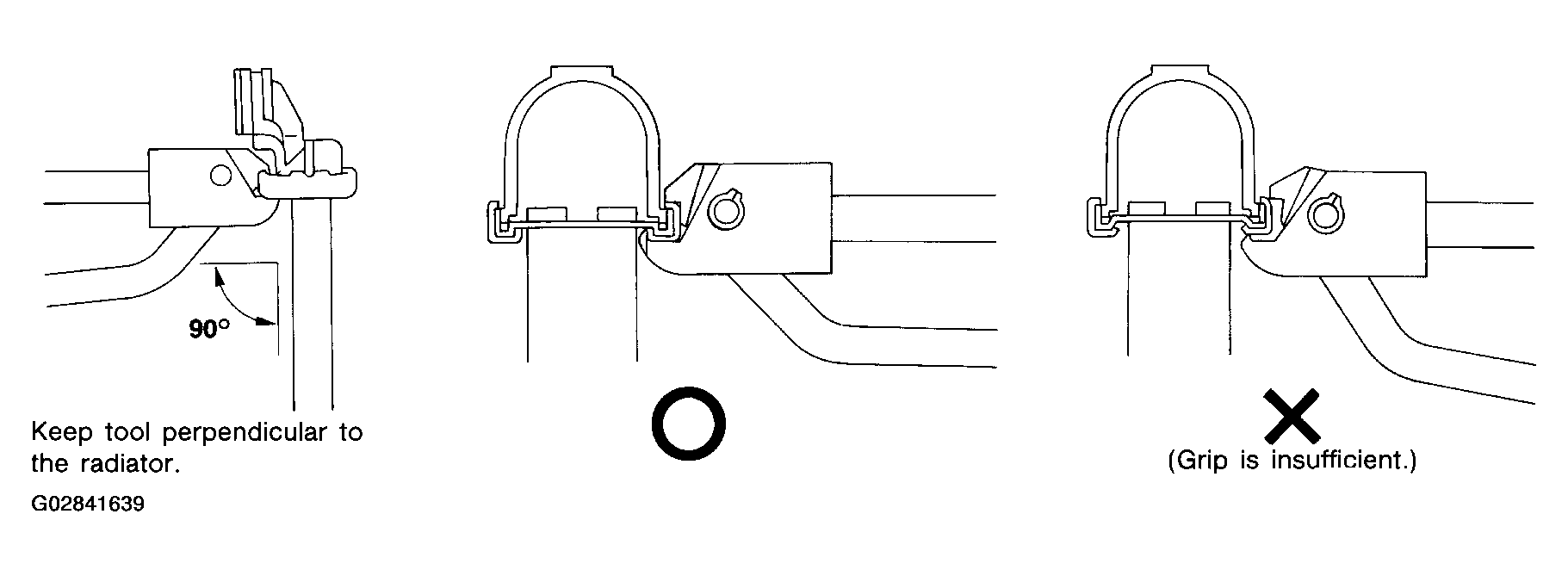

Fig 5: Identifying Correct Way Of Caulking Tank
- Use pliers in the locations where Tool cannot be used.

  Fig 6: Using Pliers In Hard-To-Reach Locations
Make sure that the rim is completely crimped down.
Standard height "H":

8.0 - 8.4 mm (0.315 - 0.331 in)
Confirm that there is no leakage.
Refer to INSPECTION .

Fig 7: Checking That Rim Is Completely Crimped Down
