Data Monitor Mode

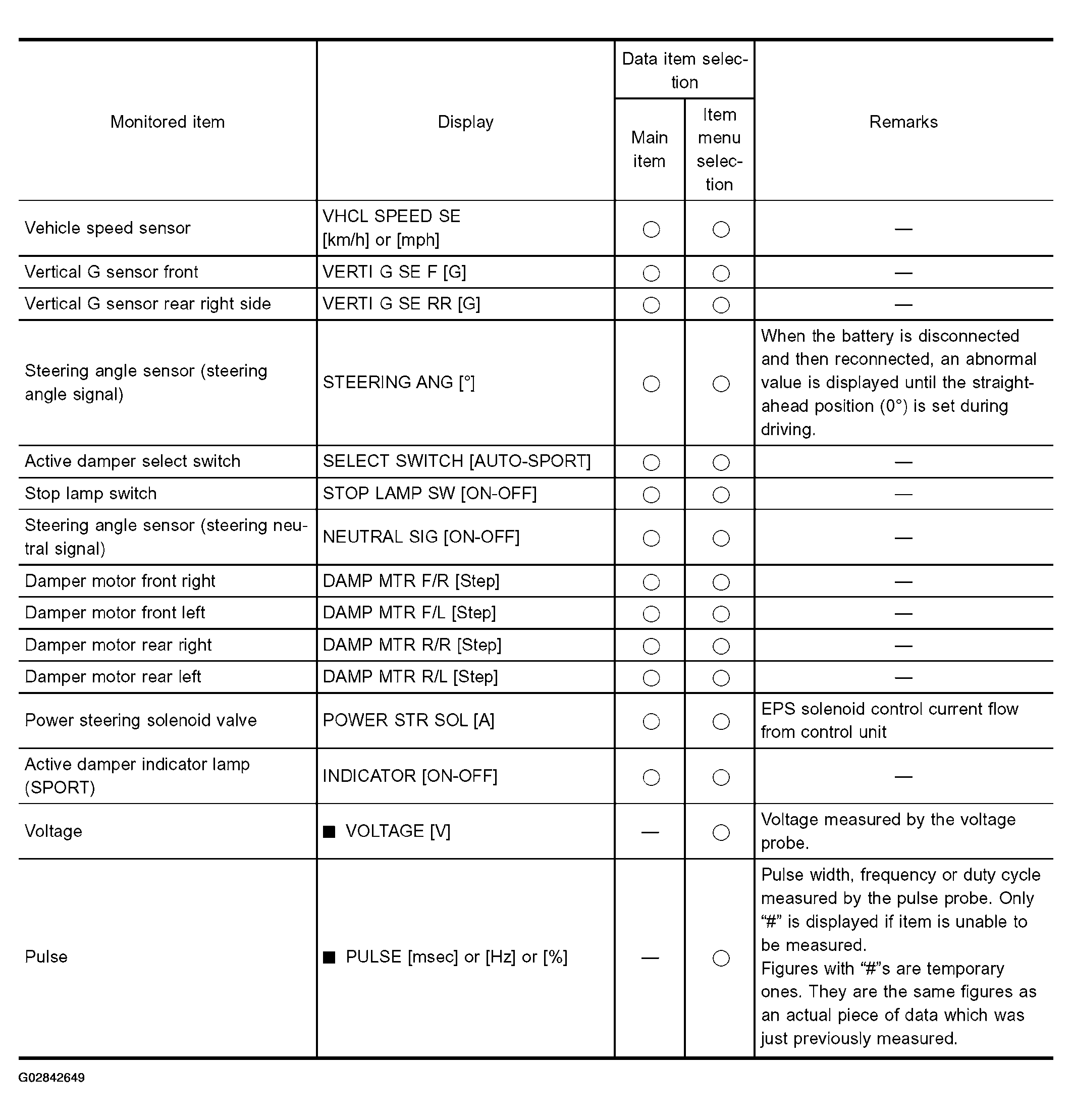

Fig 1: Data Monitor Mode Chart (1 Of 2)
G02842649

Specifications for control unit input and output signals Standard values emitted by CONSULT-II

Output signals refer to the data which are operated by the control unit. If an output circuit (harness) is broken, normal values are displayed.

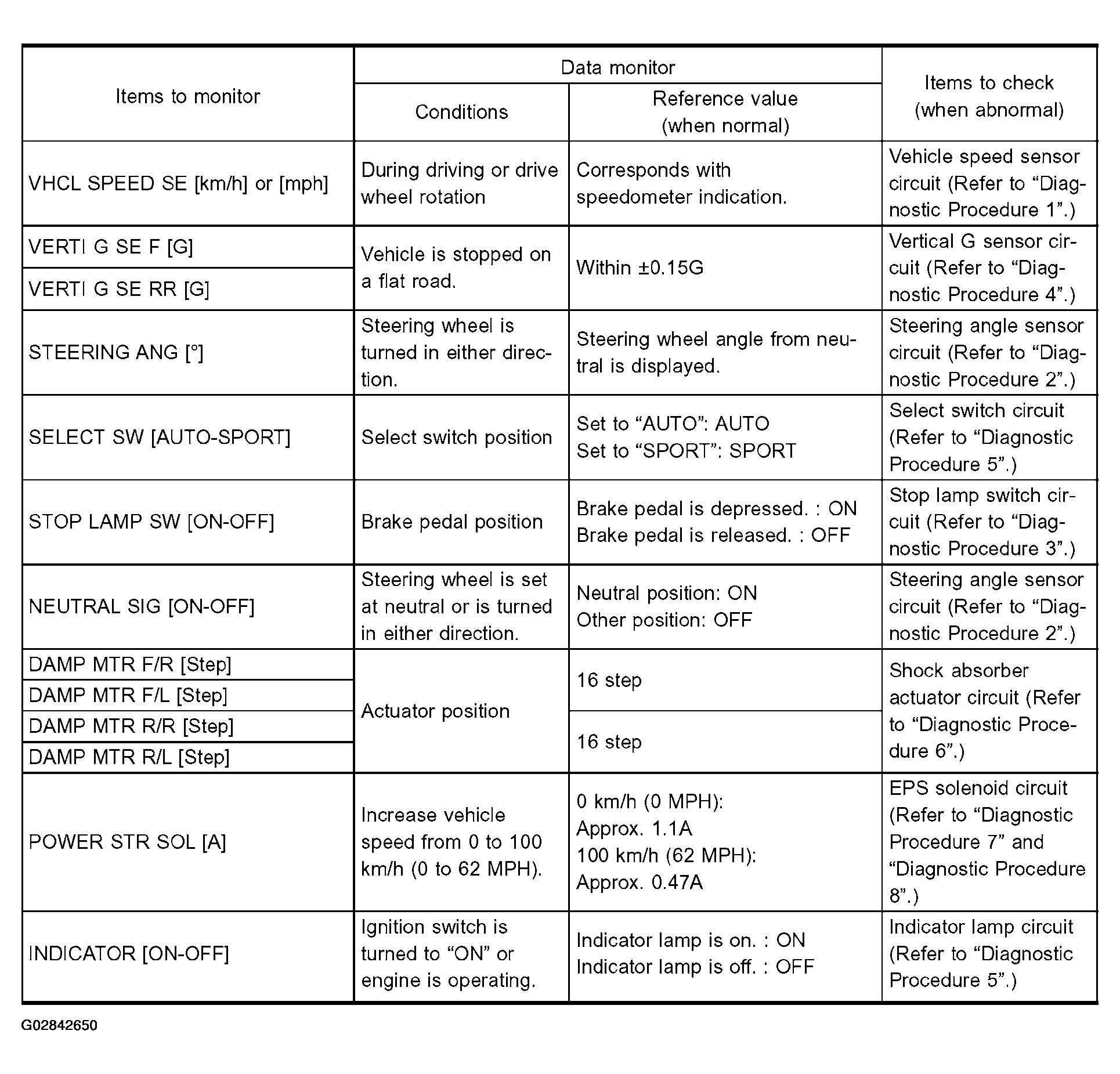

Fig 2: Data Monitor Mode Chart (2 Of 2)
G02842650
