Removal & Installation

Drain TCS operating fluid. Remove mounting nuts and remove TCS pump. See Figure . To install, reverse removal procedure. Tighten retaining bolts to 71-97 INCH lbs. (8-11 N.m). See Fig 1 .

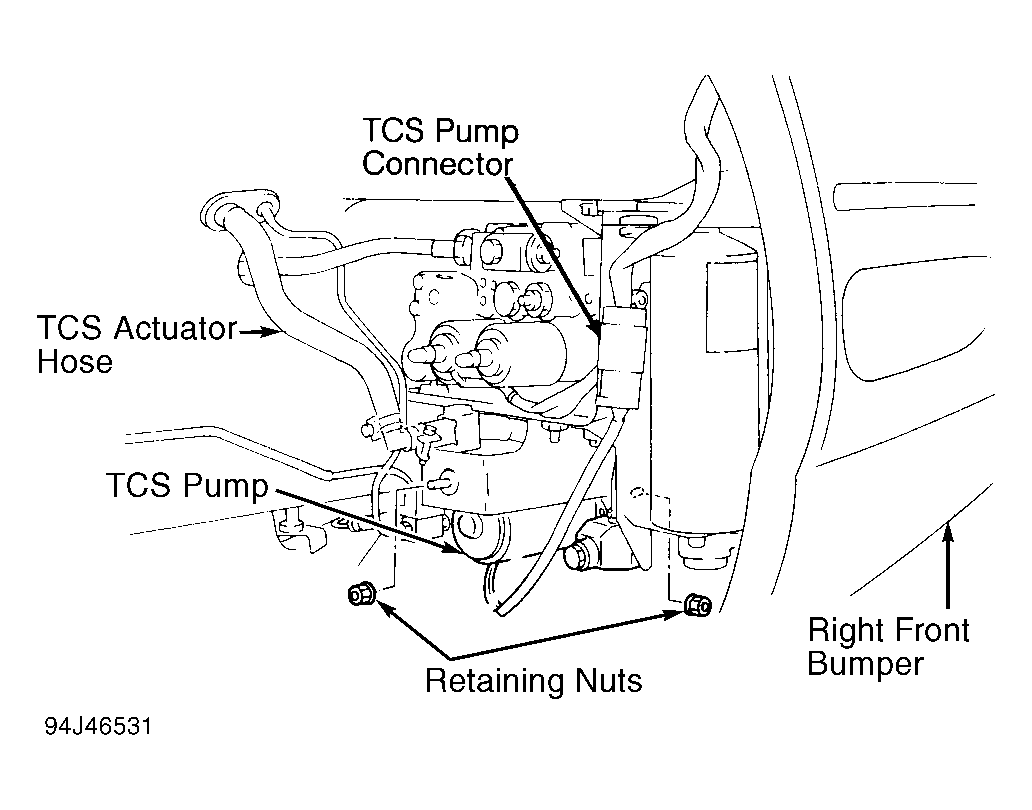

Fig 1: Installing TCS Pump

Courtesy of NISSAN MOTOR CO., U.S.A.
