Service Data and Specifications

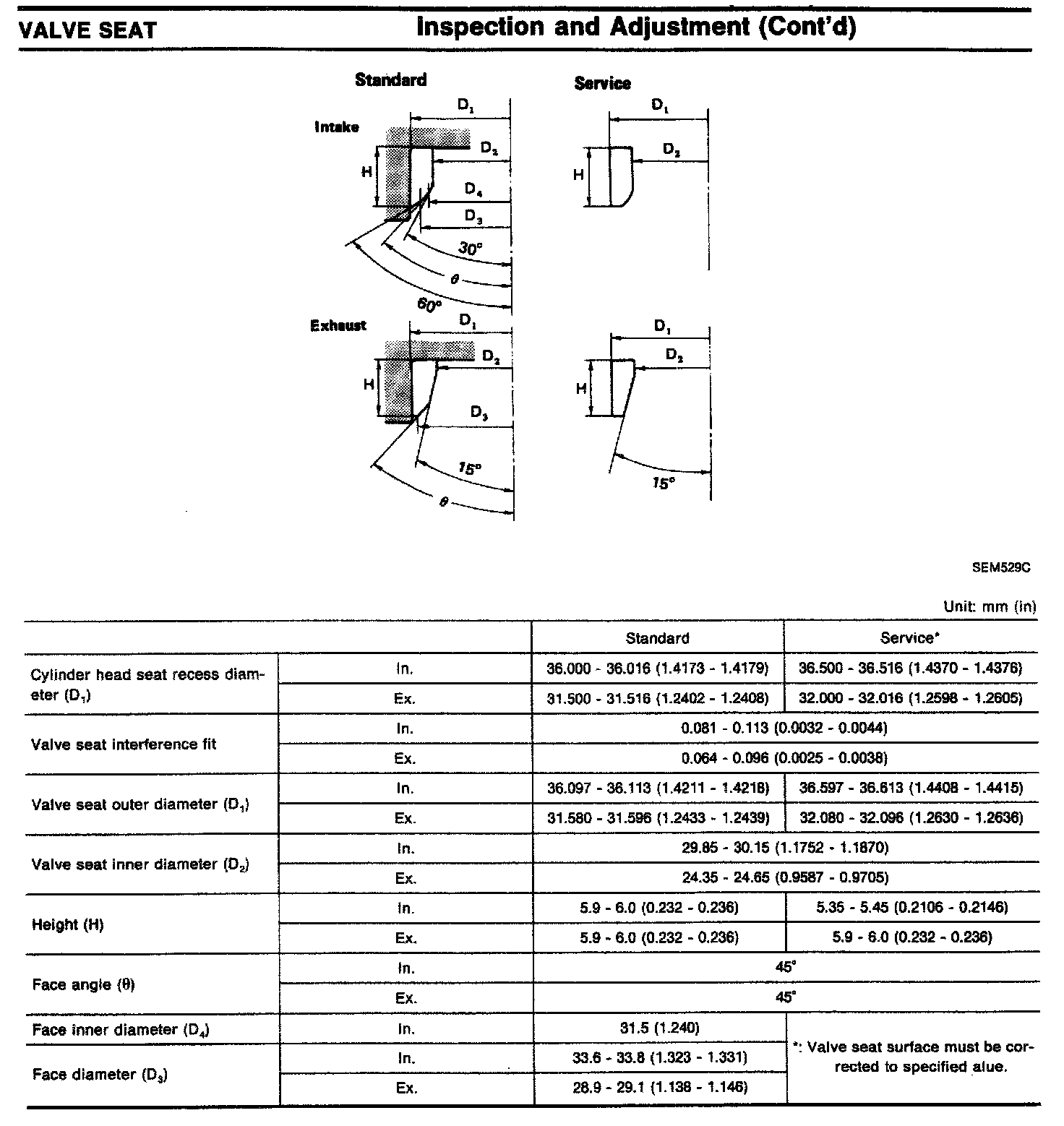

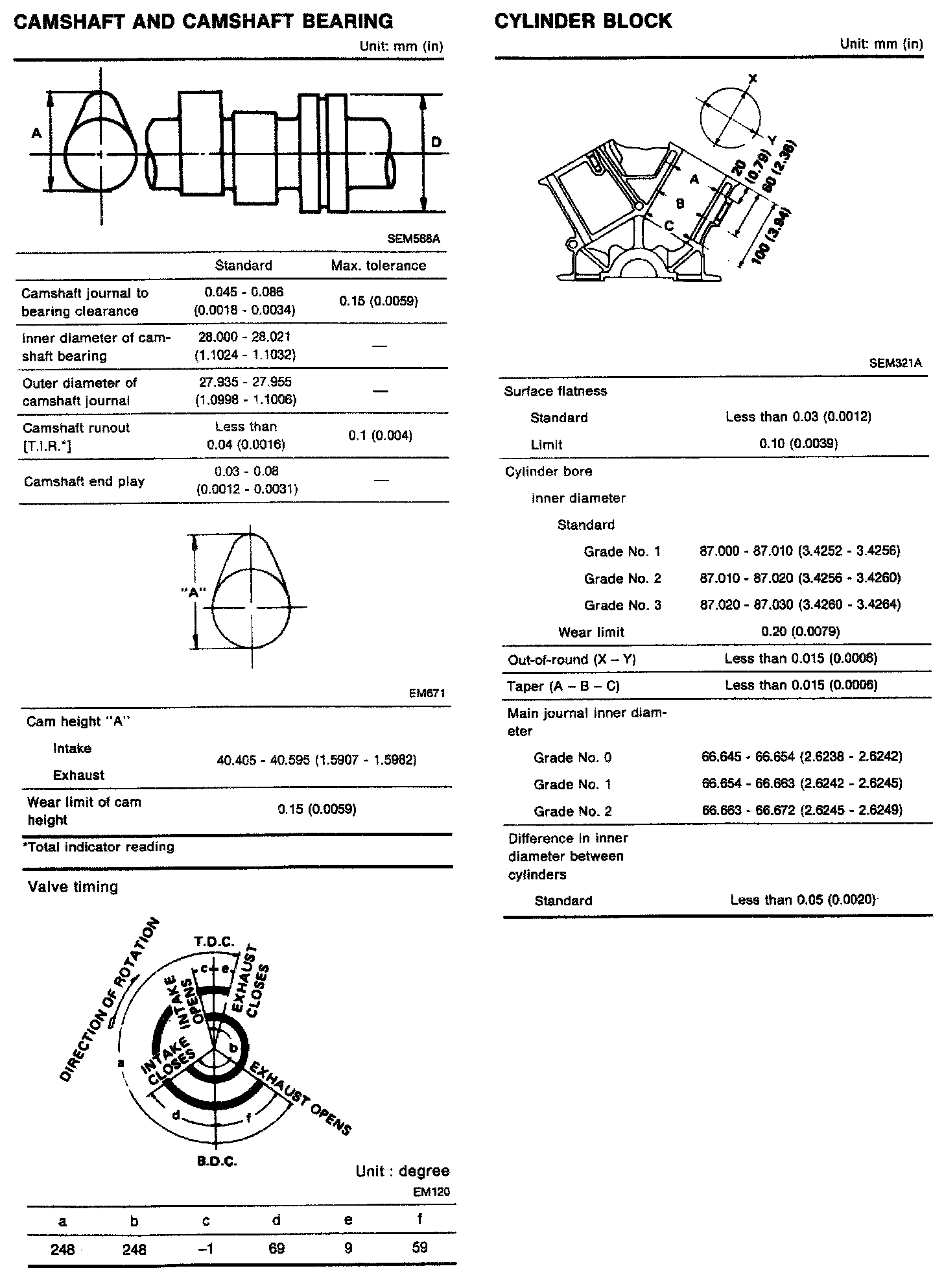

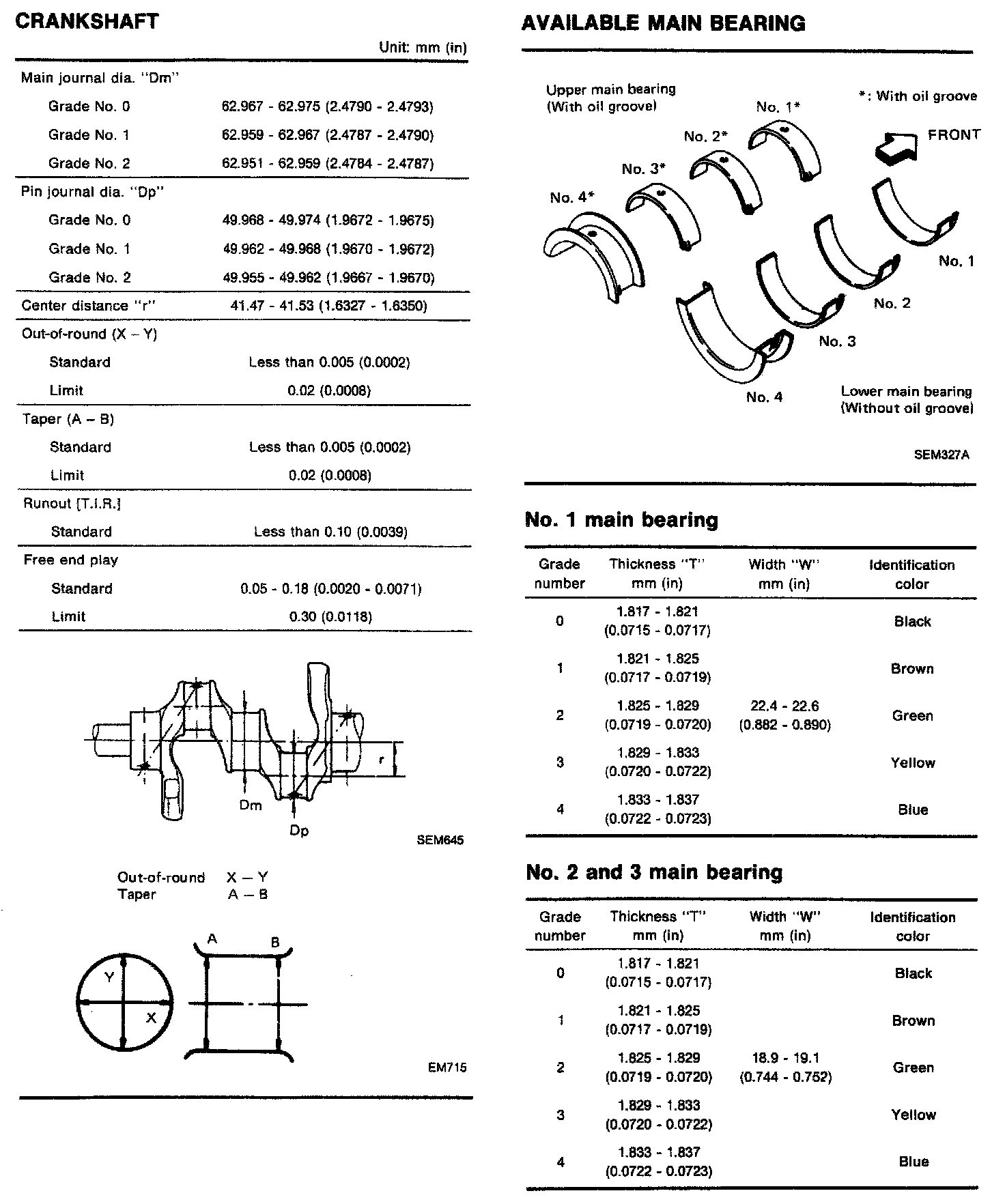

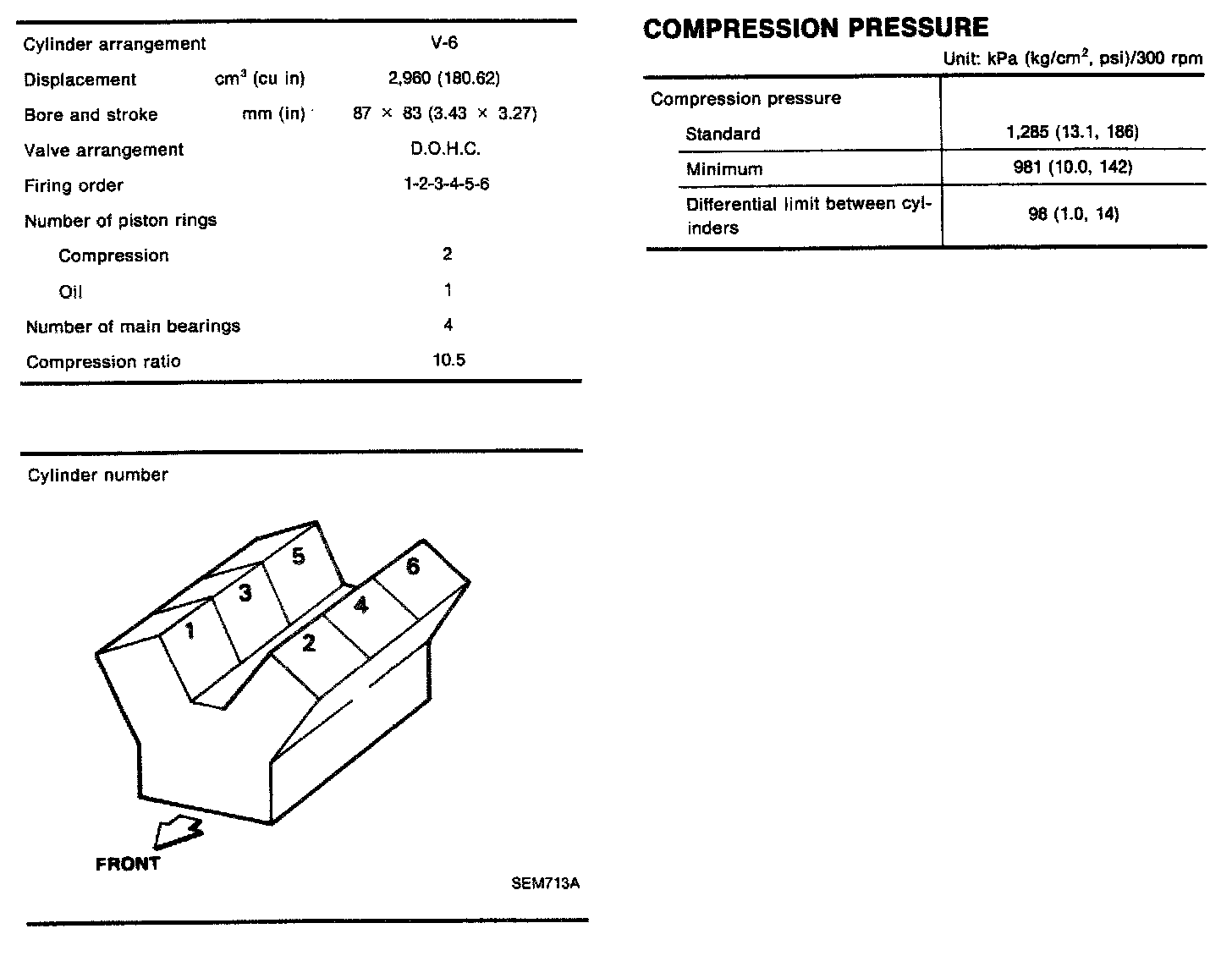

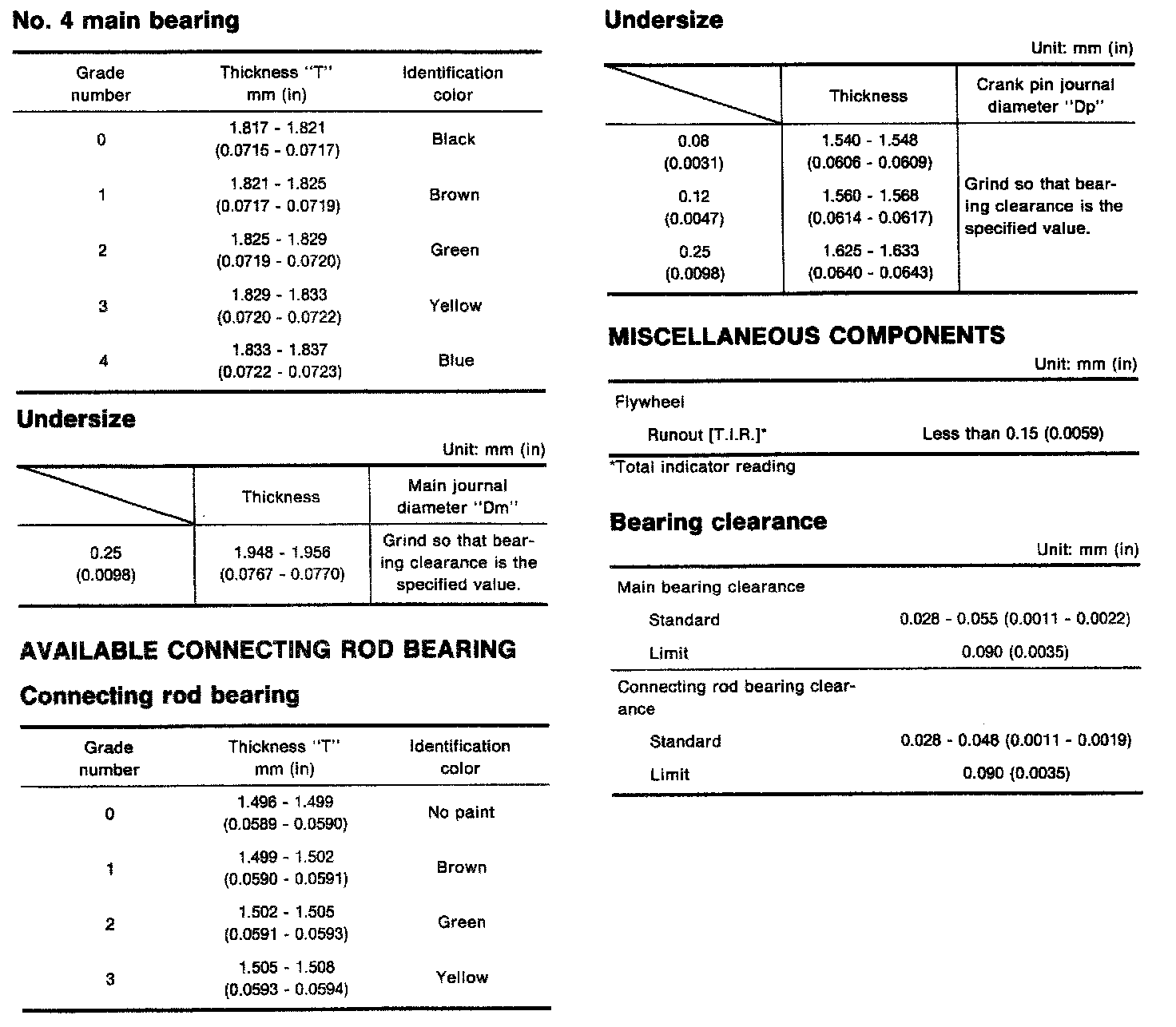

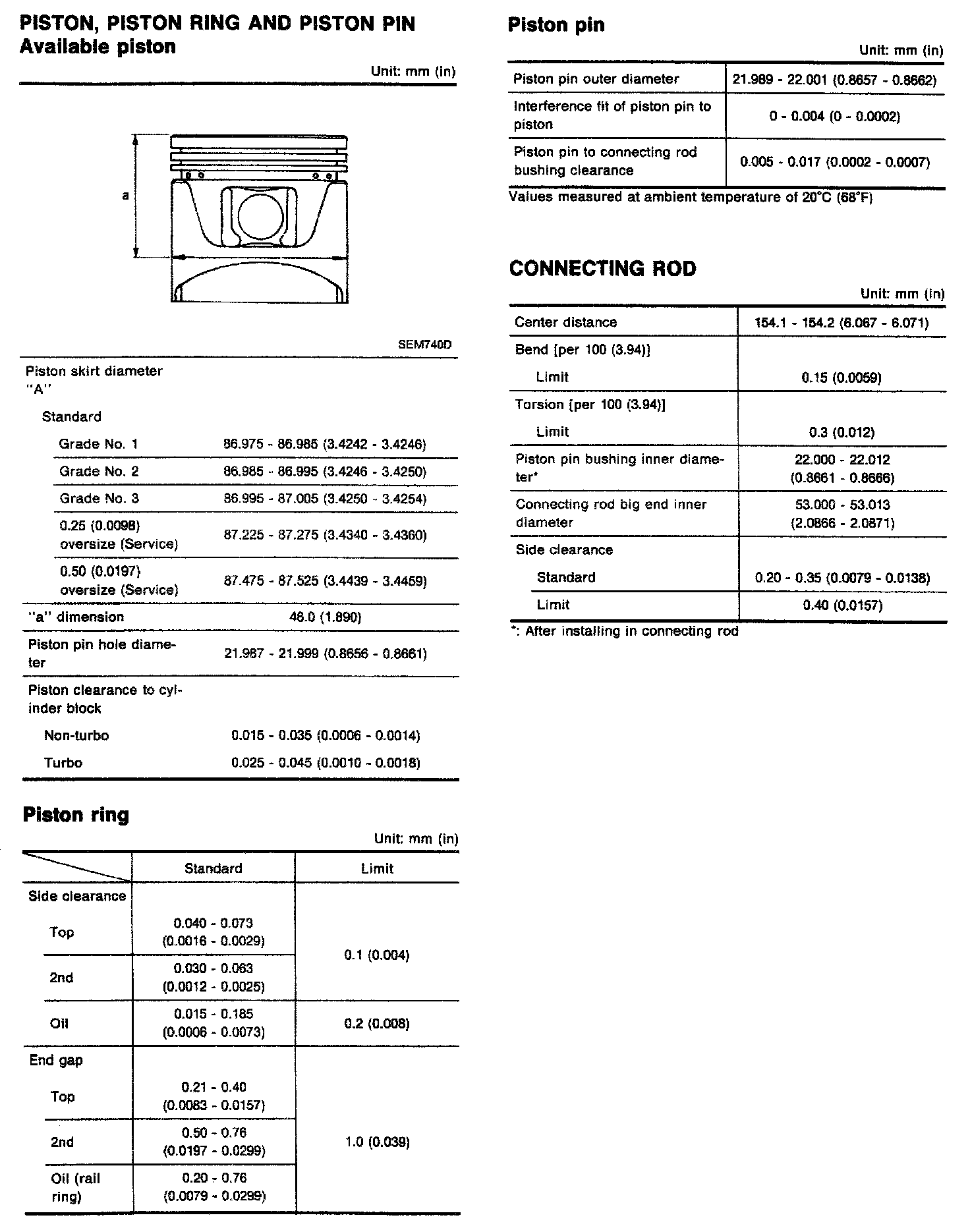

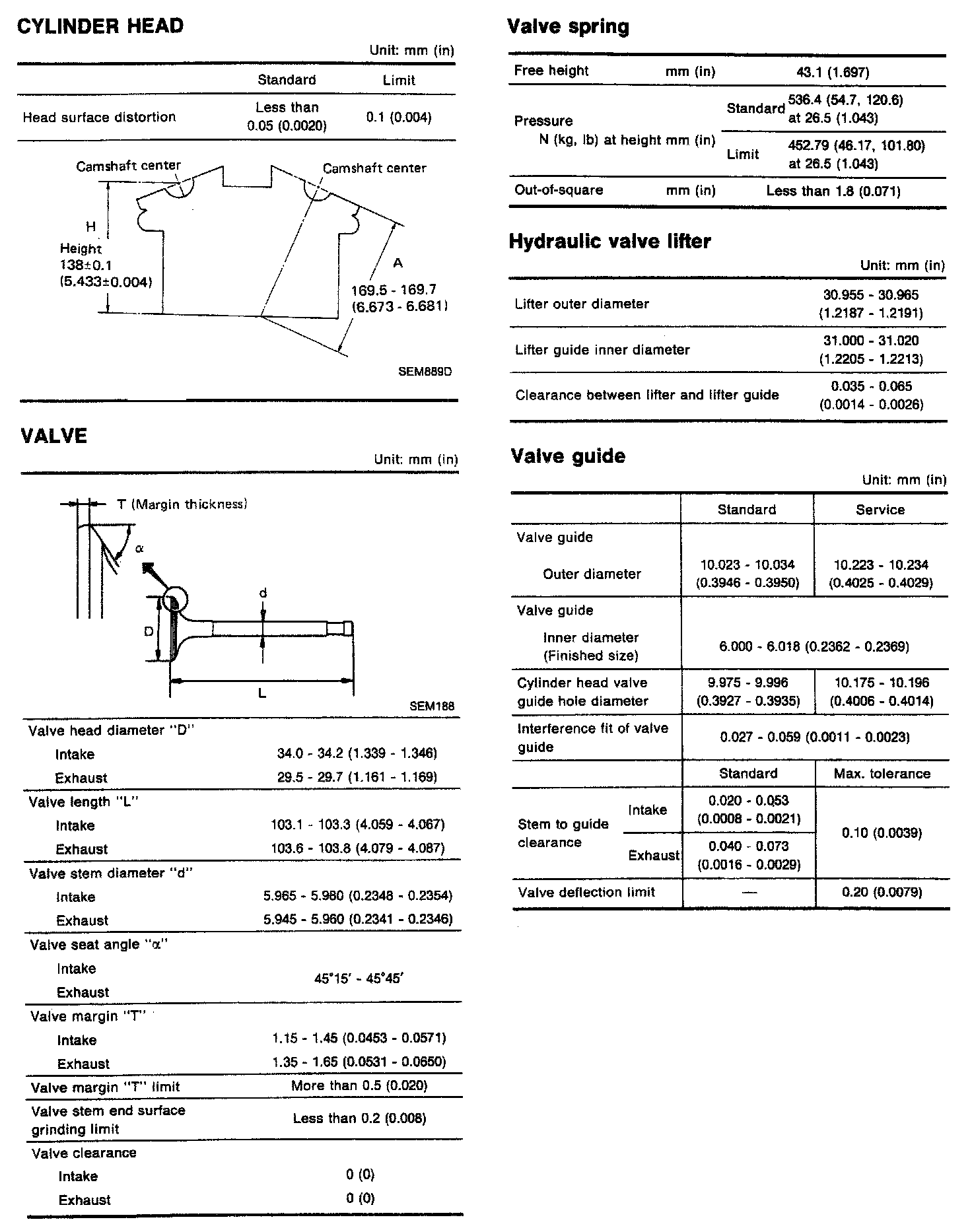

ENGINE SPECIFICATIONS

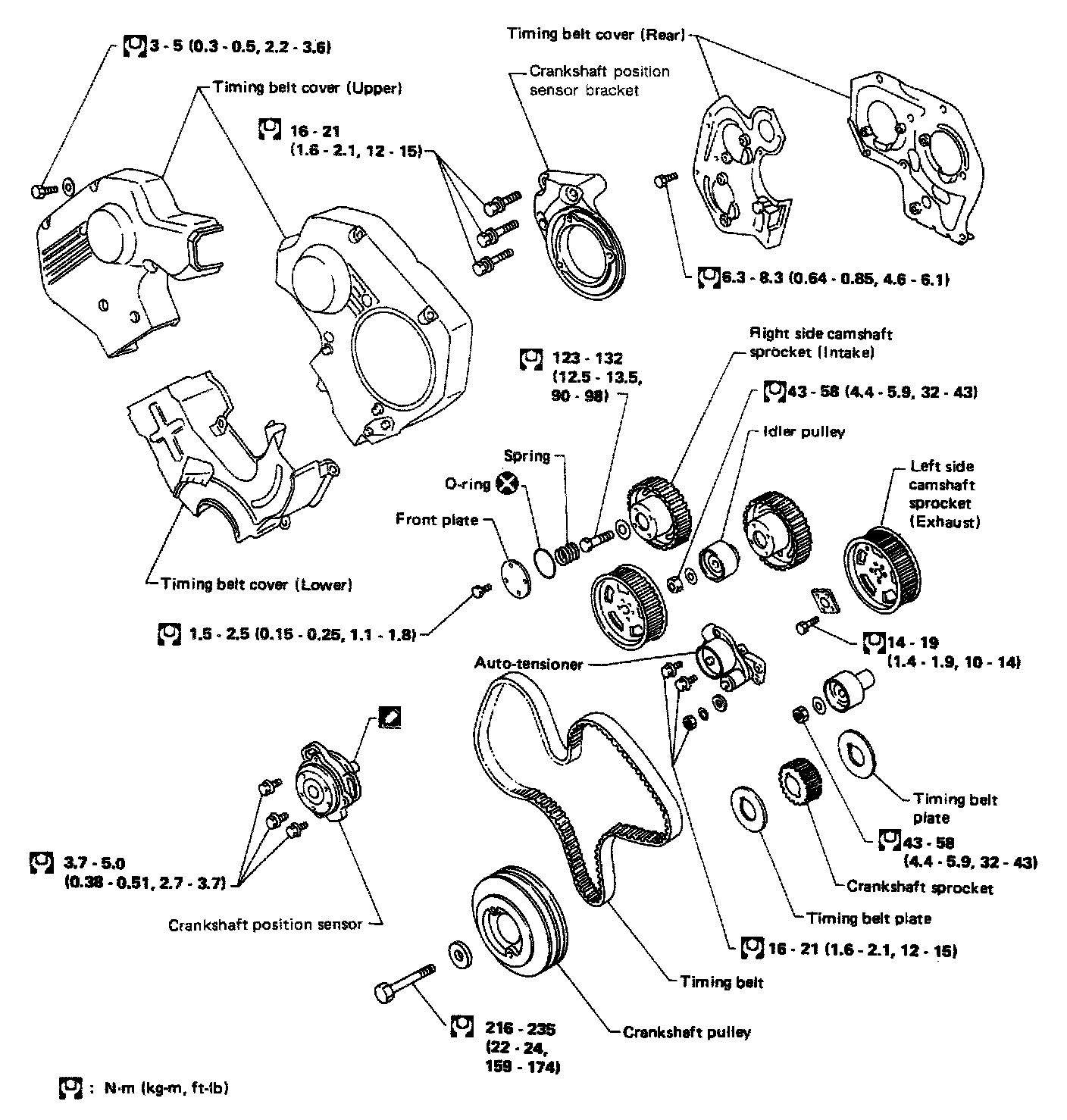

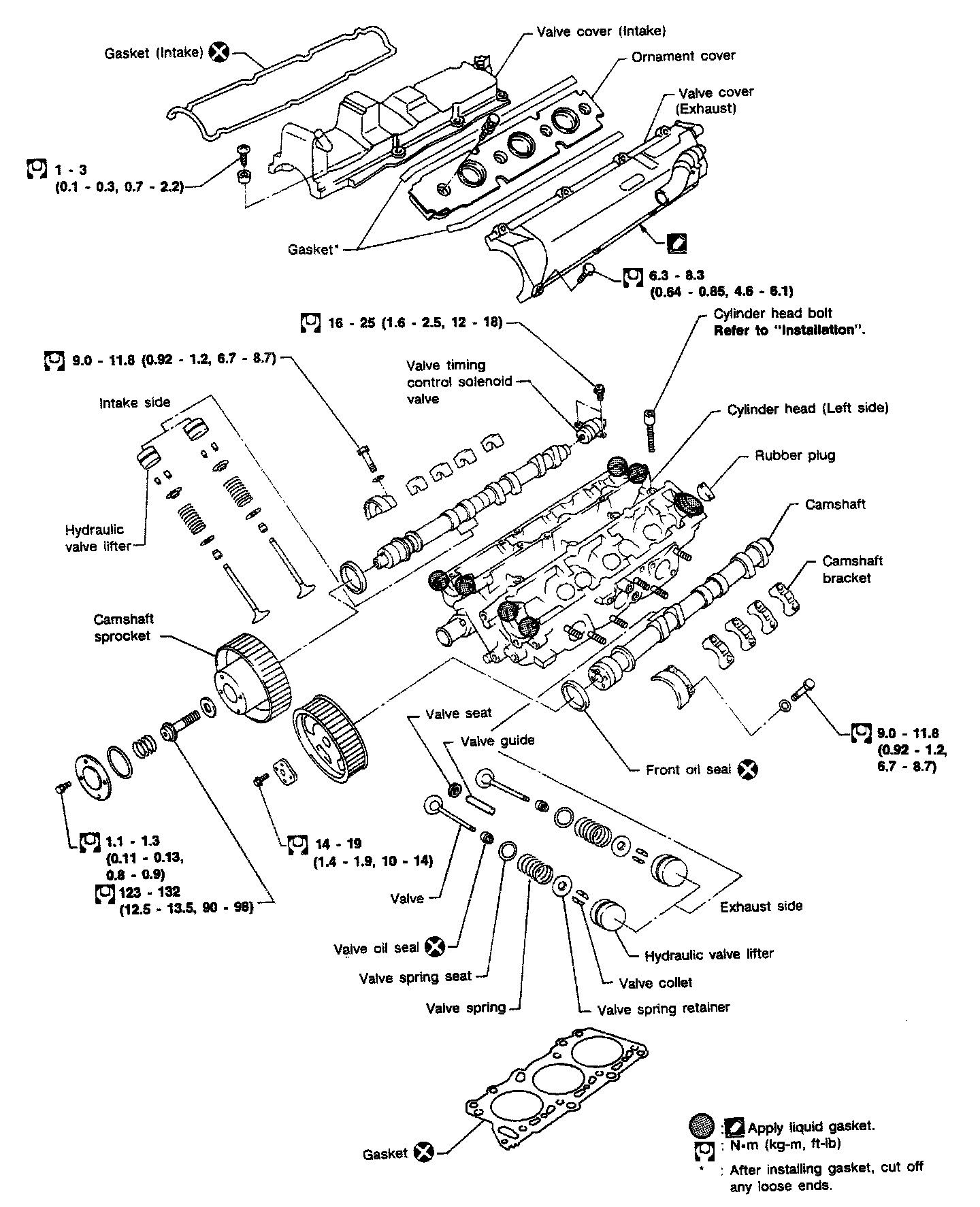

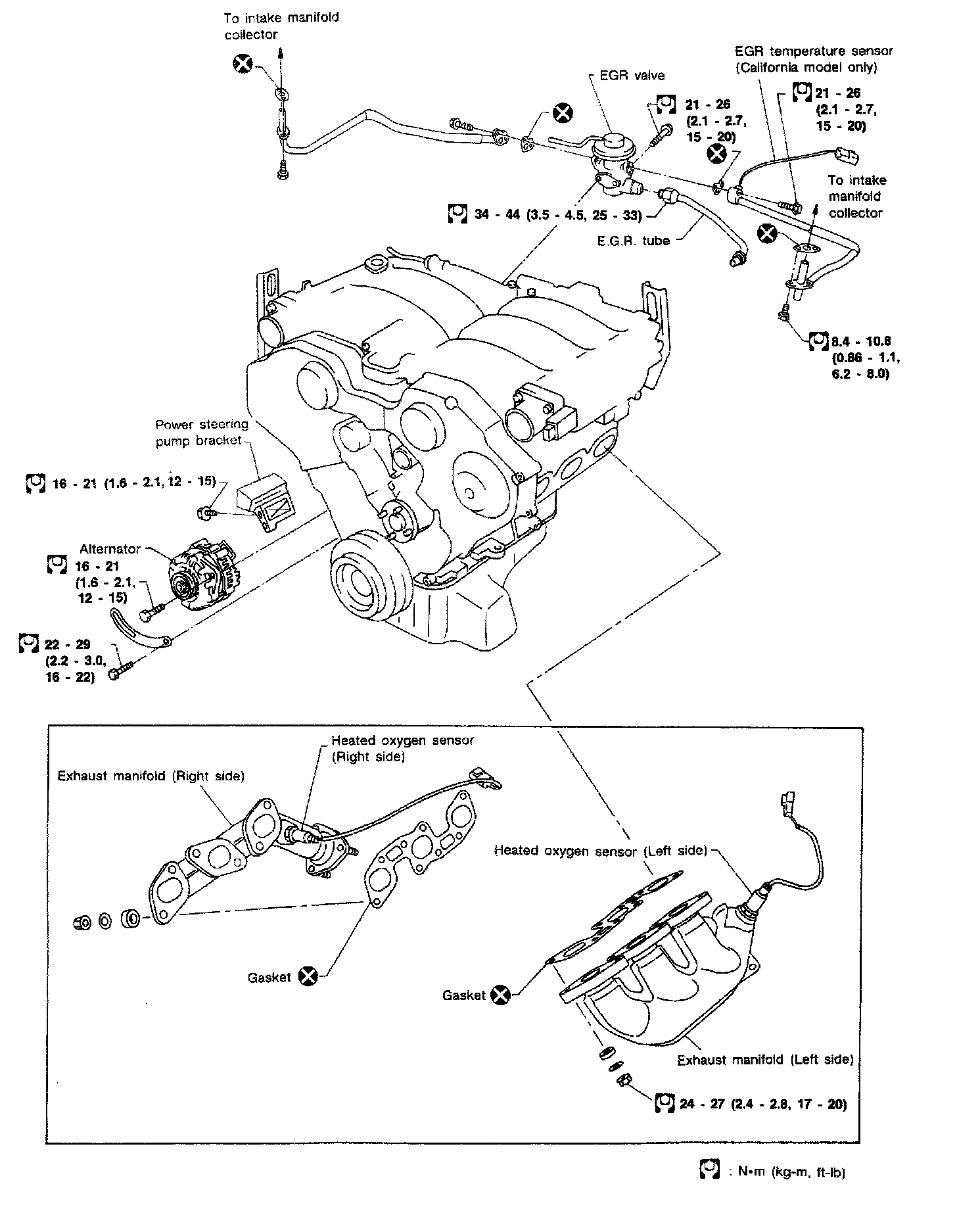

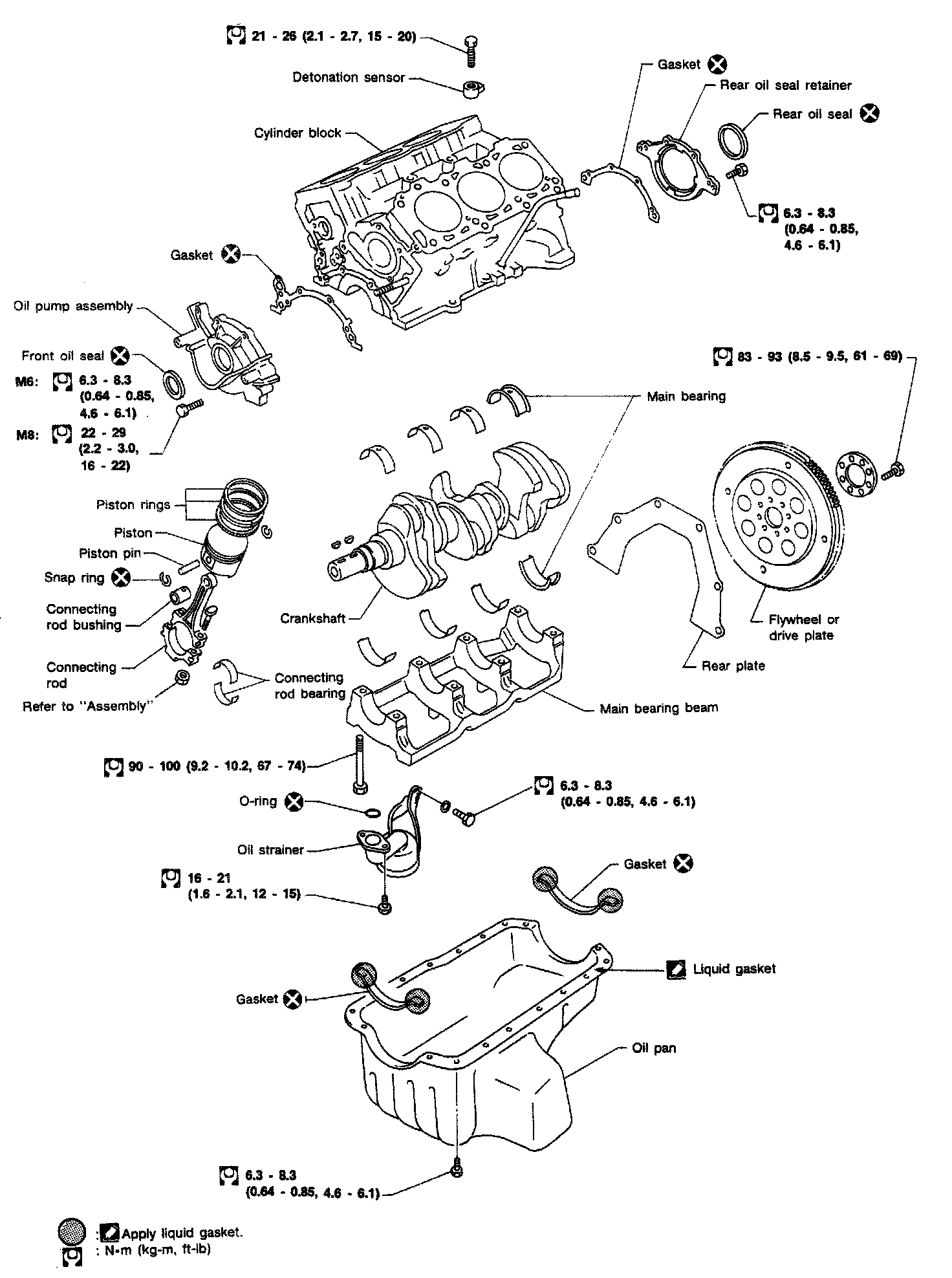

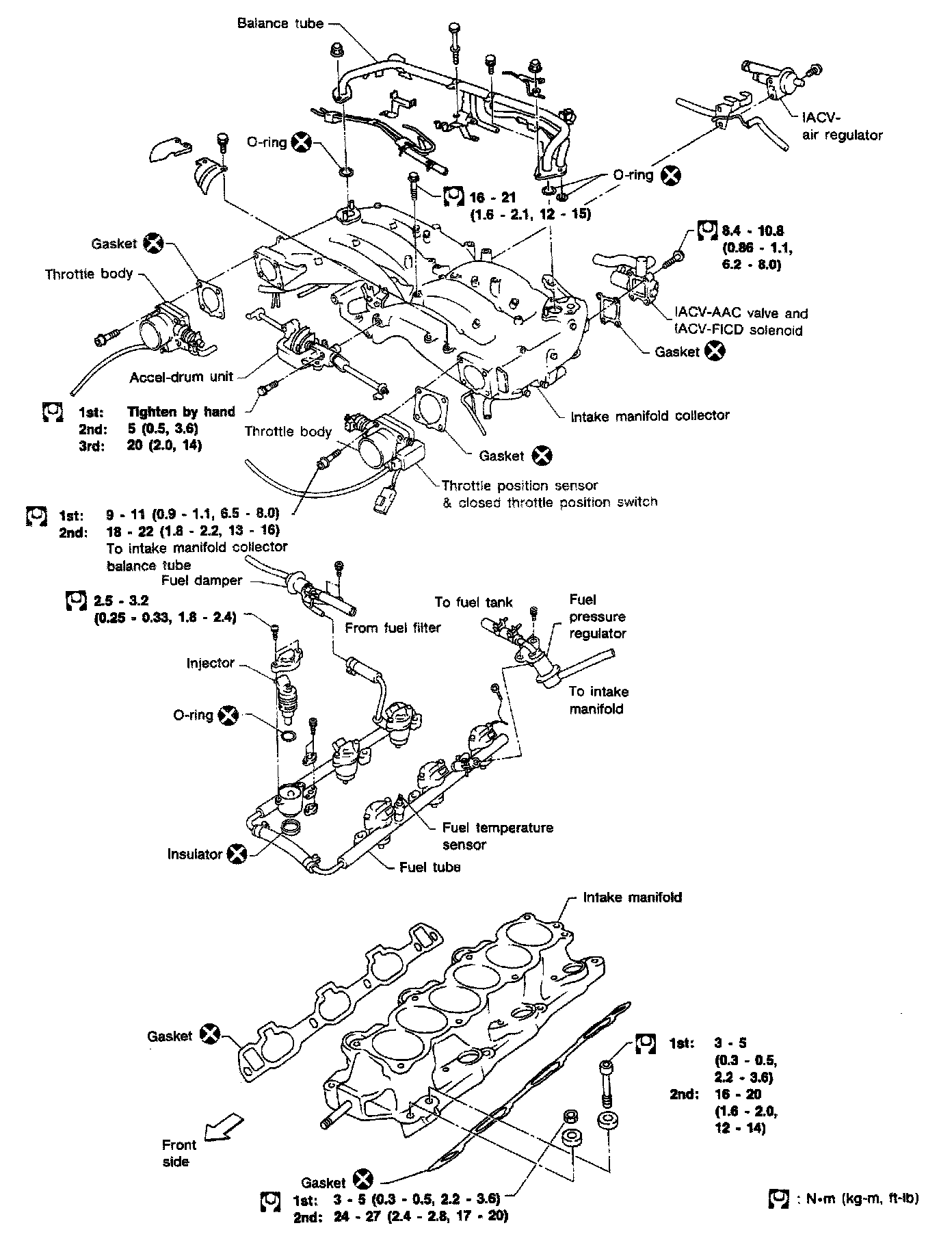

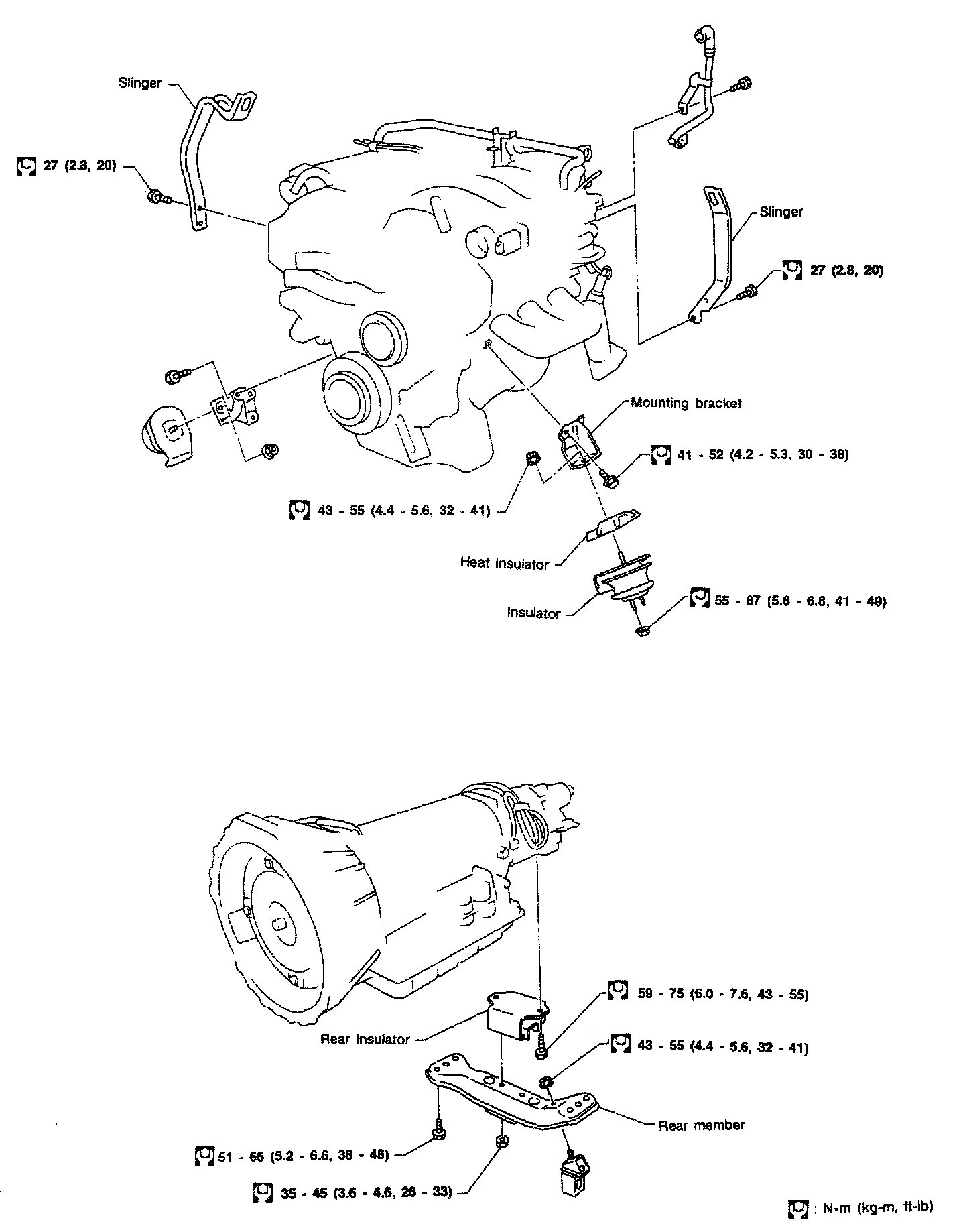

TIGHTENING SPECIFICATIONS

























CAMSHAFT TIGHTENING SEQUENCE





CYLINDER HEAD TIGHTENING SEQUENCE









MAIN BEARING TIGHTENING SEQUENCE





OIL PAN TIGHTENING SEQUENCE
