Diagnostic Procedure

Mass Air Flow Sensor (Not Self-Diagnostic Item):

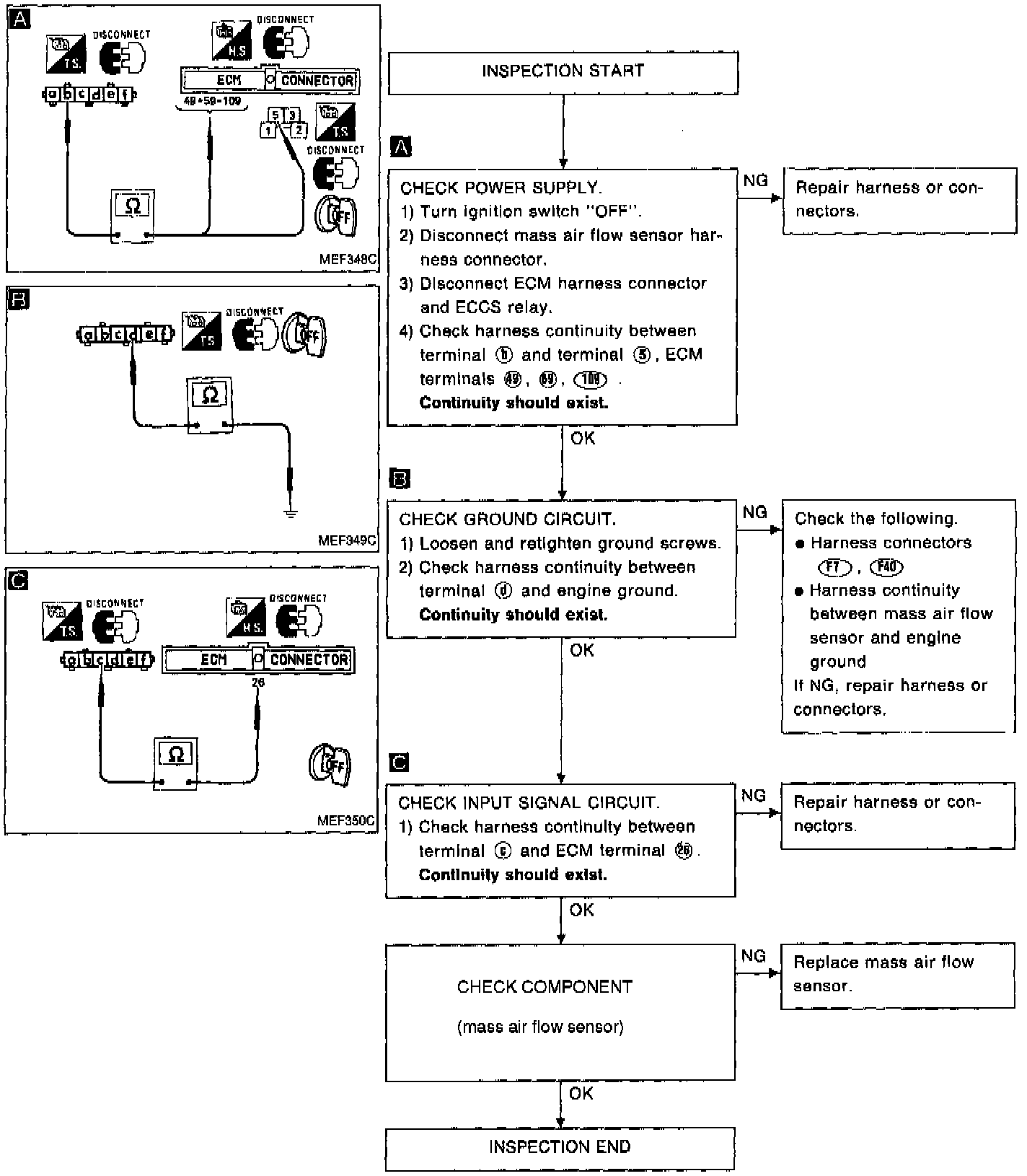

DIAGNOSTIC CHART


Circuit Diagram:

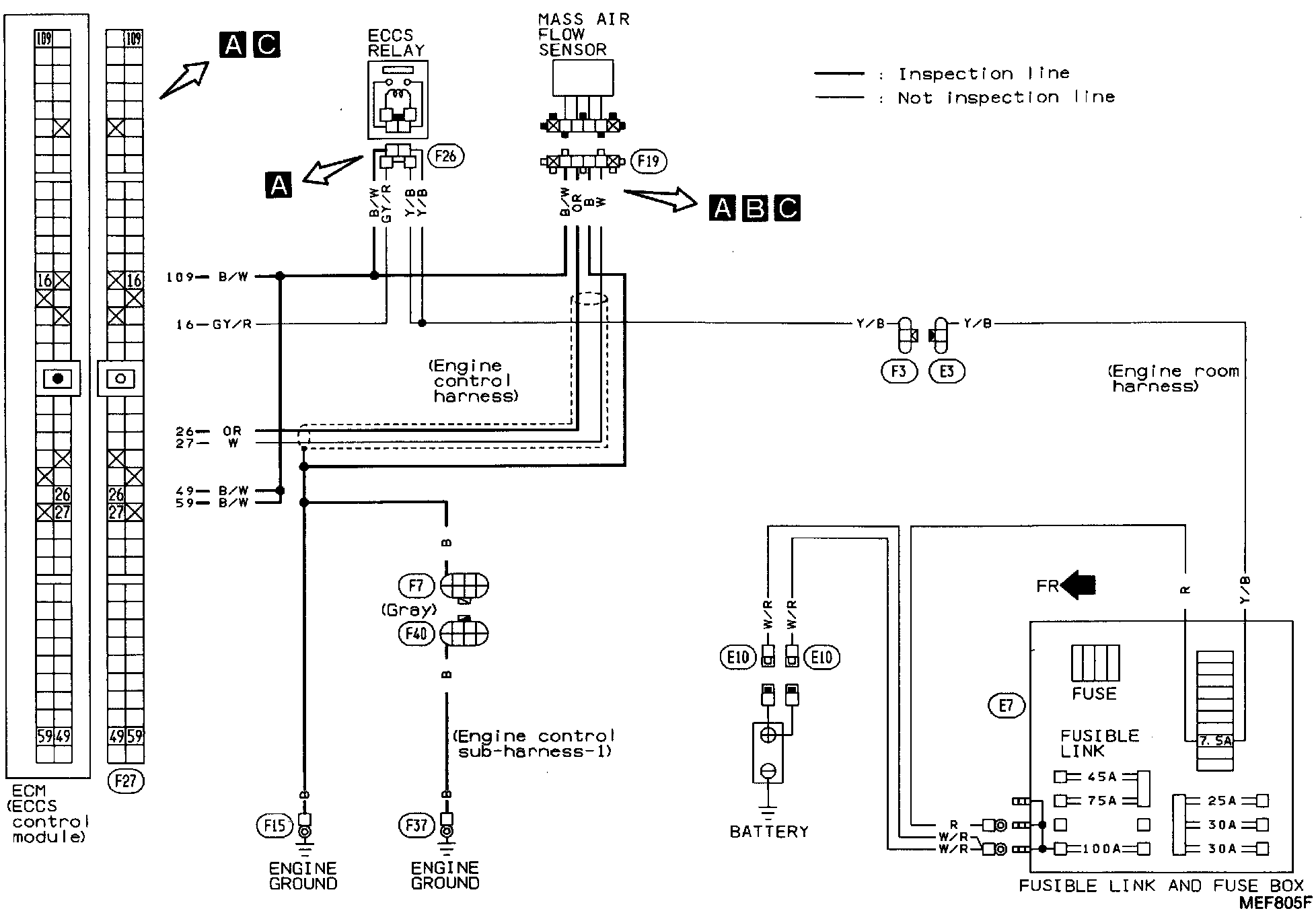

CIRCUIT DIAGRAM


Harness Layout:











HARNESS LAYOUT
