DTC 54 - Automatic Transmission Signal
Fig 1: Code 54 Schematic - Automatic Transmission Signal
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 54 Connector Location - Automatic Transmission Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

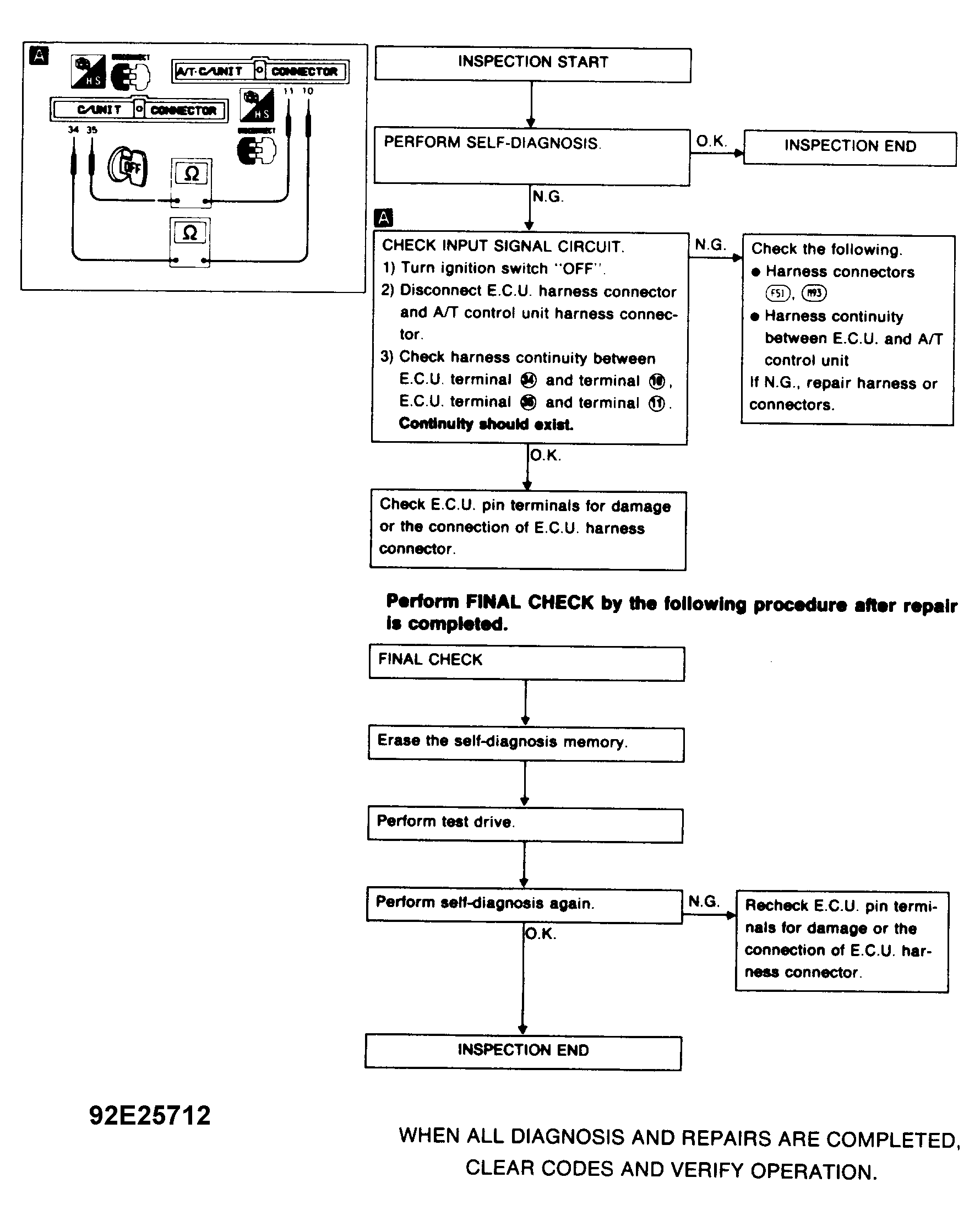

Fig 3: Code 54 Flow Chart - Automatic Transmission Signal
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
